CRUISE CONTROL SYSTEM

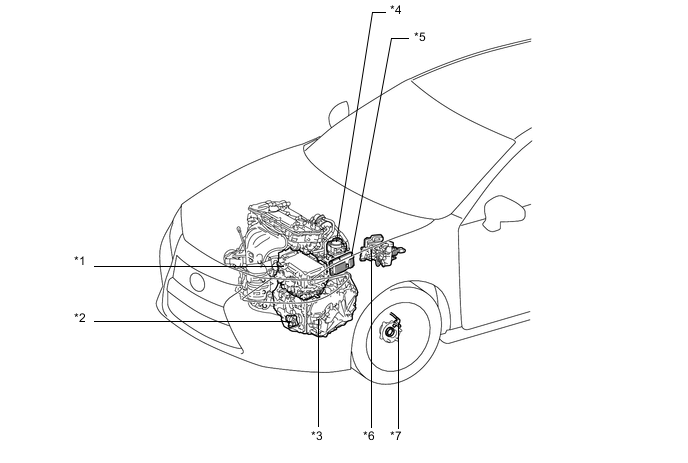

| *1 | Inverter with Converter Assembly - MG ECU |
*2 | Shift Lever Position Sensor |
| *3 | Hybrid Vehicle Transaxle Assembly - MG2 |
*4 | Throttle Body with Motor Assembly - Throttle Control Motor - Throttle Position Sensor |
| *5 | ECM | *6 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *7 | Speed Sensor | - | - |

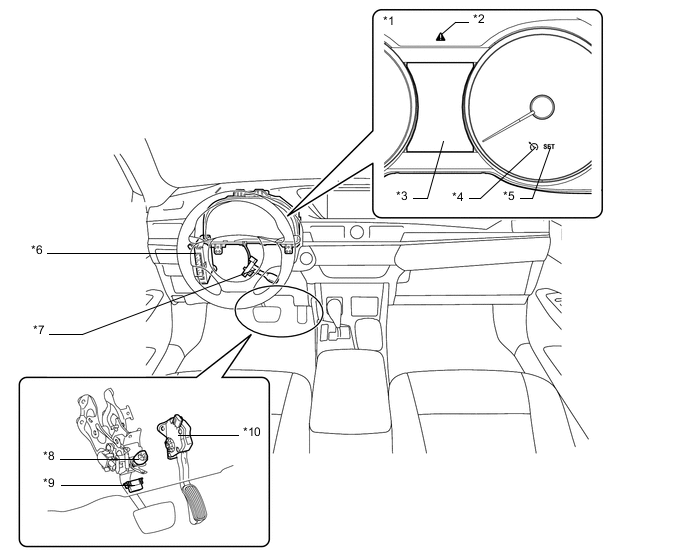

| *1 | Combination Meter Assembly | *2 | Master Warning Light |
| *3 | Multi-information Display | *4 | Cruise Control Indicator Light |
| *5 | Cruise Control SET Indicator Light | *6 | Power Management Control ECU |
| *7 | Cruise Control Switch | *8 | Stop Light Switch Assembly |
| *9 | DLC3 | *10 | Accelerator Pedal Sensor Assembly |
