AUDIO AND VISUAL SYSTEM PARTS LOCATION

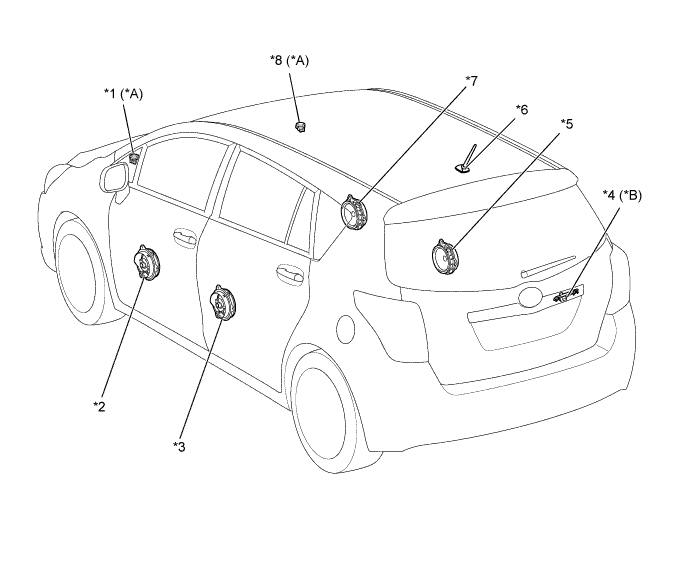

| *A | Models with 6-speaker System | *B | Models with Monitor System |
| *1 | Front No. 2 Speaker Assembly LH | *2 | Front No. 1 Speaker Assembly LH |
| *3 | Rear Speaker Assembly LH | *4 | Rear Television Camera Assembly |
| *5 | Rear Speaker Assembly RH | *6 | Amplifier Antenna Assembly |
| *7 | Front No. 1 Speaker Assembly RH | *8 | Front No. 2 Speaker Assembly RH |

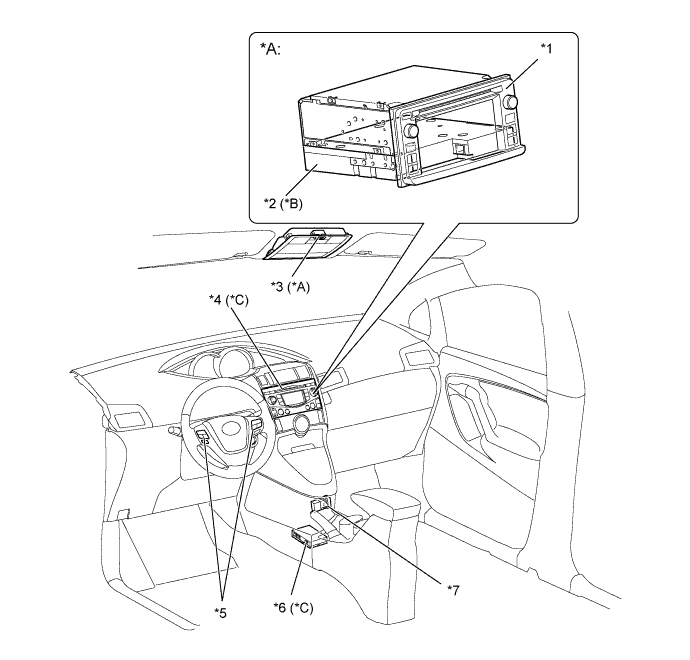

| *A | Models with Radio and Display Receiver Assembly | *B | Models with Extension Module Assembly |
| *C | Models with Radio Receiver Assembly | - | - |
| *1 | Radio and Display Receiver Assembly | *2 | Extension Module Assembly |
| *3 | Map Light Assembly - Microphone Assembly |
*4 | Radio Receiver Assembly |
| *5 | Steering Pad Switch Assembly | *6 | Multi-media Interface ECU |
| *7 | No. 1 Stereo Jack Adapter Assembly | - | - |
