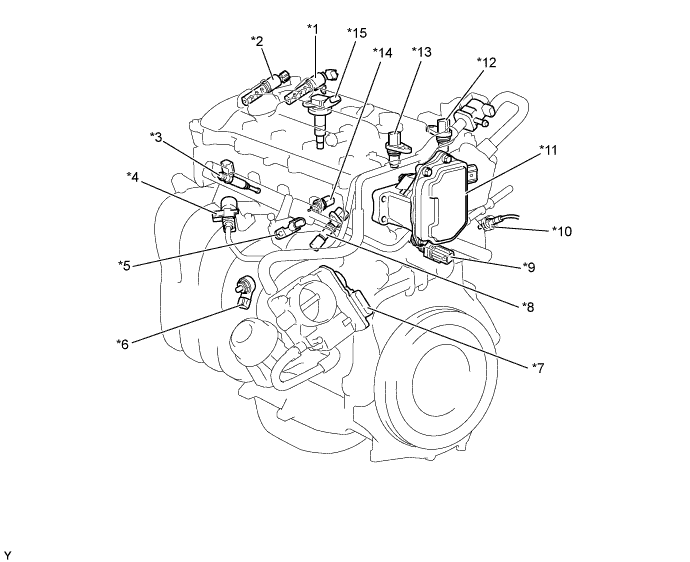

| *1 |
Camshaft Timing Oil Control Valve Assembly (Exhaust) |
*2 |
Camshaft Timing Oil Control Valve Assembly (Intake) |
| *3 |
Fuel Injector Assembly |
*4 |
Duty Vacuum Switching Valve (VSV for ACIS) |
| *5 |
E.F.I. Vacuum Sensor Assembly |
*6 |
Knock Control Sensor |
| *7 |
Throttle Body Assembly (Throttle Control Motor and Throttle Position Sensor) |
*8 |
Crank Position Sensor |
| *9 |
E.F.I. Engine Coolant Temperature Sensor |
*10 |
Air Fuel Ratio Sensor (Bank 1, Sensor 1) |
| *11 |
Continuously Variable Valve Lift Controller Assembly |
*12 |
No. 1 Crank Position Sensor (Exhaust Camshaft Position Sensor) |
| *13 |
No. 1 Crank Position Sensor (Intake Camshaft Position Sensor) |
*14 |
Engine Oil Temperature Sensor |
| *15 |
Ignition Coil Assembly |
- |
- |
