SEAT HEATER SYSTEM DETAILS


  1. FUNCTION


    1. Heater Function


      1. By turning the seat heater switch clockwise from the off position, the seat heater output can be adjusted to 3 levels.

      2. The indicator light illuminates green to indicate that the heating function is operating.

  2. CONSTRUCTION

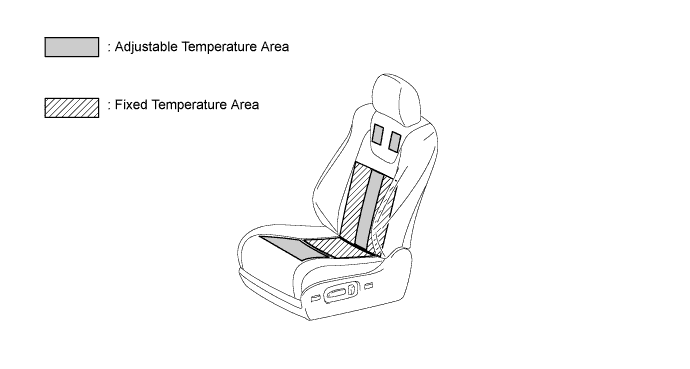

    1. The seat heater has fixed temperature areas and adjustable temperature areas. The heating temperature of each area is as follows:


      • Fixed temperature area: 36°C (96.8°F)

      • Adjustable temperature area: 36°C (96.8°F) or more

        A019WGSE01
