POWER SEAT CONTROL SYSTEM GENERAL


  1. OUTLINE


    1. The power seat control systems are available for driver and front passenger seats.

    2. The driver and front passenger seat has the memory function that can store and recall 3 different driver's settings.

      Driver Seat and Front Passenger Seat Variation Memory Function
      Adjustment Function Driver Seat Front Passenger Seat
      8-way - -
      X -
      10-way X X

      • X: Equipped

      • -: Not equipped

    3. This system is controlled by the position control ECU incorporated into the seat switches, which are mounted on the driver seat.

  2. SPECIFICATION

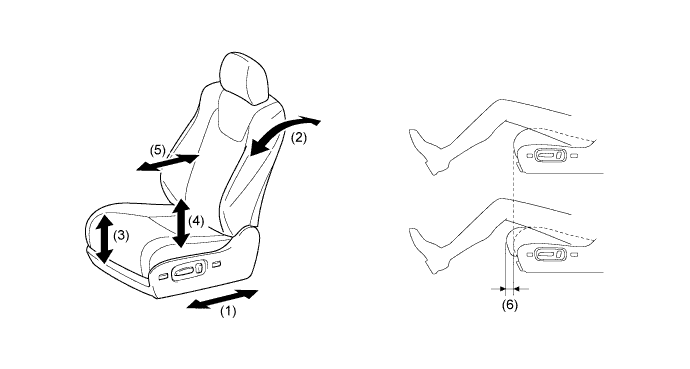

    1. The power seat control system has the following adjustment functions and stroke:

      Function Stroke Driver Seat and Front Passenger Seat
      8-way 10-way
      (1) Seat Slide 260 mm (10.23 in.) X X
      (2) Recline 78 degrees X X
      (3) Front Tilt 10 degrees X X
      (4) Seat Lifter 47 mm (1.85 in.) X X
      (5) Lumbar Support 35 mm (1.38 in.) X X
      (6) Leg Support* 21 mm (0.83 in.) - X

      • X: Equipped

      • -: Not equipped

      • *: Models with Leg Support

        A019WRCE01
