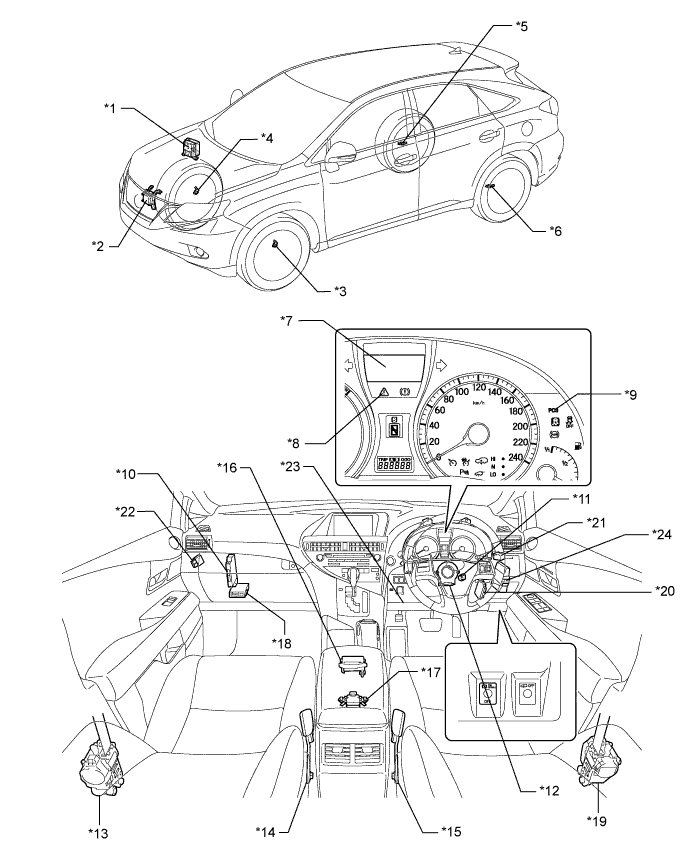

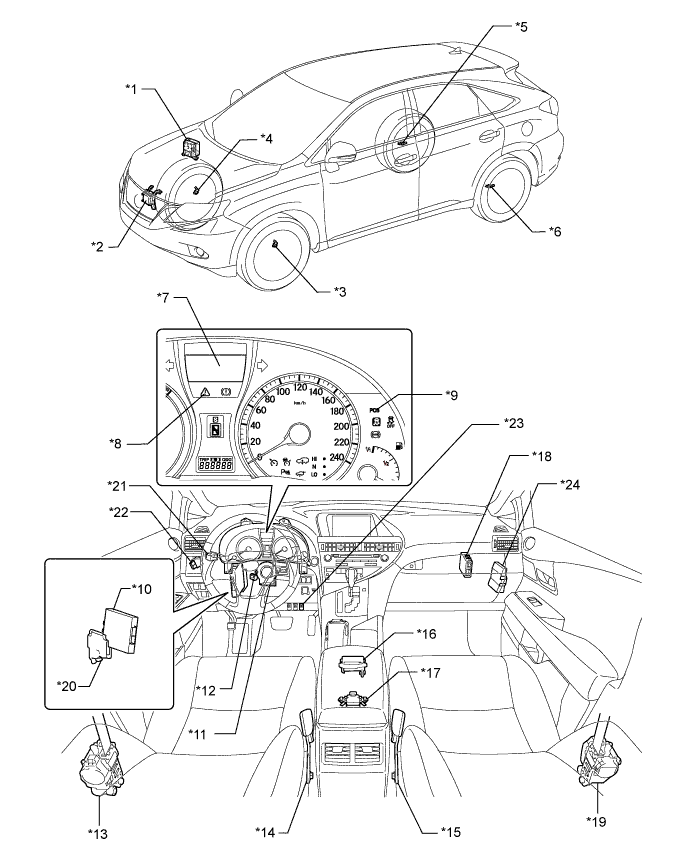

PRE-CRASH SAFETY SYSTEM PARTS LOCATION
| *1 | Brake Actuator | *2 | Millimeter Wave Radar Sensor |
| *3 | Front Speed Sensor LH | *4 | Front Speed Sensor RH |
| *5 | Rear Speed Sensor RH | *6 | Rear Speed Sensor LH |
| *7 | Multi-information Display | *8 | Master Warning Light |
| *9 | PCS Warning Light | *10 | Power Management Control ECU |
| *11 | Stop Light Switch Assembly | *12 | Steering Angle Sensor |
| *13 | Front Seat Outer Belt LH | *14 | Front Seat Inner Belt LH |
| *15 | Front Seat Inner Belt RH | *16 | Center Airbag Sensor Assembly |
| *17 | Yawrate Sensor | *18 | Seat Belt Control ECU |
| *19 | Front Seat Outer Belt RH | *20 | Driving Support ECU Assembly |
| *21 | Skid Control Buzzer Assembly | *22 | Stop Light Control Relay Assembly |
| *23 | Pre-crash Brake OFF Switch (Models with Pre-crash Brake) |
*24 | Skid Control ECU |
