AIRBAG SYSTEM GENERAL


  1. OUTLINE


    1. The SRS driver and front passenger airbags are used as supplements to the seat belts to help reduce impact to the head and chest of the driver and front passenger in the event of a frontal collision.

    2. The SRS knee airbags are used as supplements to the seat belt to help restrain the occupant's lower body (mainly knees), enhancing the effectiveness of occupant protection.

    3. The SRS side airbags are used in the event of a side collision to help reduce the impact to the chests of the driver, front passenger and rear passenger.

    4. The SRS curtain shield airbags are used in the event of a side or side rear collision to help reduce the impact to the head of the front passenger or rear passenger.

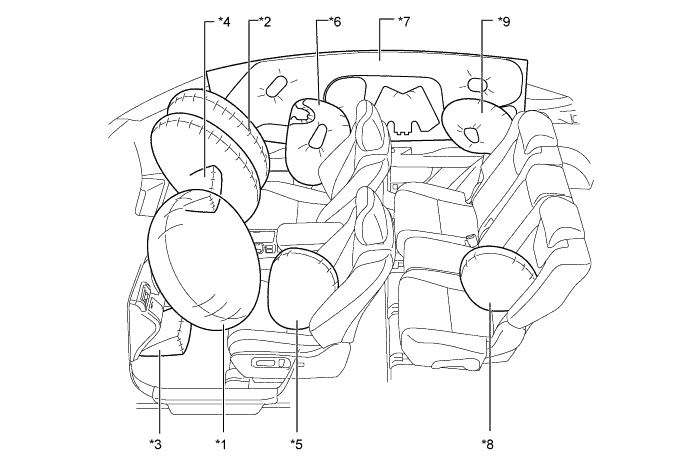

      A019WL6E01
      Text in Illustration
      *1 Steering Pad (Driver Side Squib) *2 Front Passenger Side Airbag Assembly
      *3 Driver Side Knee Airbag Assembly *4 Front Passenger Side Knee Airbag Assembly
      *5 Front Seat Side Airbag Assembly LH *6 Front Seat Side Airbag Assembly RH
      *7 Curtain Shield Airbag Assembly RH *8 Rear Seat Side Airbag Assembly LH
      *9 Rear Seat Side Airbag Assembly RH - -

  2. MAJOR DIFFERENCE


    1. The new models have been modified from the previous models as shown below:


      1. The design of the steering pad (driver side squib) has been changed.
