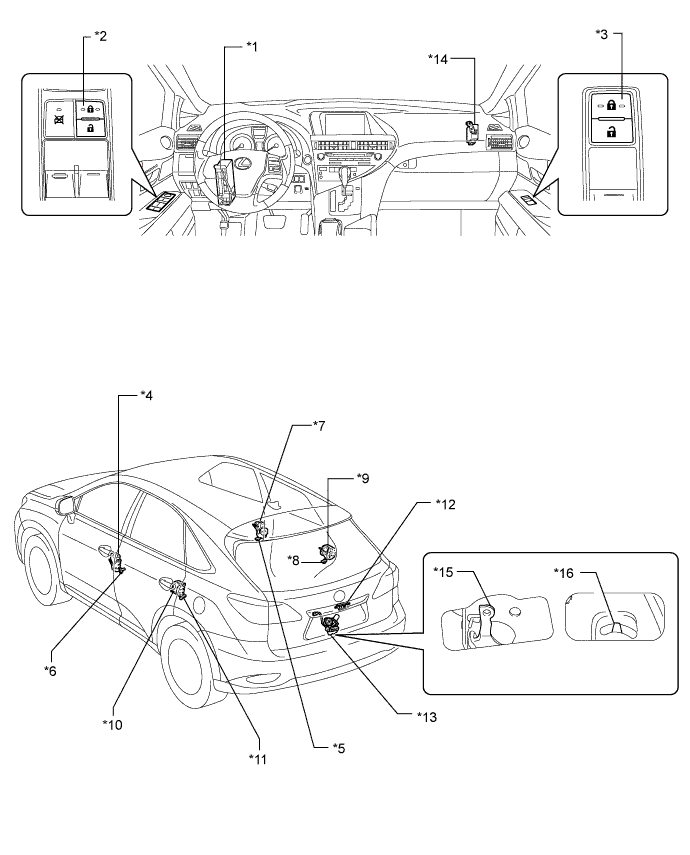

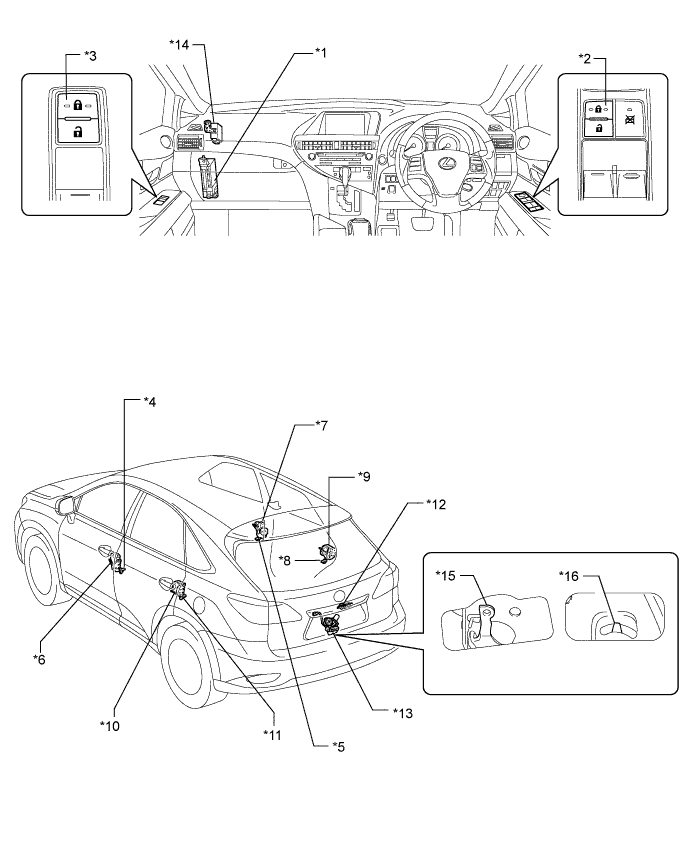

POWER DOOR LOCK CONTROL SYSTEM PARTS LOCATION
| *1 | Instrument Panel Junction Block - Main Body ECU (Multiplex Network Body ECU) |
*2 | Multiplex Network Master Switch Assembly - Door Control Switch |
| *3 | Power Window Regulator Switch - Door Control Switch |
*4 | Front Door Courtesy Switch Assembly LH |
| *5 | Front Door Courtesy Switch Assembly RH | *6 | Front Door Lock Assembly LH |
| *7 | Front Door Lock Assembly RH | *8 | Rear Door Courtesy Switch Assembly RH |
| *9 | Rear Door Lock Assembly RH | *10 | Rear Door Lock Assembly LH |
| *11 | Rear Door Courtesy Switch Assembly LH | *12 | Back Door Opener Switch |
| *13 | Back Door Lock Assembly | *14 | Double Lock Door Control Relay Assembly |
| *15 | Open Lever (Models with Power Back Door) | *16 | Open Lever (Models without Power Back Door) |
