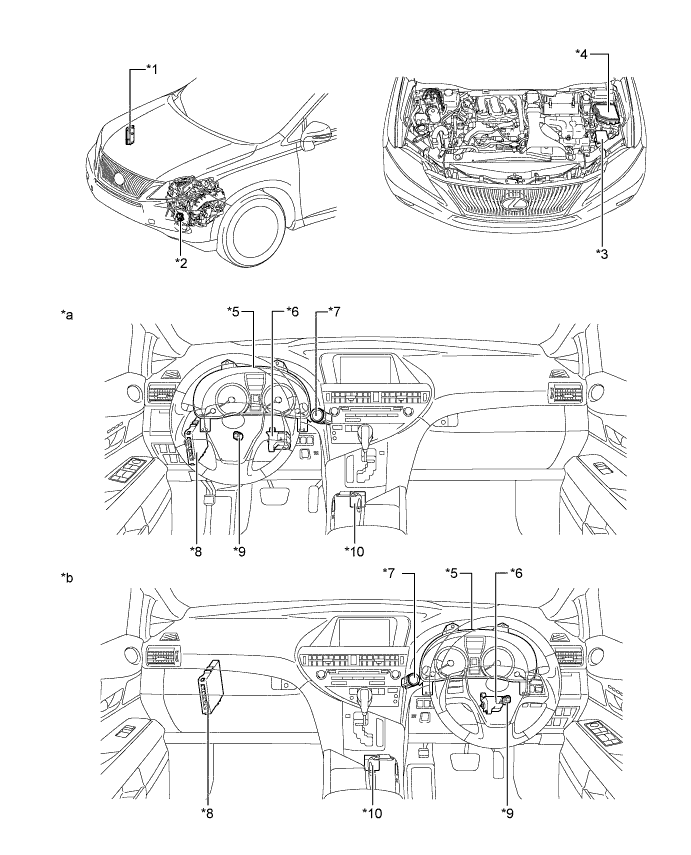

ELECTRIC POWER CONTROL SYSTEM PARTS LOCATION
| *a | LHD Models: | *b | RHD Models: |
| *1 | ECM | *2 | Shift lever Position sensor |
| *3 | Engine Room Relay Block - IGCT MAIN Relay |
*4 | Engine Room Junction Block - ACC Relay - IG1 Relay - IG2 Relay |
| *5 | Combination Meter Assembly | *6 | Steering Lock Actuator Assembly (Steering Lock ECU) |
| *7 | Power Switch | *8 | Power Management Control ECU |
| *9 | Stop Light Switch | *10 | Shift Lock Control ECU |
