ELECTRIC POWER CONTROL SYSTEM GENERAL


  1. OUTLINE


    1. The electric power control system is provided to ensure a constant power supply to vehicle electrical systems

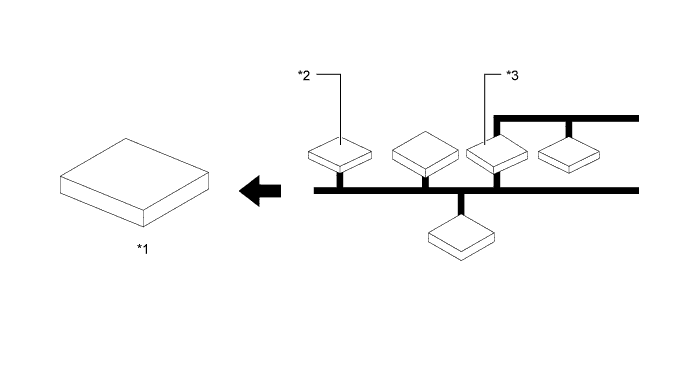

    2. The hybrid control, electric power control system, a gateway function and power source control, which used to be controlled by separate ECUs, into the power management control ECU, realizing simplified systems and ensured quality.

      A019WC7E04
      Text in Illustration
      *1 Power Management Control ECU *2 Power Source Control
      *3 Gateway Function - -
