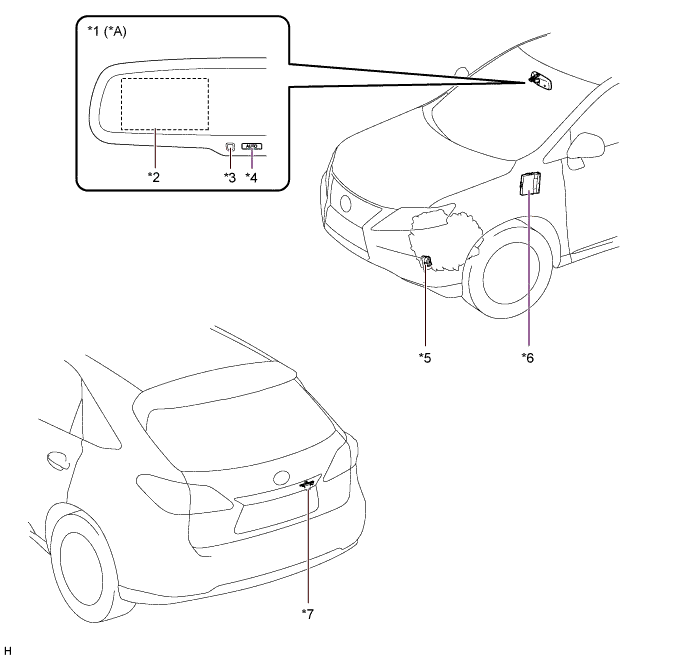

MONITOR SYSTEM PARTS LOCATION
| *A | Models without Multi-display | - | - |
| *1 | Inner Rear View Mirror Assembly | *2 | Display |
| *3 | LED | *4 | AUTO (Display On/Off) Switch |
| *5 | Shift Lever Position Sensor | *6 | Power Management Control ECU |
| *7 | Rear Television Camera Assembly | - | - |

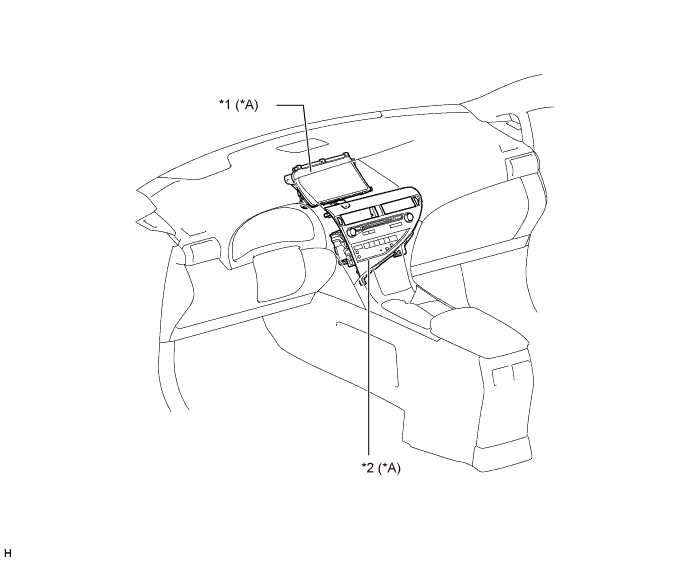

| *A | Models with Lexus Display Audio System | - | - |
| *1 | Multi-display Assembly - Multi-display |
*2 | Radio Receiver Assembly |
