PARKING ASSIST MONITOR SYSTEM PARTS LOCATION

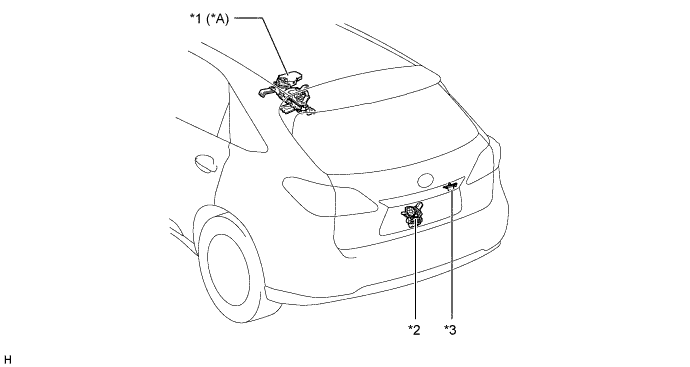

| *A | Models with Power Back Door System | - | - |
| *1 | Power Back Door Unit Assembly - Power Back Door ECU |
*2 | Back Door Lock Assembly - Back Door Courtesy Light Switch |
| *3 | Rear Television Camera Assembly | - | - |
| *A | Models with Side Parking Assist Monitor System | - | - |
| *1 | Shift Lever Position Sensor | *2 | Multiplex Network Master Switch Assembly - Outer Mirror Switch Assembly |
| *3 | Steering Pad Switch Assembly - Side Parking Assist Monitor Main Switch |
*4 | Side Television Camera Assembly |
| *5 | Power Management Control ECU | *6 | Multi-display Assembly |
| *7 | Parking Assist ECU | *8 | Skid Control ECU Assembly |
| *9 | Main Body ECU (Multiplex Network Body ECU) | *10 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
| *11 | Multi-media Module Receiver Assembly | - | - |

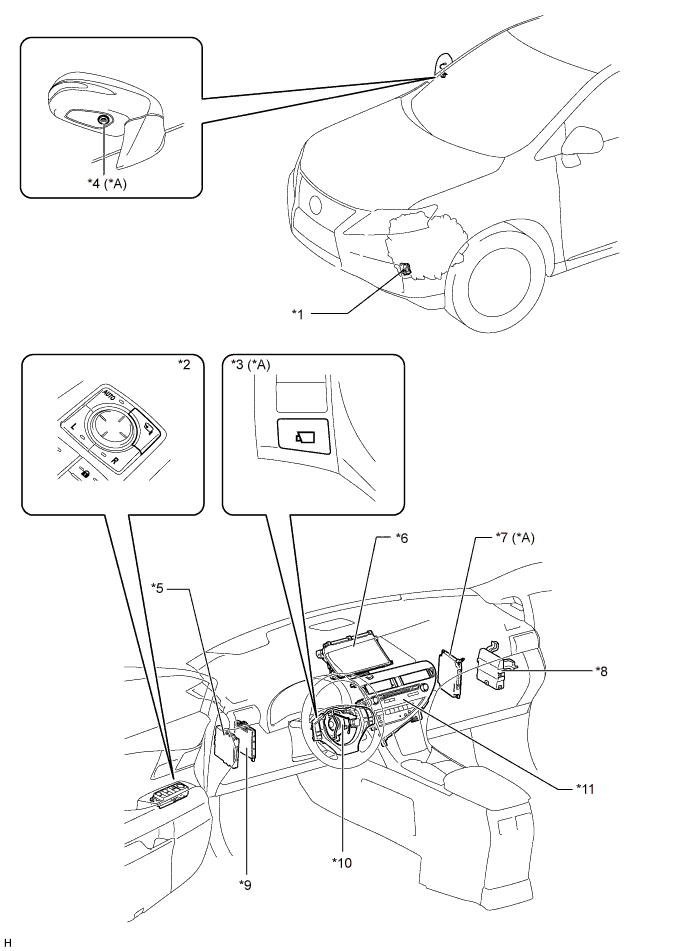

| *A | Models with Side Parking Assist Monitor System | - | - |
| *1 | Side Television Camera Assembly | *2 | Shift Lever Position Sensor |
| *3 | Steering Pad Switch Assembly - Side Parking Assist Monitor Main Switch |
*4 | Multiplex Network Master Switch Assembly - Outer Mirror Switch Assembly |
| *5 | Parking Assist ECU | *6 | Multi-display Assembly |
| *7 | Skid Control ECU Assembly | *8 | Power Management Control ECU |
| *9 | Main Body ECU (Multiplex Network Body ECU) | *10 | Multi-media Module Receiver Assembly |
| *11 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
- | - |
