LEXUS PARKING ASSIST-SENSOR SYSTEM PARTS LOCATION

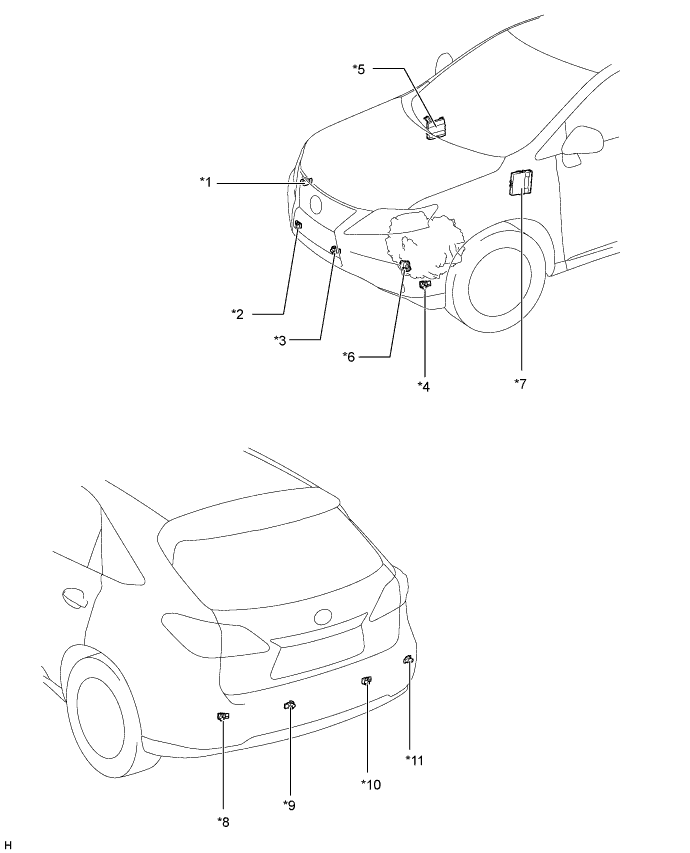

| *1 | No. 1 Ultrasonic Sensor (Front Corner RH) | *2 | No. 1 Ultrasonic Sensor (Front Center RH) |
| *3 | No. 1 Ultrasonic Sensor (Front Center LH) | *4 | No. 1 Ultrasonic Sensor (Front Corner LH) |
| *5 | Skid Control ECU Assembly | *6 | Shift Lever Position Sensor |
| *7 | Power Management Control ECU | *8 | No. 1 Ultrasonic Sensor (Rear Corner LH) |
| *9 | No. 1 Ultrasonic Sensor (Rear Center LH) | *10 | No. 1 Ultrasonic Sensor (Rear Center RH) |
| *11 | No. 1 Ultrasonic Sensor (Rear Corner RH) | - | - |
| *A | Models with Lexus Display Audio System | *B | Models with HDD Navigation System |
| *C | Models with Side Parking Assist Monitor System | *D | Models without Side Parking Assist Monitor System |

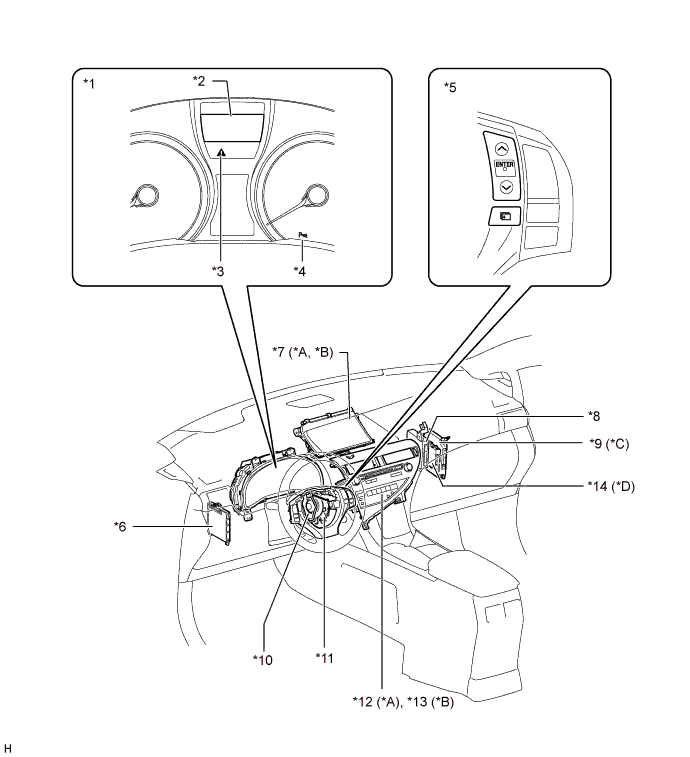

| *1 | Combination Meter Assembly | *2 | Multi-information Display |
| *3 | Master Warning Light | *4 | Clearance Sonar Indicator Light |
| *5 | Steering Pad Switch Assembly - Multi-information Switch |
*6 | Main Body ECU (Multiplex Network Body ECU) |
| *7 | Multi-display Assembly | *8 | Air Conditioning Amplifier Assembly |
| *9 | Parking Assist ECU | *10 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
| *11 | No. 1 Clearance Warning Buzzer | *12 | Radio Receiver Assembly |
| *13 | Multi-media Module Receiver Assembly | *14 | Clearance Warning ECU Assembly |
| *A | Models with Lexus Display Audio System | *B | Models with HDD Navigation System |
| *C | Models without Side Parking Assist Monitor System | *D | Models with Side Parking Assist Monitor System |

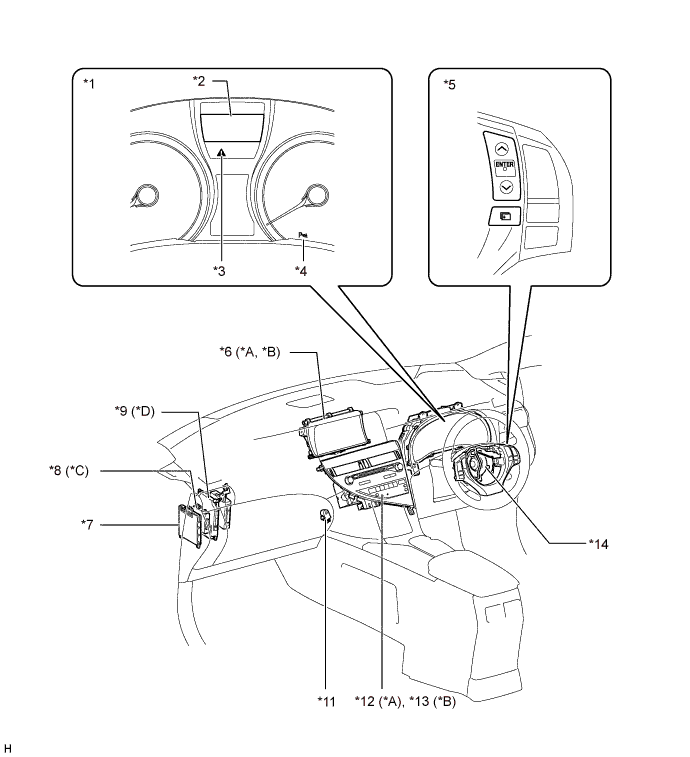

| *1 | Combination Meter Assembly | *2 | Multi-information Display |
| *3 | Master Warning Light | *4 | Clearance Sonar Indicator Light |
| *5 | Steering Pad Switch Assembly - Multi-information Switch |
*6 | Multi-display Assembly |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | Clearance Warning ECU Assembly |
| *9 | Parking Assist ECU | *10 | Air Conditioning Amplifier Assembly |
| *11 | No. 1 Clearance Warning Buzzer | *12 | Radio Receiver Assembly |
| *13 | Multi-media Module Receiver Assembly | *14 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
