G-BOOK SYSTEM DETAILS


  1. FUNCTION OF MAIN COMPONENTS


    1. G-BOOK System

      Component Function Type
      Cellular Phone Connection Telematics Transceiver Connection
      Bluetooth-compatible Cellular Phone Sends and receives the data and voice signals used for the G-BOOK service through a communication network. X -
      Telephone Microphone Sends the microphone voice signal to the multi-media module receiver assembly. X X

      • When the operator service is used: Sends the microphone voice signal to the multi-media module receiver assembly.

      • When an emergency call is made: Sends the microphone voice signal to the telematics transceiver (Data Communication Module).

      - X
      Navigation Antenna Assembly Receives GPS radio waves and sends them to the multi-media module receiver assembly. X X
      The vehicle location is transmitted together with the emergency call. - X
      Telephone Antenna Assembly Sends and receives the data and voice signals used for the G-BOOK service through a communication network. - X
      Emergency Call Switch

      When the emergency call switch is pressed, a switch signal is sent to the telematics transceiver (Data Communication Module).

      (When a manual maintenance check or manual emergency call is performed.)

      - X
      LED Indicator Light* Green
      • Turns on when the system is under a service contract and operating normally within the service area.

      • Blinks during a call or a maintenance check and turns off when the system is malfunctioning.

      - X
      Red
      • Turns on when the vehicle is not within the service area.

      • Blinks when an emergency call or maintenance check has been aborted.

      • Turns off when the system is operating normally.

      • Blinks when the mayday battery needs to be replaced.

      • Blinks when in diagnostic mode to indicate a DTC.

      - X
      Telematics Transceiver (Data Communication Module)
      • Uses the telephone antenna assembly to send and receive the data and voice signals used for the G-BOOK service through a communication network.


        • When the operator service is used: Sends a 'received voice signal' to the multi-media module receiver assembly.

        • When the operator service is used: Sends a 'sent voice signal' from the multi-media module receiver assembly to the telephone antenna assembly.

        • When an emergency call is made: Sends a 'received voice signal' to the vehicle speakers.

        • When an emergency call is made: Receives a 'sent voice signal' from the telephone microphone.

        • When an emergency call is made: Sends a mute signal to the amplifier assembly. (Mute function becomes active during the call.)

        • When an emergency call is made: Sends the location information to the G-BOOK center.

      - X
      Mayday Battery (Back-up battery)
      • The mayday battery is a lithium manganese dioxide non-rechargeable battery.

      • Supplies power to the telematics transceiver (Data Communication Module) to make an emergency call when the vehicle main battery is damaged in an accident.

      • Checks the battery condition and sends the self-diagnosis result to the multi-media module receiver assembly via the telematics transceiver (Data Communication Module).

      • When the telematics transceiver (Data Communication Module) receives a Diagnostic Trouble Code (DTC) indicating that the mayday battery is "malfunctioning", "deteriorated" or "not compatible", the telematics transceiver blinks the red LED indicator light to inform the driver. The telematics transceiver will also store a DTC.

      - X
      Multi-media Module Receiver Assembly
      • Uses a Bluetooth cellular phone to send and receive the data and voice signals used for the G-BOOK service through a communication network.

      • Sends and receives telematics data used for the G-BOOK service to and from the Bluetooth cellular phone using Bluetooth communication.


        • When the operator service is used: Sends the "sent voice signal" from the telephone microphone assembly to the Bluetooth cellular phone.

        • When the operator service is used: Sends the "received voice signal" from the Bluetooth cellular phone to the vehicle speakers.

      X -

      • Sends and receives the data used for the G-BOOK service to and from the telematics transceiver (Data Communication Module) using a telematics data signal.


        • When the operator service is used: Sends the 'sent voice signal' from the telephone microphone to the telematics transceiver (Data Communication Module).

        • When the operator service is used: Sends the 'received voice signal' from the telematics transceiver (Data Communication Module) to the amplifier assembly using a AVC-LAN communication signal.

        • Periodically sends the vehicle location information to the telematics transceiver (Data Communication Module).

        • When a warning comes on, the multi-media module receiver assembly receives a signal indicating the failure or malfunction of a system from the combination meter assembly via CAN communication and the telematics transceiver (Data Communication Module) sends it to the G-BOOK center.

        • When the theft deterrent system is activated, the telematics transceiver (Data Communication Module) sends the G-BOOK center information that the security horn has sounded.

      - X
      Main Body ECU (Multiplex Network Body ECU) Sends a "security horn sounding signal" to the multi-media module receiver assembly when the theft deterrent system is activated. - X
      Airbag Sensor Assembly

      Sends an activation signal to the telematics transceiver (Data Communication Module) when airbags deploy.

      (An automatic emergency call is made.)

      - X
      Stereo Component Amplifier Assembly Receives the 'received voice signal' sent from the multi-media module receiver assembly as a MOST signal and outputs it as sound from the vehicle speakers. (When the operator service is used.) X X

      Tech Tips


      • X: Used

      • -: Not used


      • *: The green and red indicator lights turn on for 5 seconds immediately after the power switch is turned on (IG).

  2. FUNCTION


    1. Emergency Call Service


      1. The emergency call service automatically makes a call to a G-BOOK center operator in the event of an accident, such as one that makes airbags deploy, in order to support prompt attendance by emergency personnel.

      2. In the event of trouble such as an accident or sudden illness, the telematics transceiver (Data Communication Module) can be used to send the emergency call center the voice signal, location information and the registered user information.

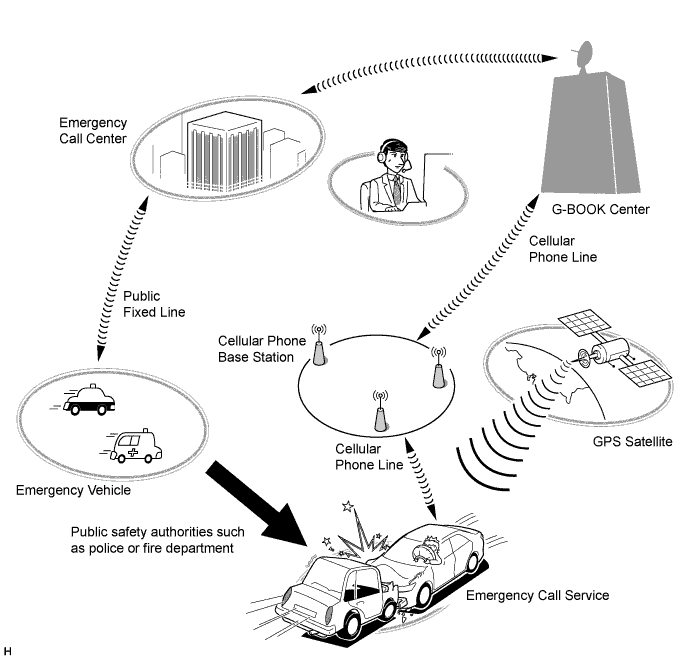

        A019WEGE01
      3. The emergency call service can be used either manually or automatically to contact the G-BOOK center.

        Call Method Operation Condition
        Automatic Call An automatic call is made in the event of an accident, such as one that makes airbags deploy. The call occurs regardless of the condition of the occupants.
        Manual Call

        In the event of a sudden illness or an accident that does not cause the airbags to deploy, a manual call can be made by pressing the emergency call switch in the overhead console.

        (To press the emergency call switch, the emergency call switch cover needs to be removed.)

      4. The emergency call service operation and contract conditions can be confirmed by accessing the G-BOOK center and performing the following maintenance checks.

        Maintenance Check Outline
        Automatic Maintenance Check The telematics transceiver (Data Communication Module) automatically and periodically accesses the emergency call center to confirm if the user is still registered.
        Manual Maintenance Check The user can press the emergency call switch for 10 seconds or more while the green and red indicator lights are on immediately after the power switch is turned on (IG) to access the G-BOOK center and confirm that they are still registered.

        Tech Tips

        In the following cases, the emergency call service may not be available or the service quality may suffer.


        • The G-BOOK online service has not been established or the first manual maintenance check has not been completed.

        • Communication is interrupted due to a malfunction of the telematics transceiver (Data Communication Module) or any other related device.

        • The location cannot be determined.

        • Communication is interrupted due to a service provider system malfunction.

        • Communication problems originate in the communication network used for the emergency call system.

        • The emergency call service is suspended or halted due to emergency call provider reasons.

        • Although a manual call is made, the situation cannot be confirmed because the user cannot respond to questions from the G-BOOK center.

    2. Theft Tracking Service


      1. The theft tracking service notifies the G-BOOK center that the alarm has operated when the theft deterrent system is activated.

      2. The G-BOOK center makes a call to the user to notify them that the alarm has operated. If the call cannot get thorough, the G-BOOK center sends a short message service (SMS) message.

      3. In the event of a theft, the vehicle location can be tracked as requested by the user. If requested by the user, a G-BOOK operator asks the authorities to find the stolen vehicle and take the case under their control.

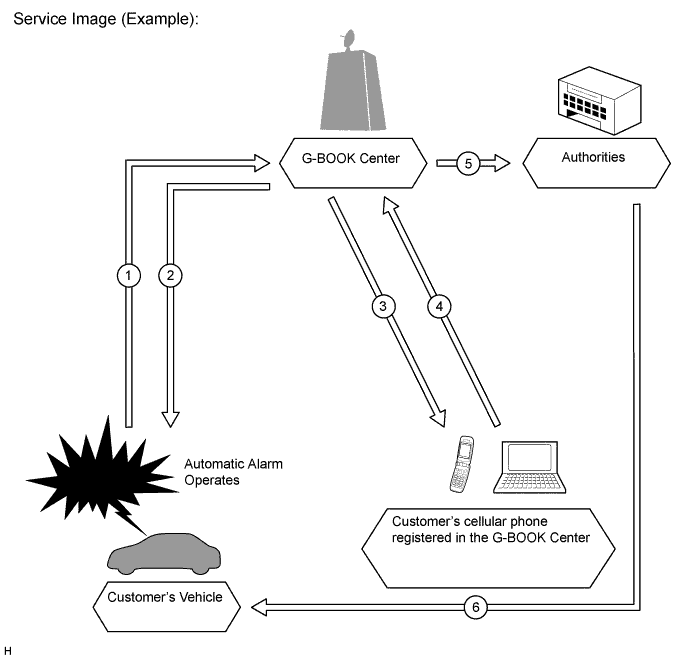

        A019WEUE01
        No. Process of alarm notification
        1 Trouble occurs and the automatic alarm operates.
        2 The vehicle location is confirmed.
        3 The user is notified about the trouble by a call. If the call cannot get through, the user is notified by a short message service (SMS) message.
        4 The user makes a request.
        5 A call-out is made to the authorities.
        6 The authorities respond to the scene.
    3. Remote Maintenance Service


      1. Remote maintenance mail and warning notifications are provided as the remote maintenance service.

        Contents Outline
        Remote Maintenance Mail
        • The remote maintenance mail is sent by the telematics transceiver (Data Communication Module) to the G-BOOK center to provide information about the condition of the vehicle.

        • The G-BOOK center then notifies the vehicle user about the inspection timing and maintenance notice.

        Warning Notification
        • The warning notification is a signal indicating a failure or malfunction of systems, information about which is received by the combination meter assembly.

        • This notification is sent by the telematics transceiver (Data Communication Module) to the G-BOOK center when the power switch is on (IG).

        • The G-BOOK center then notifies the vehicle user about the malfunction condition and how to cope with the problem based on the information received.

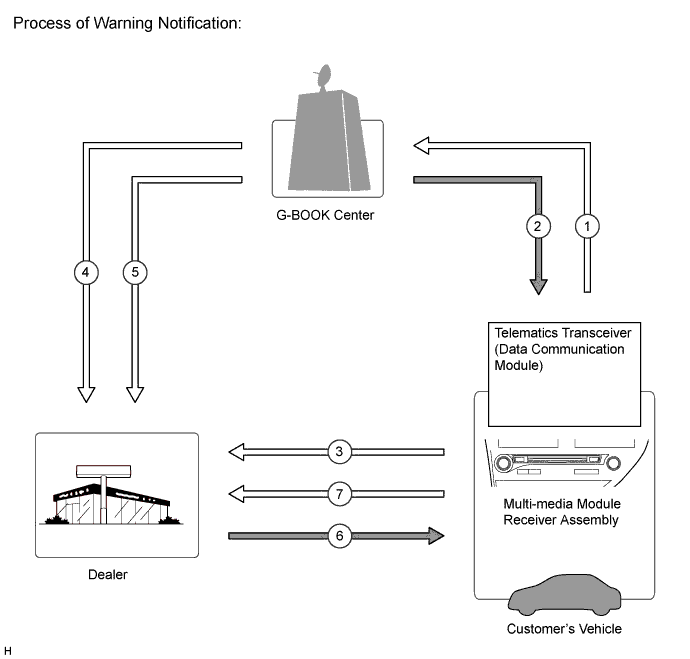

        A019WUVE01
        No. Process of Warning Notification
        1 Information about the vehicle, details of any trouble or malfunctions, is sent.
        2 The user is notified about the malfunction and how to cope with it.
        3 The user requests a reservation.
        4 Location and membership information.
        5 Information about a failure or malfunction.
        6 The reservation has been confirmed.
        7 The user brings the vehicle in.
    4. Operator Service


      1. The operator service provides the user with a direct call to a G-BOOK center operator. The user can ask the operator to set a destination or send a POI facility search result or news and weather forecasts information to the navigation system.

      2. The operator service uses the multi-media module receiver assembly to make calls via the following devices.


        • Cellular phone connection type navigation system: Cellular phone. It is necessary to register the phone using the Bluetooth hands-free function.

        • Telematics transceiver connection type navigation system: Telematics transceiver (data communication module). It is not necessary to register a phone using the Bluetooth hands-free function.

        Function Outline
        Destination Setting Displays the specified destination location on the navigation system screen.
        Nearby POI Facility Guidance Displays the detailed information and location of the specified facilities on the navigation system screen.
        Weather Forecast* Displays and reads out the vehicle location, destination or weather forecast for the specified area.
        News* Displays and reads out updates, society, sports and entertainment news.

        • *: Using the browser content display function built in the navigation system, the following contents can be displayed. If news content is displayed, headlines are read out to assist the driver in checking the content easily even while driving.

    5. Navigation System Link Function


      1. The navigation system link function provides the navigation system with real-time information obtained from the G-BOOK center, offering more effective use of the navigation system for the user.

      2. The navigation system link function has the following functions:

        Function Outline
        G Route Search Searches for the most suitable route to the destination based on information about wide-area traffic congestion prediction.
        The Nearest POI Connects to the G-BOOK center and enables the user to search for POIs near the vehicle's current position. The searched and found POI can be set as a destination or registered as a G-memory point.
        Searching for POIs on the WEB Transfers POI information, which was searched for on the Mapbar site, to the navigation system. A found POI can be set as a destination or registered as a G-memory point.
        Facility Information Display Displays information about facilities which are not included in the navigation system.
  3. CONSTRUCTION


    1. Emergency Call Switch


      1. The emergency call switch is available for the user to make a manual emergency call in the event of a sudden illness or an accident that does not cause the airbags to deploy.

      2. The emergency call switch has an indicator light on the panel so that the user can confirm the operation of the system.

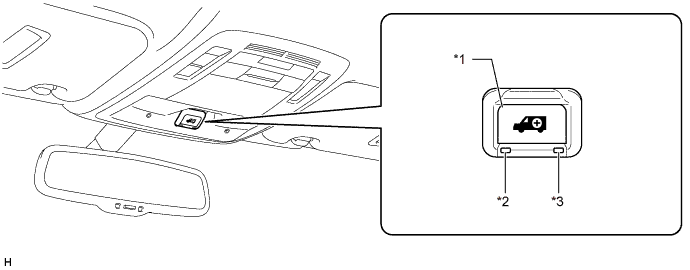

        A019WUIE01
        Text in Illustration
        *1 Emergency Call Switch *2 Emergency Call Switch Green Indicator
        *3 Emergency Call Switch Red Indicator - -
    2. Indicators shown in each condition are as follows:

      Indicator Light Operation Condition
      Green Red
      ON OFF The system is operating (the vehicle is within the cellular phone service area).
      OFF ON
      • The system is operating (the vehicle is outside the cellular phone service area).

      • A related device is malfunctioning (if the vehicle is within the cellular phone service area).

      Blinks OFF
      • During an emergency call.

      • During a manual maintenance check.

      OFF Blinks
      • An emergency call has failed.

      • An automatic maintenance check has failed (the vehicle is outside the cellular phone service area).

      • A manual maintenance check has failed.

      • The mayday battery (back-up battery) needs to be replaced.

      • A related device is malfunctioning.

      ON ON
      • The power switch is turned on (IG).

      • If the indicator lights remain on for 5 seconds or more, a related device is malfunctioning.

      OFF OFF
      • The G-BOOK service contract was not renewed.

      • The power switch is off.

      • A related device is malfunctioning.

      • The first manual maintenance check has not been completed.

  4. DIAGNOSIS


    1. For details on the procedure required to enter the Service Menu screen, refer to the Repair Manual.
