NAVIGATION SYSTEM / MULTI INFORMATION SYSTEM PARTS LOCATION

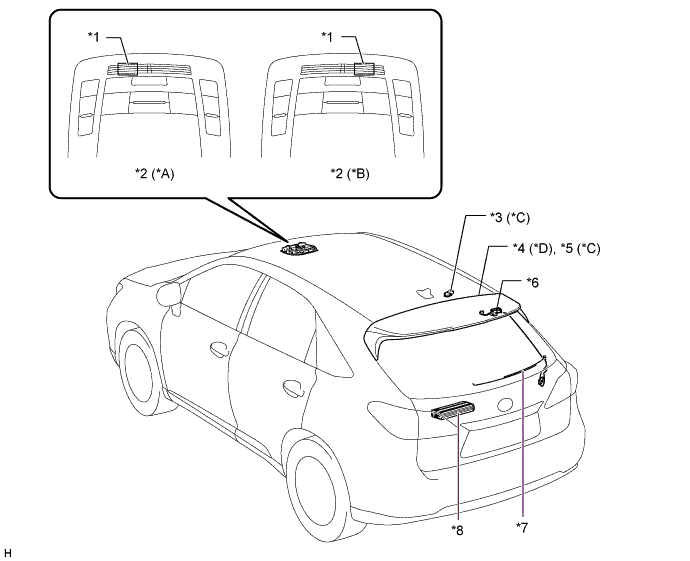

| *A | LHD Model | *B | RHD Model |
| *C | Models for Europe and Destination Package for Australia with HDD Navigation System | *D | Except Europe and Destination Package for Australia with HDD Navigation System |
| *1 | Telephone Microphone Assembly | *2 | Map Light Assembly |
| *3 | Digital Audio Broadcasting Antenna | *4 | Radio Antenna (Rear Spoiler Sub-assembly) - AM - FM |
| *5 | Radio Antenna (Rear Spoiler Sub-assembly) - AM - FM Main - DAB |
*6 | Amplifier Antenna Assembly |
| *7 | Window Glass Antenna Wire - FM-sub |
*8 | Stereo Component Amplifier Assembly |

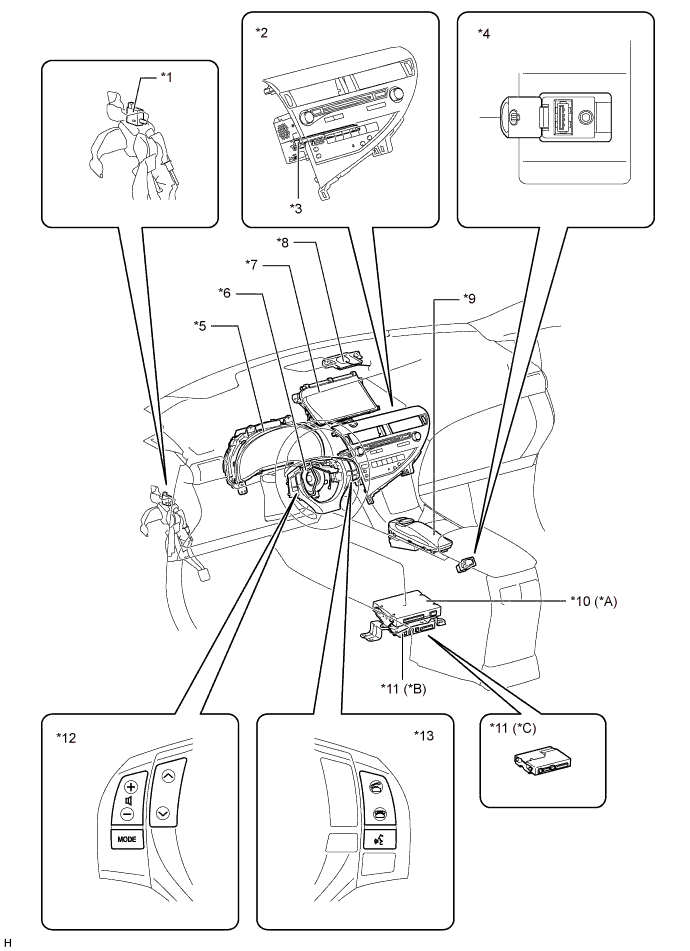

| *A | Models with Rear Seat Entertainment System | *B | Models with Rear Seat Entertainment System and G-BOOK System |
| *C | Models without Rear Seat Entertainment System and with G-BOOK System | - | - |
| *1 | Parking Brake Switch Assembly | *2 | Multi-media Module Receiver Assembly |
| *3 | Hard Disk Drive | *4 | No. 1 Stereo Jack Adapter Assembly |
| *5 | Combination Meter Assembly | *6 | Spiral Cable with Sensor Sub-assembly |
| *7 | Multi-display Assembly | *8 | Navigation Antenna Assembly |
| *9 | Remote Touch | *10 | Multi-Display Controller Sub-assembly |
| *11 | Telematics Transceiver (Data Communication Module) | *12 | Steering Pad Switch Assembly - Volume - Seek - Mode |
| *13 | Steering Pad Switch Assembly - Voice - Telephone |
- | - |

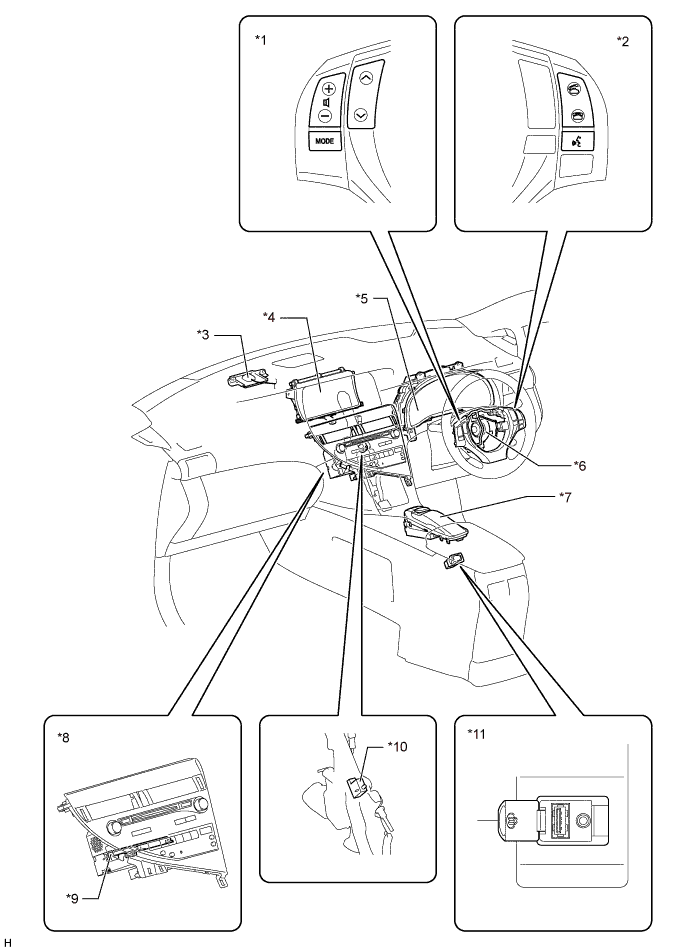

| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode |
*2 | Steering Pad Switch Assembly - Voice - Telephone |
| *3 | Navigation Antenna Assembly | *4 | Multi-display Assembly |
| *5 | Combination Meter Assembly | *6 | Spiral Cable with Sensor Sub-assembly |
| *7 | Remote Touch | *8 | Multi-media Module Receiver Assembly |
| *9 | Hard Disk Drive | *10 | Parking Brake Switch Assembly |
| *11 | No. 1 Stereo Jack Adapter Assembly | - | - |
