AUDIO AND VISUAL SYSTEM GENERAL


  1. OUTLINE


    1. Audio System


      1. The audio systems shown below are available:

        Audio System Audio Head Unit Speaker
        9-speaker Sound System Radio Receiver Assembly 9 Speakers
        Lexus Display Audio System Radio Receiver Assembly 12 Speakers
        HDD Navigation System Multi-media Module Receiver Assembly 12 Speakers
        15 Speakers

    2. Audio Head Unit


      1. In consideration of the unity with the instrument panel, a uniquely sized audio head unit is provided.

      2. A Thin Film Transistor Liquid Crystal Display (TFT LCD) is used for the multi-display of the Lexus display audio system and HDD navigation system, enabling operation of the audio screen, Bluetooth hands-free screen, vehicle information screen, etc. using the remote operation board*1 or remote touch*2.

        Tech Tips

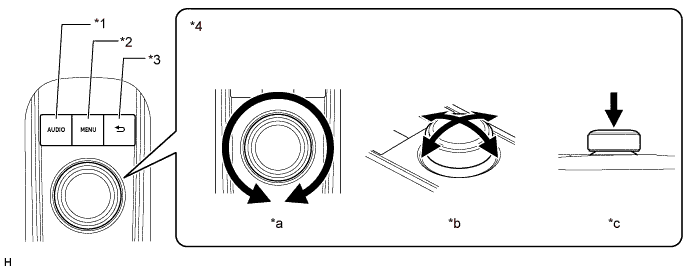

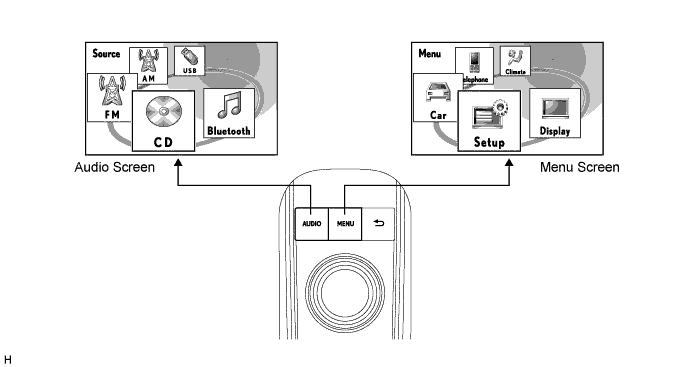

        For details on the remote touch, refer to the navigation system/multi information system section. Click here


        • *1: Models with Lexus display audio system

        • *2: Models with HDD navigation system

      3. Due to the change in the multi-display location, the remote operation board is used to ensure operability.

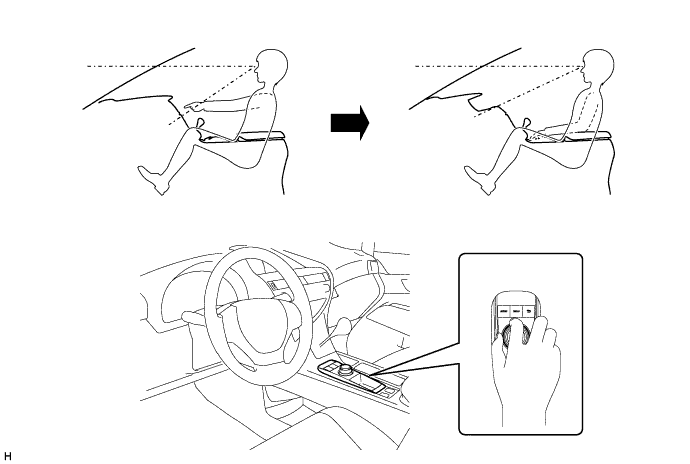

        A019WAP

      4. A sound library function that can compress music sound data using Advanced Audio Coding (AAC) compression technology and record the data to the Hard Disk Drive (HDD) is adopted.*


        • *: Destination package for China with HDD navigation system

      5. Discs containing MPEG audio layer-3 (MP3) files and Windows Media Audio (WMA) files can be played.

      6. Discs with the marks shown below can be played.

        A019WA1

    3. Digital Audio Broadcast (DAB) (Models for Europe and destination package for Australia with HDD Navigation System)


      1. Digital Audio Broadcast (DAB) reception is available. This mostly prevents broadcast interference, achieving clear reception with high quality sound.

      2. The time shift operation function can be used to play back programs at a later time.

        Tech Tips

        The amount of playback possible depends on the bit rate of the DAB station to be recorded, the amount of DAB unit memory, and the time at which reception of the broadcast began.

    4. Automatic Sound Levelizer (ASL)


      1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases).

      2. Vehicle speed signals are received from the combination meter assembly and used for ASL control.

    5. USB Audio System


      1. A USB port is provided that enables operation of a USB memory device, portable audio player (USB type), iPhone, iPod, iPod classic, iPod nano or iPod touch.

        Tech Tips


        • iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

        • The following iPod, iPod nano, iPod classic, iPod touch and iPhone devices can be used with this system.


          • Made for

          • iPod touch (4th generation)

          • iPod touch (3rd generation)

          • iPod touch (2nd generation)

          • iPod touch (1st generation)

          • iPod classic

          • iPod with video

          • iPod nano (6th generation)

          • iPod nano (5th generation)

          • iPod nano (4th generation)

          • iPod nano (3rd generation)

          • iPod nano (2nd generation)

          • iPod nano (1st generation)

          • iPhone 4

          • iPhone 3GS

          • iPhone 3G

          • iPhone

        • Depending on differences between models or software versions etc., some models might be incompatible with this system.

        • USB memory devices that meet the following specifications are supported:

          USB Communication Speed

          • USB 2.0, Full Speed (12 Mbps)

          • USB 2.0, High Speed (480 Mbps) (Except models with 9-speaker Sound System)
          File System FAT 16/32 (Windows)
          Device Class Mass Storage Class
          File Format MP3, WMA

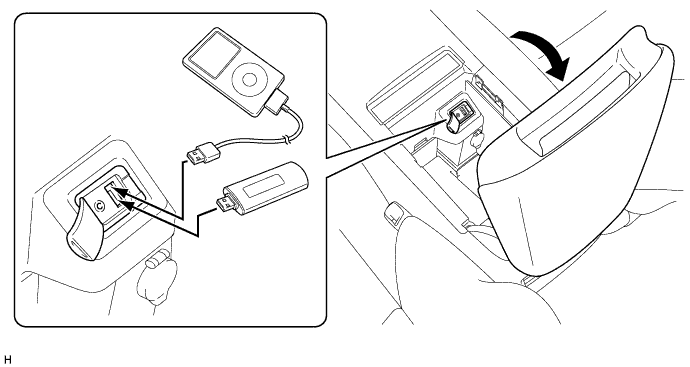

          A019WQI

    6. Bluetooth Audio System


      1. The Bluetooth audio system enables users to enjoy music played on a portable player from the vehicle speakers via wireless communication.


        • The Bluetooth specifications and profiles required for operation are as follows:

          Specification / Profile Version
          Bluetooth Specification Version 1.1 or higher Required
          Version 2.1 + EDR or higher Recommended
          Profile Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher Required
          Advanced Audio Distribution Profile (A2DP) Version 1.2 or higher Recommended
          Audio/Video Remote Control Profile (AVRCP) Version 1.0 or higher Required
          Audio/Video Remote Control Profile (AVRCP) Version 1.4 or higher Recommended

    7. Bluetooth Hands-free System


      1. The Bluetooth hands-free system allows the user to make or receive a call without taking their hands off the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

        Specification / Profile Version
        Bluetooth Specification Version 1.1 or higher Required
        Version 2.1+EDR or higher Recommended
        Profile Hands Free Profile (HFP) Version 1.0 or higher Required
        Hands Free Profile (HFP) Version 1.5 or higher Recommended
        Dial-up Networking Profile (DUN) Version 1.1 or higher* Recommended
        Object Push Profile (OPP) Version 1.1 or higher Required
        Phone Book Access Profile (PBAP) Version 1.0 or higher Required
        Message Access Profile (MAP) Ver.1.0 or higher* Required

        *: Models with HDD navigation system

        Tech Tips


        • The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

          A019WRT "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

        • Some profiles described above may not be supported in the system depending on the audio head unit equipped.

        • If the specification of the connected Bluetooth phone is lower than the recommended or does not support the functions required, the available functions may be limited.

        • Registration and connection of a Bluetooth phone is not available when only Dial-up Networking Profile (DUN), Object Push Profile (OPP), Phone Book Access Profile (PBAP) and MAP (Message Access Profile) are supported.

      2. When a Bluetooth phone is connected to the multi-media module receiver assembly, e-mails and Short Message Service (SMS) messages received on the phone can be displayed or read out. (Messages may not be displayed depending on the message service or profile that the connected Bluetooth phone supports.)

    8. Bluetooth Hands-free System


      1. The Bluetooth hands-free system allows the user to make or receive a call without taking their hands off the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

    9. Bluetooth Audio System


      1. The Bluetooth audio system enables users to enjoy music played on a portable player from the vehicle speakers via wireless communication.

        Tech Tips

        Portable players must correspond to the following specifications in order to be connected to the Bluetooth audio system. However, note that some functions may be limited depending on the type of portable player.


        • The following profiles must be supported:


          • Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher


          • Audio/Video Remote Control Profile (AVRCP) Version 1.0 or higher (Preferred: Version 1.3 or higher)

    10. Voice Recognition Search System


      1. Due to the Grapheme to Phoneme (G2P) function of converting sounds into text, a song in the USB audio system can be searched for by saying an artist name, album name, title or playlist name.

    11. Steering Pad Switch

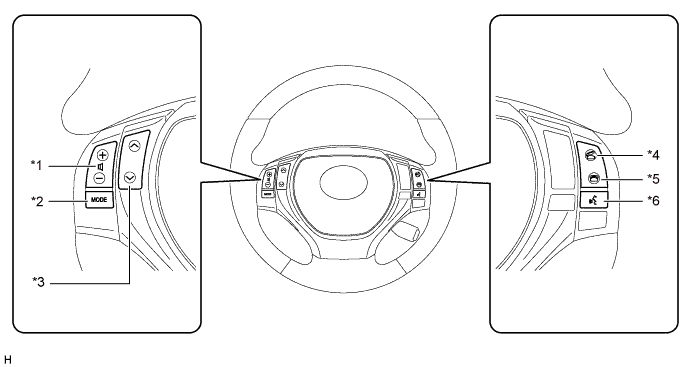

      1. Switches that the driver often uses are provided on the steering wheel for convenience.

    12. Radio Antenna


      1. A spoiler-integrated radio antenna system is adopted. The AM/FM main antennas and Digital Audio Broadcast (DAB)* antenna are built into the rear spoiler sub-assembly.


        • *: Models for Europe and destination package for Australia with HDD navigation system

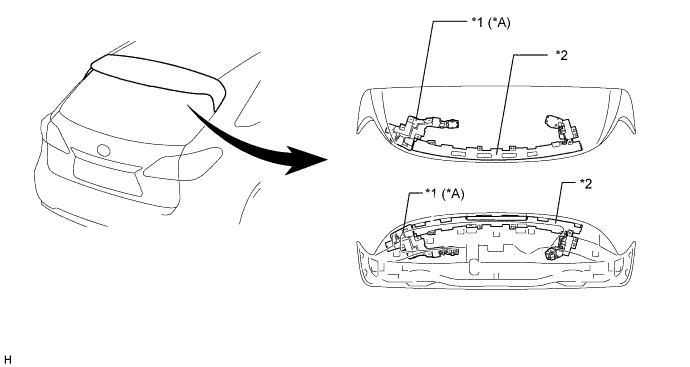

        A019WA2E01
        Text in Illustration
        *A Models for Europe and Destination Package for Australia with HDD Navigation System - -
        *1 DAB Antenna *2 AM/FM Main Antennas

    13. Rear Seat Entertainment System (Models with Rear Seat Entertainment System)

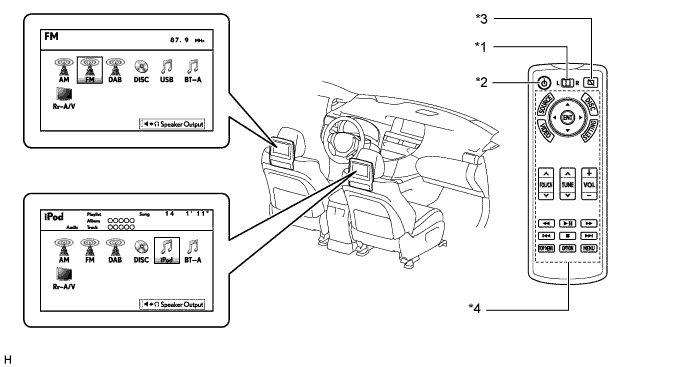

      1. The rear seat entertainment system displays images from the DVD player or an auxiliary player on the television display assemblies. The rear seat entertainment also outputs sound via the speakers or headphones.

      2. Rear seat entertainment television display assemblies are provided on the back of the driver and front passenger seats, enabling each rear seat occupant to view the television image while looking straight forward.

  2. MAJOR DIFFERENCE


    1. The new models have been modified from the previous models as shown below:


      1. The Lexus display audio system has been added to the available audio systems.

      2. A new model HDD navigation system is available.

      3. On models for Europe and destination package for Australia with HDD navigation system, a Digital Audio Broadcast (DAB) antenna has been integrated in the rear spoiler sub-assembly.

      4. The position of the No. 1 stereo jack adapter assembly has been changed.

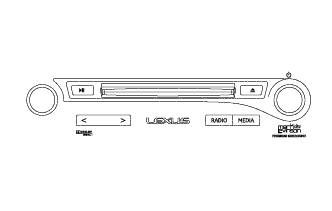

      5. The panel design of the audio head unit has been changed.

      6. The design of the steering pad switch assembly has been changed.

      7. The design of the television switch and volume assembly for the rear seat entertainment system has been changed.

      8. On the sound library, the number of recordable tracks on the hard disk drive has been increased.

  3. SPECIFICATION


    1. Audio System

      LHD Models:
      Audio Head Unit Design Specification Destination

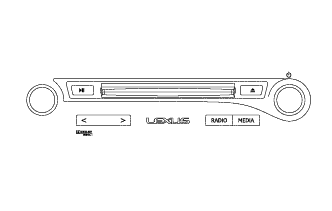

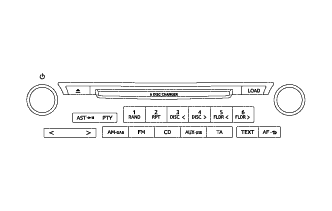

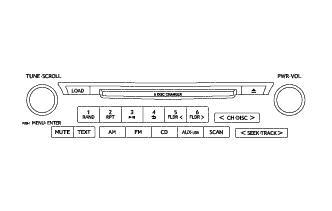

      Radio Receiver Assembly A019WL1

      9-speaker Sound System:


      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 9-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Europe

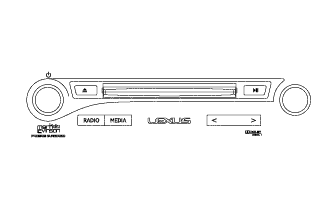

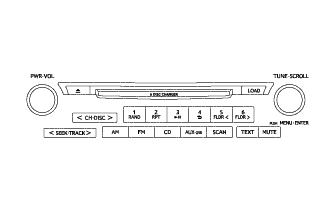

      Radio Receiver Assembly A019WIE

      9-speaker Sound System:


      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 9-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 China
      Radio Receiver Assembly A019WIE

      9-speaker Sound System:


      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 9-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Taiwan and G.C.C. Countries

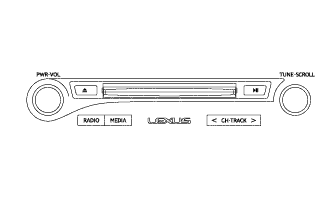

      Radio Receiver Assembly A019WB8

      Lexus Display Audio System:


      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • CD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 G.C.C. Countries

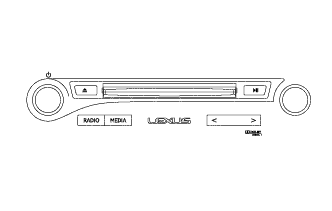

      Multi-media Module Receiver Assembly A019WUO

      HDD Navigation System:


      • Display Language Supported: English, German, French, Italian, Spanish, Dutch, Norwegian, Swedish, Portuguese, Danish, Finnish, Polish, Greek, Russian, Czech, Romanian, Hungarian, Slovak, Turkish and Ukrainian

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Transport Protocol Experts Group (TPEG) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Europe
      Multi-media Module Receiver Assembly A019WFH

      HDD Navigation System:


      • Display Language Supported: English, German, French, Italian, Spanish, Dutch, Norwegian, Swedish, Portuguese, Danish, Finnish, Polish, Greek, Russian, Czech, Romanian, Hungarian, Slovak, Turkish and Ukrainian

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Transport Protocol Experts Group (TPEG) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 Europe

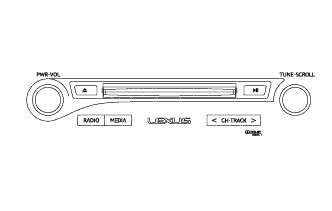

      Multi-media Module Receiver Assembly A019WU7

      HDD Navigation System:


      • AM/FM Tuner

      • Real-time Traffic Information of China (RTIC)

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • HDD Audio (Sound Library)

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 China

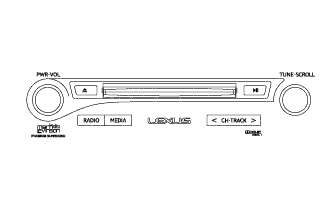

      Multi-media Module Receiver Assembly A019WM1

      HDD Navigation System:


      • AM/FM Tuner

      • Real-time Traffic Information of China (RTIC)

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • HDD Audio (Sound Library)

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 China
      Multi-media Module Receiver Assembly A019WU7

      HDD Navigation System:


      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Taiwan
      Multi-media Module Receiver Assembly A019WM1

      HDD Navigation System:


      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 Taiwan
      Multi-media Module Receiver Assembly A019WU7

      HDD Navigation System:


      • Display Language Supported: English and Arabic

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 G.C.C. Countries
      Multi-media Module Receiver Assembly A019WM1

      HDD Navigation System:


      • Display Language Supported: English and Arabic

      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 G.C.C. Countries
      RHD Models:
      Audio Head Unit Design Specification Destination

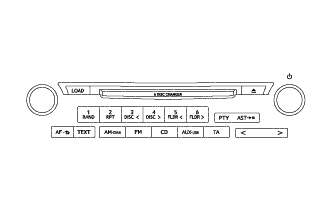

      Radio Receiver Assembly A019WPN

      9-speaker Sound System:


      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 9-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Europe
      Radio Receiver Assembly A019WGV

      9-speaker Sound System:


      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 9-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Australia
      Radio Receiver Assembly A019WTR

      9-speaker Sound System:


      • AM/FM Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • 9-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Thailand
      Multi-media Module Receiver Assembly A019WBR

      HDD Navigation System:


      • Display Language Supported: English, German, French, Italian, Spanish, Dutch, Norwegian, Swedish, Portuguese, Danish, Finnish, Polish, Greek, Russian, Czech, Romanian, Hungarian, Slovak, Turkish and Ukrainian

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Transport Protocol Experts Group (TPEG) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Europe
      Multi-media Module Receiver Assembly A019WFD

      HDD Navigation System:


      • Display Language Supported: English, German, French, Italian, Spanish, Dutch, Norwegian, Swedish, Portuguese, Danish, Finnish, Polish, Greek, Russian, Czech, Romanian, Hungarian, Slovak, Turkish and Ukrainian

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Transport Protocol Experts Group (TPEG) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 Europe
      Multi-media Module Receiver Assembly A019WBR

      HDD Navigation System:


      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 South Africa
      Multi-media Module Receiver Assembly A019WFD

      HDD Navigation System:


      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 South Africa

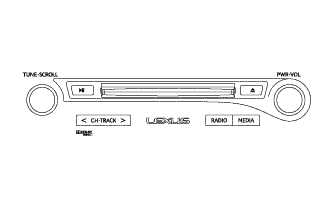

      Multi-media Module Receiver Assembly A019WK7

      HDD Navigation System:


      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Australia

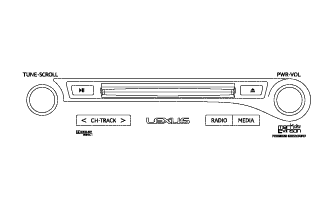

      Multi-media Module Receiver Assembly A019WME

      HDD Navigation System:


      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Voice Recognition Search (USB Audio System)

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 Australia
      Multi-media Module Receiver Assembly A019WK7

      HDD Navigation System:


      • Display Language Supported: English and Thai

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • CD-TEXT Display Function

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 12-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Pioneer

      		 Thailand
      Multi-media Module Receiver Assembly A019WME

      HDD Navigation System:


      • Display Language Supported: English and Thai

      • AM/FM Tuner

      • Radio Data System Traffic Message Channel (RDS-TMC) Tuner

      • Digital Sound Processor (DSP)

      • Automatic Sound Levelizer (ASL)

      • DVD Player: Compatible with MP3 and Windows Media Audio (WMA) files

      • Bluetooth Audio

      • Bluetooth Hands-free System

      • Portable Audio Player (USB type) Interface

      • iPod / iPhone Interface

      • USB Memory Device Interface

      • Stereo Jack Adapter

      • Customizable vehicle settings can be changed

      • 15-speaker System

      • Unit: Pioneer

      • Stereo Amplifier: Mark Levinson

      		 Thailand

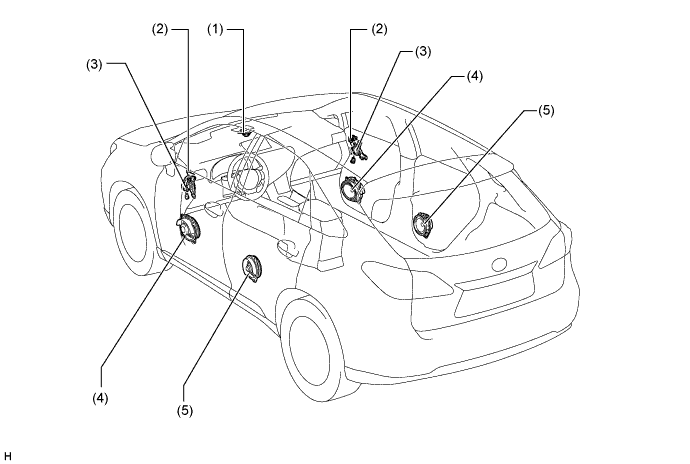

    2. 9-speaker System

      A019WJME01
      Location Speaker Type Quantity Size Impedance Rated Input Power
      (1) Center 1 6.5 cm (2.5 in.) 6 Ω 15 W
      (2) Tweeter 2 2.5 cm (0.9 in.) 4 Ω 25 W
      (3) Mid Range 2 6.5 cm (2.5 in.) 4 Ω 21 W
      (4) Woofer 2 15 X 23 cm (6 X 9 in.) 4 Ω 21 W
      (5) Full Range 2 16 cm (6.2 in.) 4 Ω 21 W

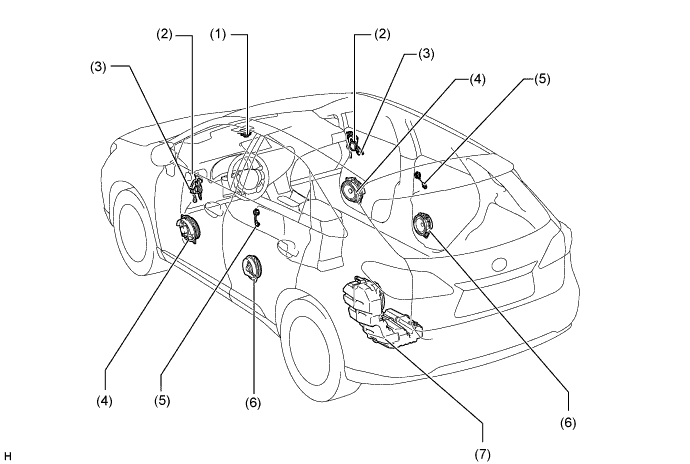

    3. 12-speaker System

      A019WDAE01
      Location Speaker Type Quantity Size Impedance Rated Input Power
      (1) Center 1 6.5 cm (2.5 in.) 6 Ω 15 W
      (2) Tweeter 2 2.5 cm (0.9 in.) 4 Ω 25 W
      (3) Mid Range 2 6.5 cm (2.5 in.) 4 Ω 21 W
      (4) Woofer 2 15 X 23 cm (6 X 9 in.) 4 Ω 21 W
      (5) Tweeter 2 2.5 cm (0.9 in.) 4 Ω 25 W
      (6) Full Range 2 16 cm (6.2 in.) 4 Ω 21 W
      (7) Sub-woofer 1 20 cm (7.8 in.) 2 Ω 32 W

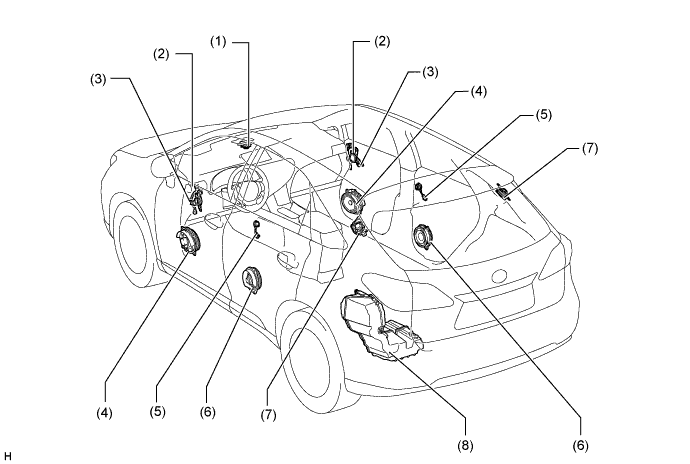

    4. 15-speaker System

      A019WH0E01
      Location Speaker Type Quantity Size Impedance Rated Input Power
      (1) Center (Coaxial) 1+1 9 cm (3.5 in.) 6 Ω 15 W
      (2) Tweeter 2 2.5 cm (0.9 in.) - 20 W
      (3) Mid Range 2 6.5 cm (2.5 in.) 6 Ω 15 W
      (4) Woofer 2 15 X 23 cm (6 X 9 in.) 6 Ω 40 W
      (5) Tweeter 2 2.5 cm (0.9 in.) - 20 W
      (6) Woofer 2 16 cm (6.2 in.) 6 Ω 25 W
      (7) Surround 2 9 cm (3.5 in.) 6 Ω 15 W
      (8) Sub-woofer 1 20 cm (7.8 in.) 12 Ω 120 W

    5. Remote Operation Board

      A019WVRE01
      Text in Illustration
      *1 AUDIO Switch *2 MENU Switch
      *3 Return Switch *4 Rotary Knob
      *a Rotary Switch (Cursor Operation) *b 4-way Switch (Cursor Operation)
      *c Push Switch (Enter) - -

    6. Steering Pad Switch Assembly

      A019WF5E01
      Text in Illustration
      *1 Volume +/- Switch *2 Seek Up/Down Switch
      *3 MODE Switch *4 Off Hook Switch
      *5 On Hook Switch *6 Voice Switch

  4. MAIN FEATURES


    1. Remote Operation Board


      1. Press the AUDIO button or MENU button on the remote operation board and start operation of the Lexus display audio system. An audio source such as radio and CD can be operated on the audio screen. The set up function of the Lexus display audio system, the telephone function, the air conditioning system, etc. can be operated on the menu screen.

        A019WW4E01

    2. Sound Library


      1. Approximately 3000 tracks with a 5-minute track length average can be recorded to the HDD from audio discs using AAC encoding at 128 kbps (a maximum of 9999 tracks can be recorded if tracks with an average track length of less than 5 minutes are recorded or the tracks are encoded at less than 128 kbps).

      2. Tracks from a CD are recorded at 4 times normal play speed.

      3. Album, artist and title names for recorded tracks can be input or edited freely. These names can help you search for a track easily.

        Tech Tips


        • Recording equipment should be used only for lawful copying. You are advised to carefully confirm what is lawful copying in the country in which you are making a copy.

        • Copying of copyright material such as films or music is unlawful unless permitted by a legal exception or consent granted by the owners of the rights to the content.

    3. Rear Seat Entertainment System


      1. A pair of 7-inch Video Graphics Array (VGA) monitors are adopted for the television system. In addition, Light Emitting Diodes (LEDs) are used to provide mercury-free backlighting. This reduces the burden on the environment and ensures brightness.

      2. Each television display assembly provided on the driver and front passenger seats can output different images and sounds. However, this is only for the combination of images and sounds input from AUX (VIDEO etc.) and images and sounds output from the multi-media module receiver assembly.

      3. DVD and VIDEO source can be operated for the left and right display independently using the television switch and volume assembly. Firstly select the right or left display using the display select switch on the television switch and volume assembly and then operate DVD or VIDEO source.

      4. A menu screen exclusive to the rear seat entertainment system is provided, enhancing operability of each content selection.

        A019W9OE01
        Text in Illustration
        *1 Display Select Switch *2 Rear Seat Entertainment System on/off Button
        *3 Rear Display off Button *4 Operation Buttons
