STEERING COLUMN SYSTEM PARTS LOCATION

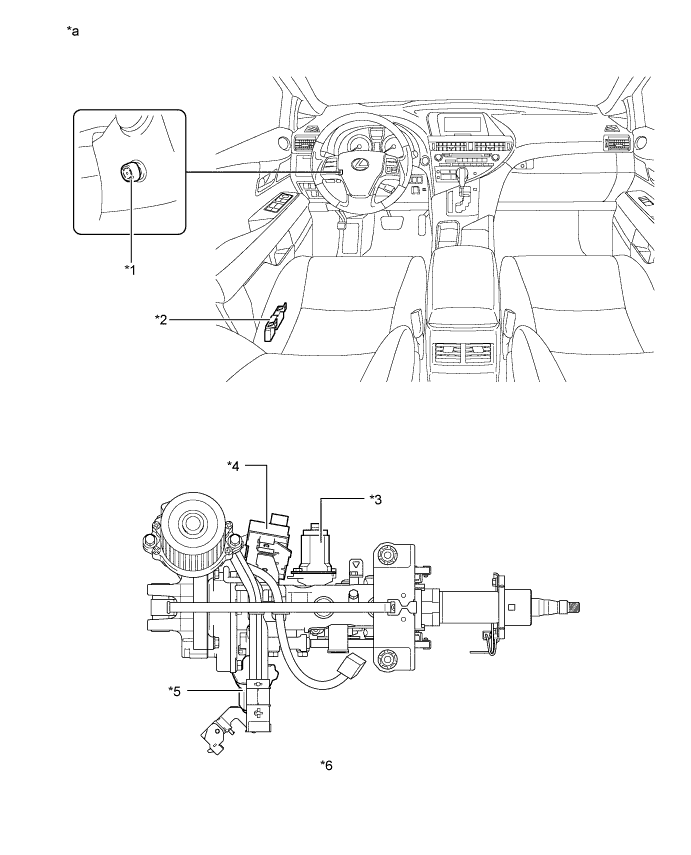

A019WK1E04

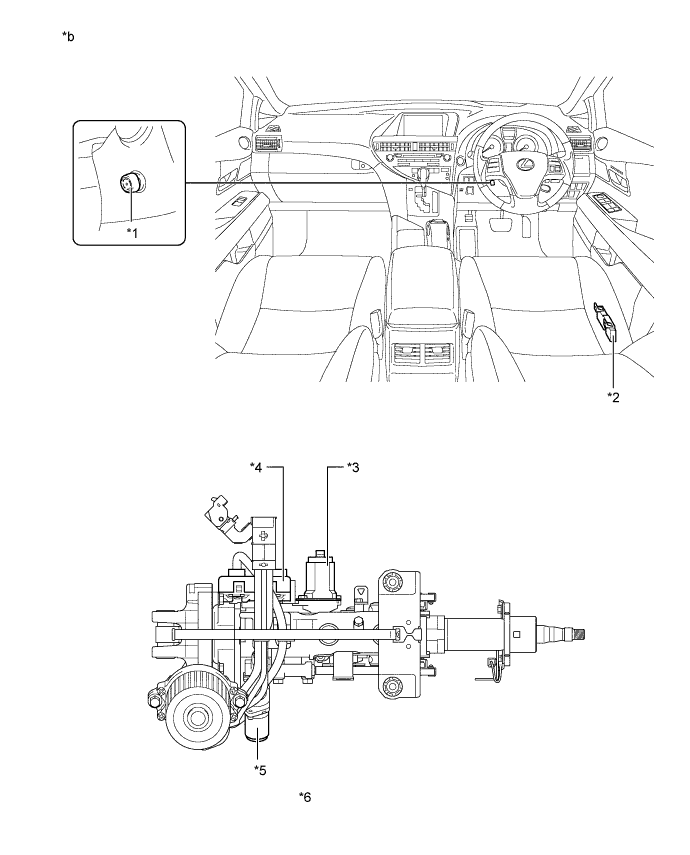

A019WCJE03
Text in Illustration
*a LHD Models: *b RHD Models:
*1 Tilt and Telescopic Switch *2

Front Power Seat Switch LH (for Driver)*

- Position Control ECU

*3 Tilt Motor *4 Multiplex Tilt and Telescopic ECU
*5 Telescopic Motor *6 Top View

*: Models with memory function
