REAR SUSPENSION SYSTEM DETAILS


  1. CONSTRUCTION

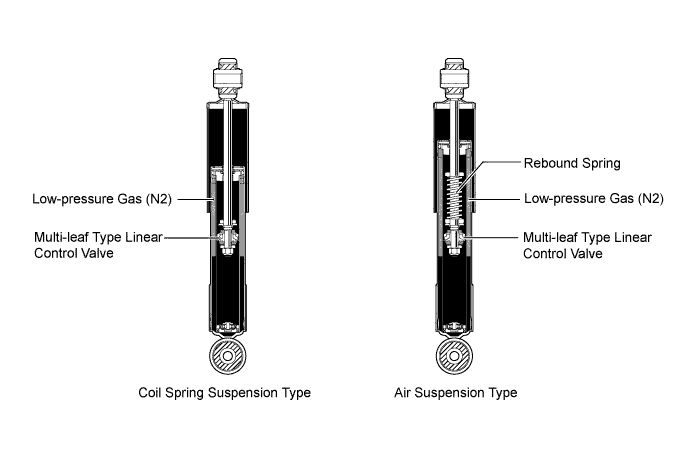

    1. Rear Shock Absorber Assembly


      1. A low-pressure gas (N2) sealed rear shock absorber assembly with a linear control valve is used to realize driving stability and riding comfort.

      2. As with the rear shock absorber assembly, a multi-leaf type linear control valve is used in order to attain the linear damping force characteristics.

      3. A rebound spring is used on models with air suspension to ensure vehicle stability during cornering.

        A019WCNE02
