REAR SUSPENSION SYSTEM GENERAL


  1. OUTLINE


    1. A trailing arm type double wishbone independent suspension is used.

    2. The rear suspension realizes excellent stability and controllability by optimizing the suspension geometry and the allocation of components.

    3. The rear stabilizer bar increases the roll rigidity and optimizes the roll posture.

    4. For models with coil spring suspension, the active stabilizer suspension system is available as an option. For details, Click here.

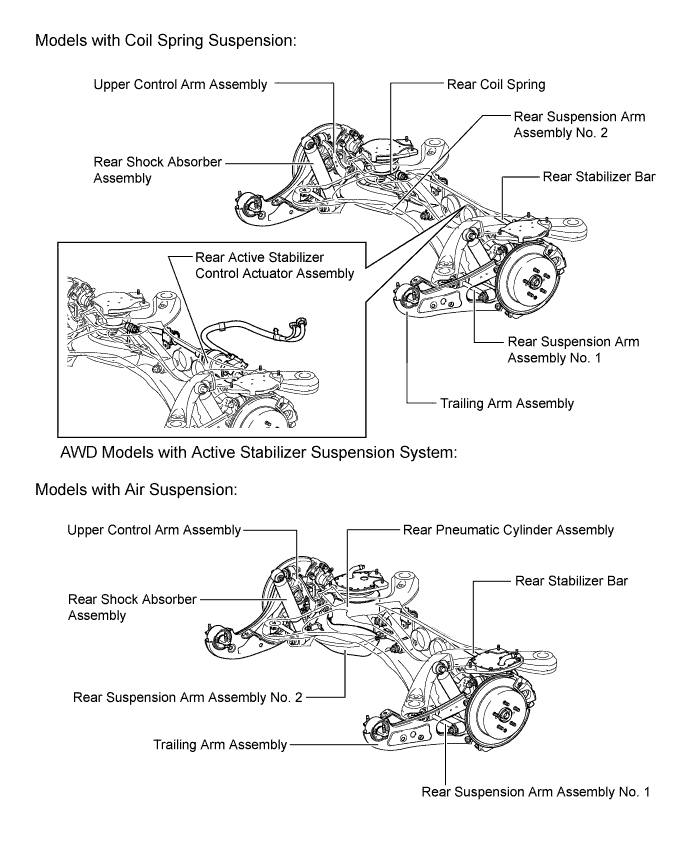

      A019WVCE04

  2. SPECIFICATION

    Model 2WD AWD
    Coil Spring Suspension Air Suspension
    Rear Suspension Type Trailing Arm Type Double Wishbone Trailing Arm Type Double Wishbone Trailing Arm Type Double Wishbone
    Rear Wheel Alignment Tread* 1620 mm (63.8 in.) 1620 mm (63.8 in.) 1620 mm (63.8 in.)
    Camber* - 0° 35' - 0° 35' - 0° 49'
    Toe-in* 1.0 mm (0.04 in.) 1.0 mm (0.04 in.) 2.5 mm (0.1 in.)

    *: Unladen vehicle
