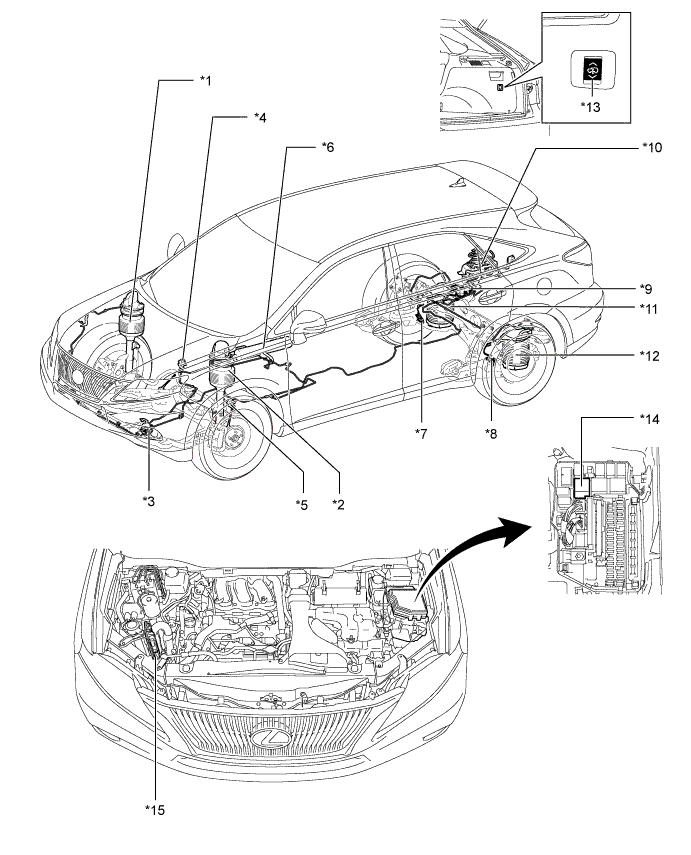

| *1 |
Front Pneumatic Cylinder Assembly RH |
*2 |
Front Pneumatic Cylinder Assembly LH |
| *3 |
No. 1 Height Control Valve Sub-assembly |
*4 |
Front Height Control Sensor Sub-assembly RH |
| *5 |
Front Height Control Sensor Sub-assembly LH |
*6 |
Pneumatic Tank Assembly |
| *7 |
Rear Height Control Sensor Sub-assembly RH |
*8 |
Rear Height Control Sensor Sub-assembly LH |
| *9 |
No. 2 Height Control Valve Sub-assembly |
*10 |
Height Control Compressor Assembly |
| *11 |
Rear Pneumatic Cylinder Assembly RH |
*12 |
Rear Pneumatic Cylinder Assembly LH |
| *13 |
Height Control Switch (Luggage Compartment) |
*14 |
Suspension Control Relay |
| *15 |
ECM |

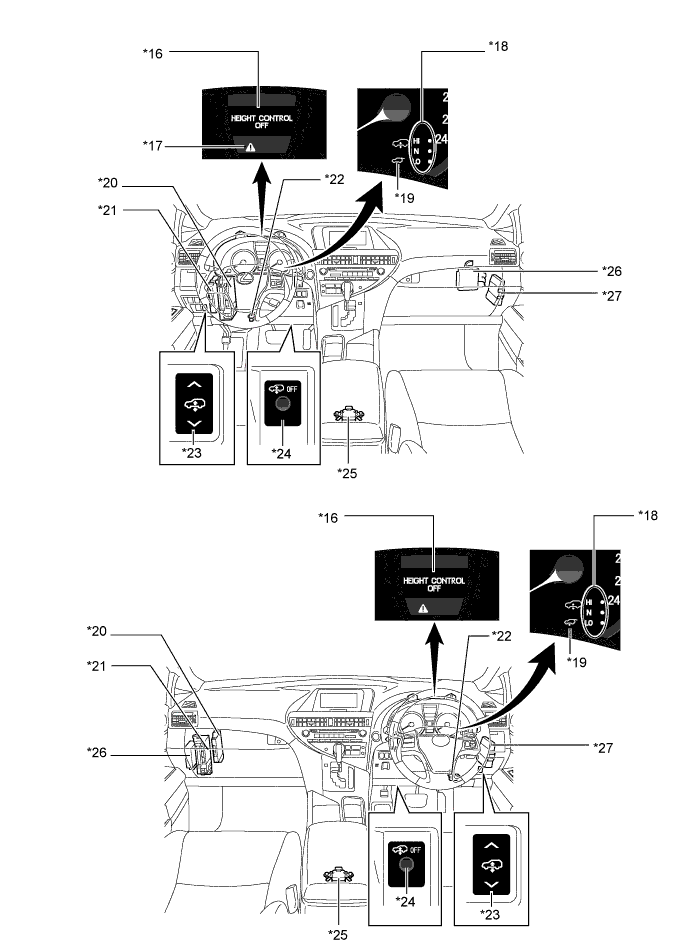

*16 |
Multi-information Display |
| *17 |
Master Warning Light |
*18 |
Height Control Indicator Light |
| *19 |
Luggage Mode Indicator Light |
*20 |
Main Body ECU (Multiplex Network Body ECU) |
| *21 |
Power Management Control ECU |
*22 |
DLC3 |
| *23 |
Height Control Switch (Driver's Seat) |
*24 |
Height Control OFF Switch |
| *25 |
Yawrate Sensor |
*26 |
Suspension Control ECU |
| *27 |
Skid Control ECU |
- |
- |
