DRIVE SHAFT SYSTEM GENERAL


  1. OUTLINE

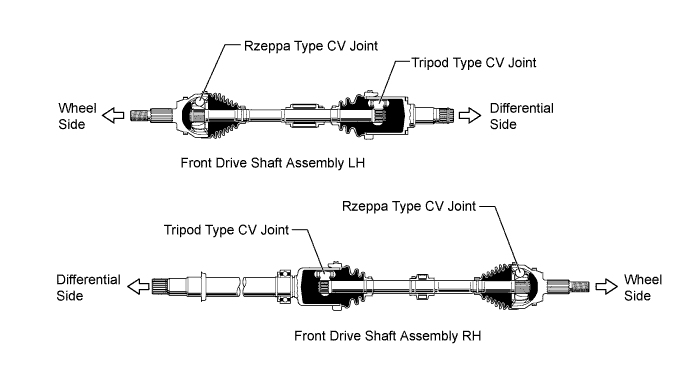

    1. The front drive shaft assembly for all models uses tripod type Constant Velocity (CV) joints on the differential side, and Rzeppa type CV joints on the wheel side.

      A019WUWE02

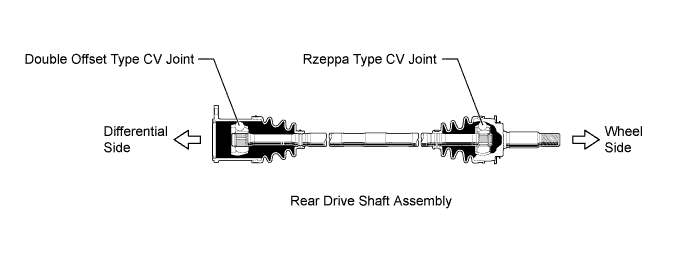

    2. The rear drive shaft assembly for the AWD models uses double offset type Constant Velocity (CV) joints on the differential side, and Rzeppa type CV joints on the wheel side.

      A019WKFE02
