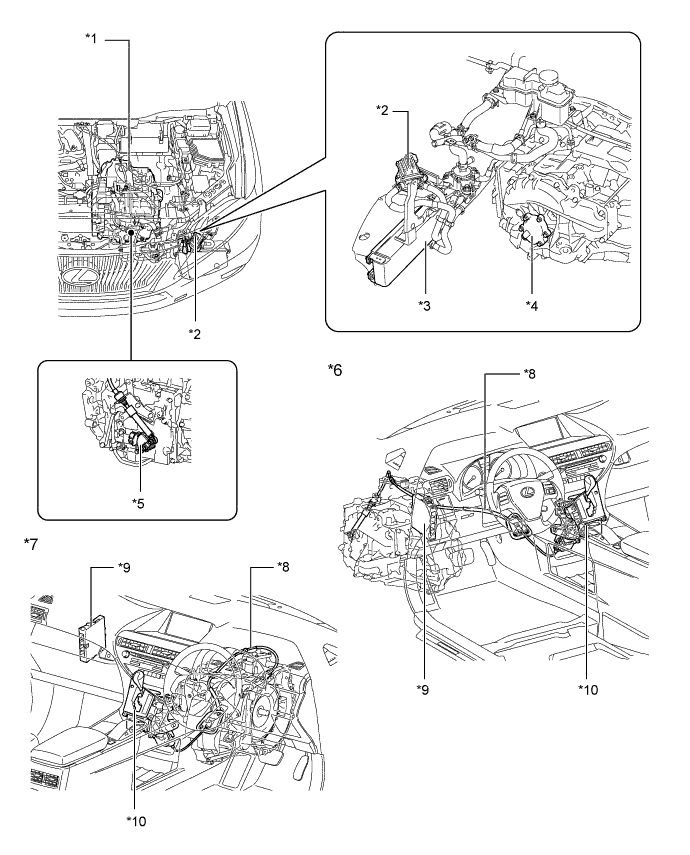

HYBRID TRANSAXLE SYSTEM PARTS LOCATION
| *1 | P313 Hybrid Transaxle (Hybrid Vehicle Transaxle Assembly) | *2 | Oil Pump with Motor Assembly |
| *3 | Oil Cooler Assembly | *4 | Oil Pump |
| *5 | Shift Lever Position Sensor | *6 | LHD Models |
| *7 | RHD Models | *8 | Transmission Control Cable Assembly |
| *9 | Power Management Control ECU (HV CPU) | *10 | Shift Lever Assembly |
