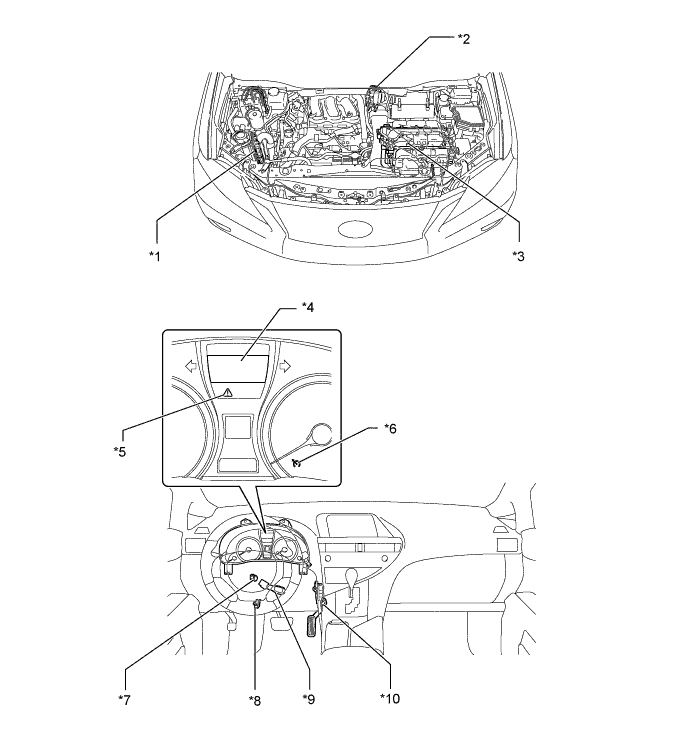

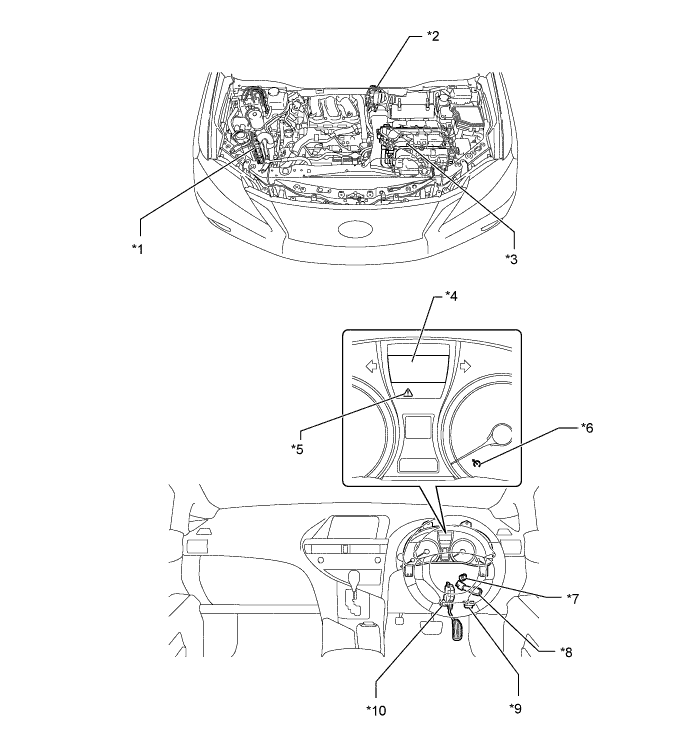

CRUISE CONTROL SYSTEM PARTS LOCATION
| *1 | ECM | *2 | Throttle Body with Motor Assembly - Throttle Position Sensor - Throttle Control Motor |
| *3 | Inverter with Converter Assembly - Motor Generator ECU (MG ECU) |
*4 | Multi-information Display |
| *5 | Master Warning Light | *6 | Cruise Main Indicator Light |
| *7 | Stop Light Switch | *8 | DLC3 |
| *9 | Cruise Control Main Switch | *10 | Accelerator Pedal Sensor Assembly |
| *1 | ECM | *2 | Throttle Body with Motor Assembly - Throttle Position Sensor - Throttle Control Motor |
| *3 | Inverter with Converter Assembly - Motor Generator ECU (MG ECU) |
*4 | Multi-information Display |
| *5 | Master Warning Light | *6 | Cruise Main Indicator Light |
| *7 | Stop Light Switch | *8 | Cruise Control Main Switch |
| *9 | DLC3 | *10 | Accelerator Pedal Sensor Assembly |
