LUBRICATION SYSTEM GENERAL


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and all oil passes through an oil filter.

    2. A cycloid rotor type oil pump is used.

      A019WHCE01
      Text in Illustration

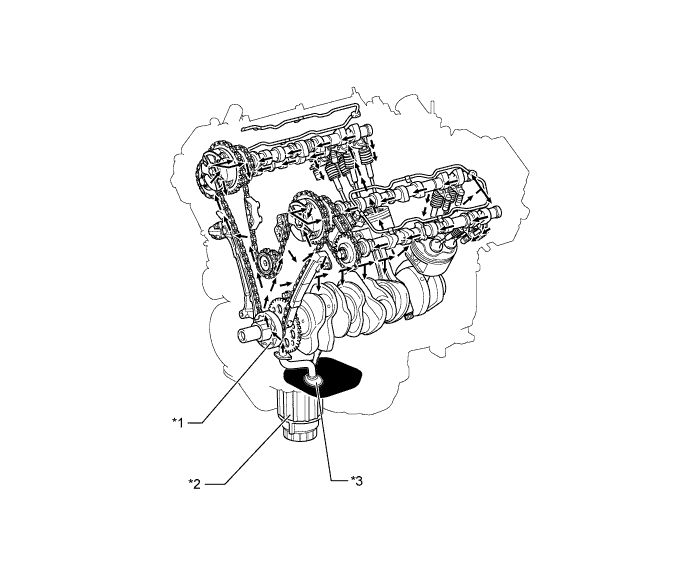

      *1 Oil Pump *2 Oil Filter
      *3 Oil Strainer Sub-assembly - -

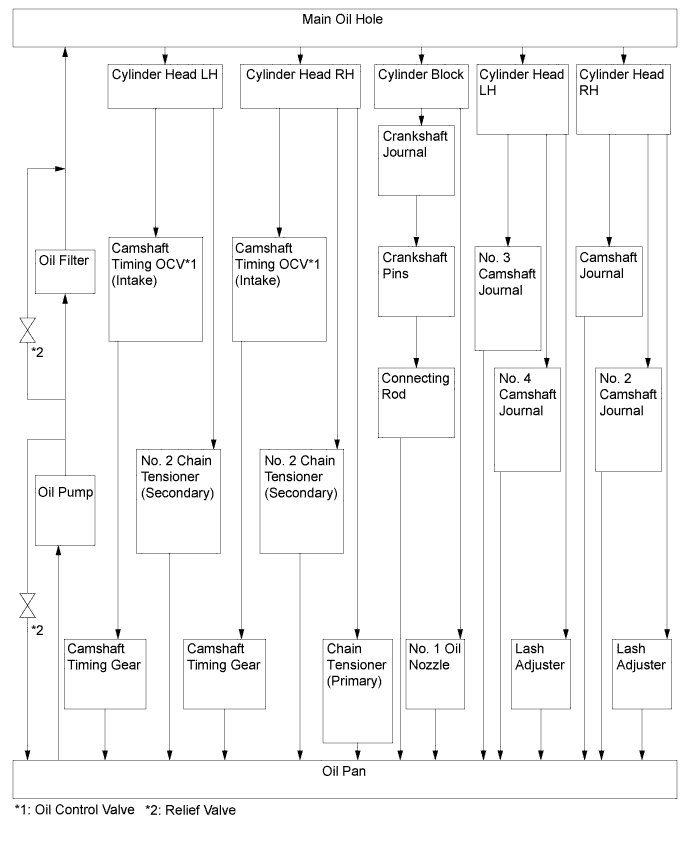

    3. Lubrication Circuit

      A019WLCE01
