COOLING SYSTEM DETAILS


  1. CONSTRUCTION


    1. Water Pump Assembly


      1. The water pump assembly has 2 volute chambers, and circulates coolant uniformly to the left and right banks of the cylinder block sub-assembly.

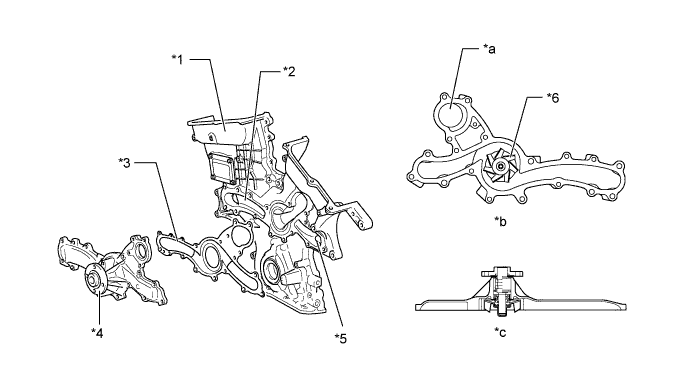

        A019WAME05
        Text in Illustration
        *1 Timing Chain Cover *2 Volute Chamber
        *3 Water Pump Gasket *4 Water Pump Assembly
        *5 Volute Chamber *6 Rotor
        *a From Water Inlet Housing *b View from Back Side
        *c Cross Section - -

    2. Radiator Assembly


      1. A downflow radiator is used.

      2. The radiator assembly and cooler condenser assembly have been integrated, achieving a compact design.

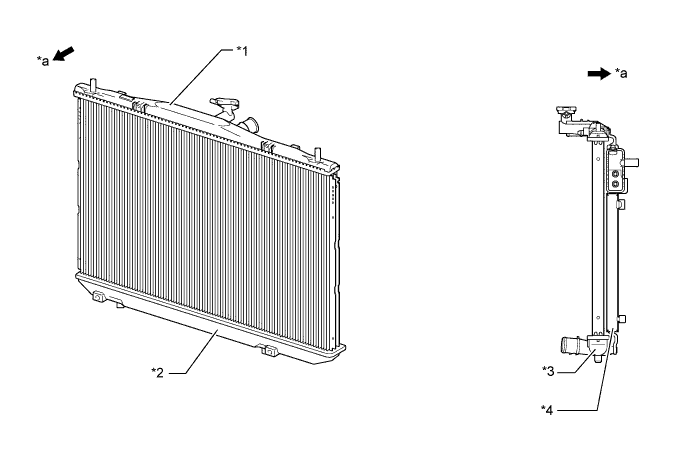

        A019WFFE01
        Text in Illustration
        *1 Upper Radiator Tank *2 Lower Radiator Tank
        *3 Radiator Assembly *4 Cooler Condenser Assembly
        *a Front - -
