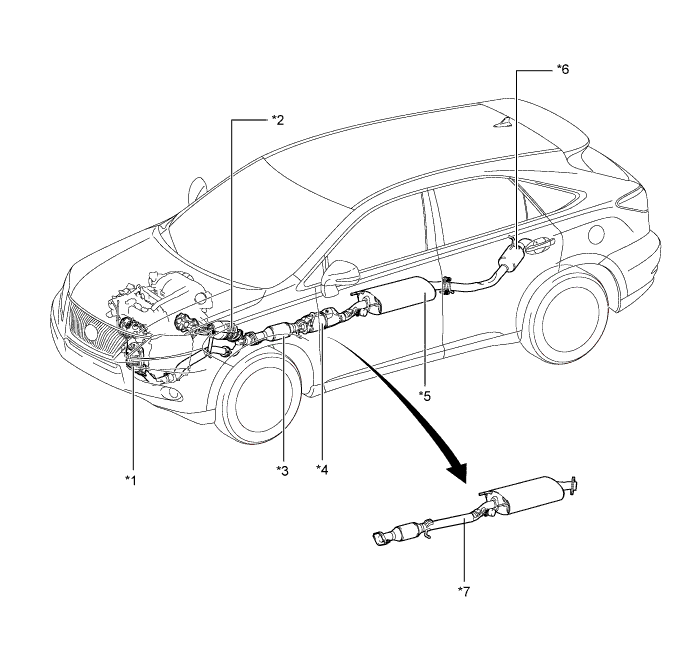

EXHAUST SYSTEM PARTS LOCATION
| *1 | Exhaust Manifold Sub-assembly LH - TWC |
*2 | Exhaust Manifold Sub-assembly RH - TWC |
| *3 | TWC | *4 | Exhaust Center Pipe Assembly (with Exhaust Heat Recirculation Device) |
| *5 | Main Muffler | *6 | Sub Muffler |
| *7 | Exhaust Center Pipe Assembly (Destination package for China, Russia, Ukraine, Croatia, Turkey, Thailand and Singapore) | - | - |
