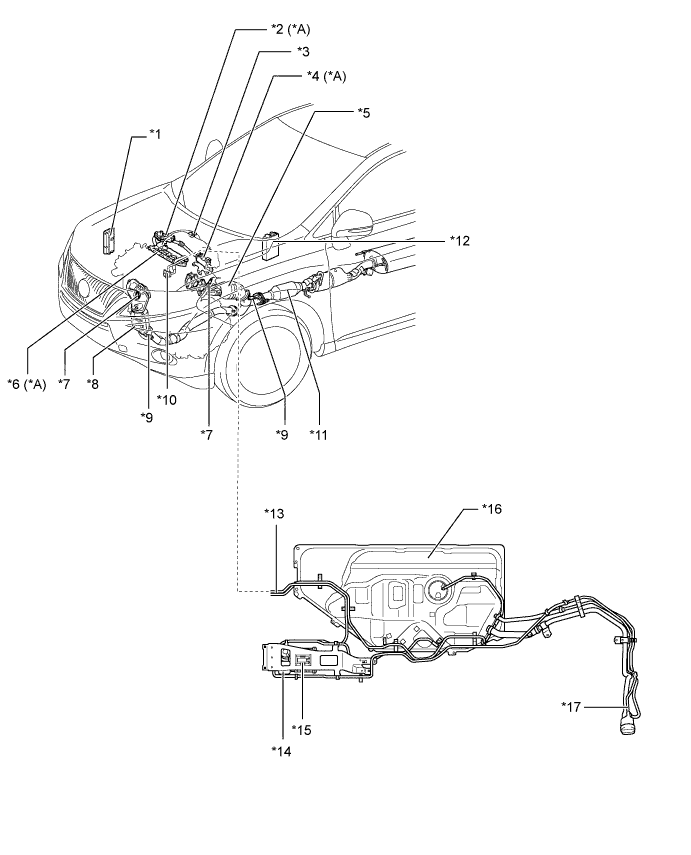

EMISSION CONTROL SYSTEM PARTS LOCATION
| *A | Models with Cooled EGR Control | - | - |
| *1 | ECM | *2 | EGR Valve |
| *3 | EFI Vacuum Sensor Assembly | *4 | EGR Cooler |
| *5 | Exhaust Manifold Sub-assembly RH - TWC |
*6 | EGR Delivery Chamber |
| *7 | Air Fuel Ratio Sensor | *8 | Exhaust Manifold Sub-assembly LH - TWC |
| *9 | Heated Oxygen Sensor | *10 | Purge VSV |
| *11 | TWC | *12 | Power Management Control ECU |
| *13 | Purge Air Line | *14 | Canister Filter |
| *15 | Canister | *16 | Fuel Tank Assembly |
| *17 | Fresh Air Line | - | - |
