FUEL SYSTEM DETAILS


  1. CONSTRUCTION


    1. Fuel Delivery Pipe


      1. Fuel delivery pipe sub-assemblies made of plastic are used to realize weight reduction.

      2. The right and left fuel delivery pipe sub-assemblies are connected by a nylon tube.

      3. The fuel pressure pulsation damper assembly is sealed with an O-ring and secured with a clip.

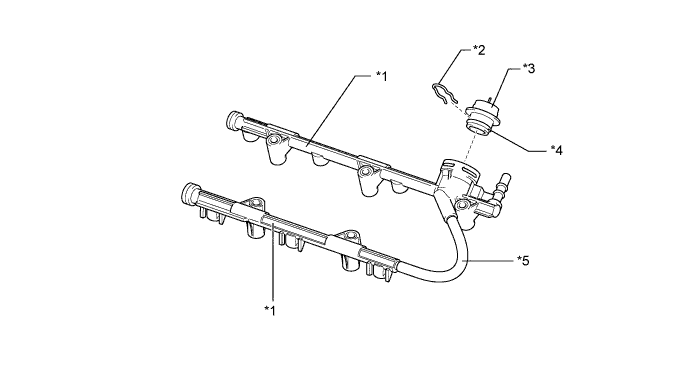

        A019WBQE01
        Text in Illustration
        *1 Fuel Delivery Pipe Sub-assembly *2 Clip
        *3 Fuel Pressure Pulsation Damper Assembly *4 O-ring
        *5 Nylon Tube - -
