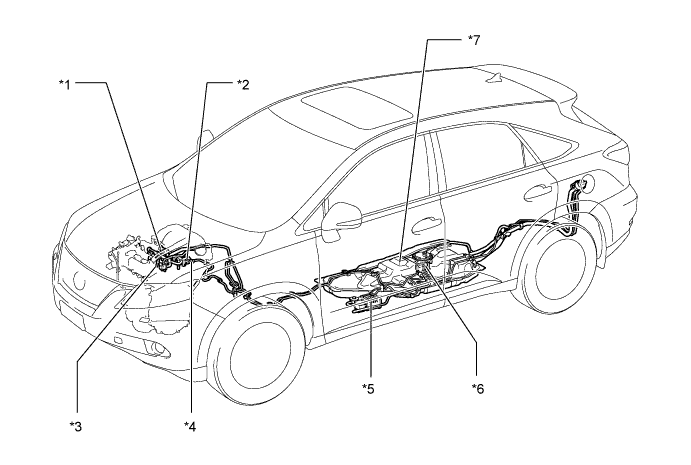

FUEL SYSTEM PARTS LOCATION
| *1 | Fuel Delivery Pipe Sub-assembly | *2 | Fuel Pressure Pulsation Damper Assembly |
| *3 | Fuel Injector Assembly | *4 | Quick Connector |
| *5 | Canister | *6 | Fuel Pump Module Assembly - Fuel Filter Assembly - Fuel Pressure Regulator Assembly - Fuel Sender Gauge Assembly - Fuel Pump |
| *7 | Fuel Tank Assembly | - | - |
