BRAKE CONTROL SYSTEM PARTS LOCATION

A019WV3E01
A019WPVE01
A019WMGE01
Text in Illustration

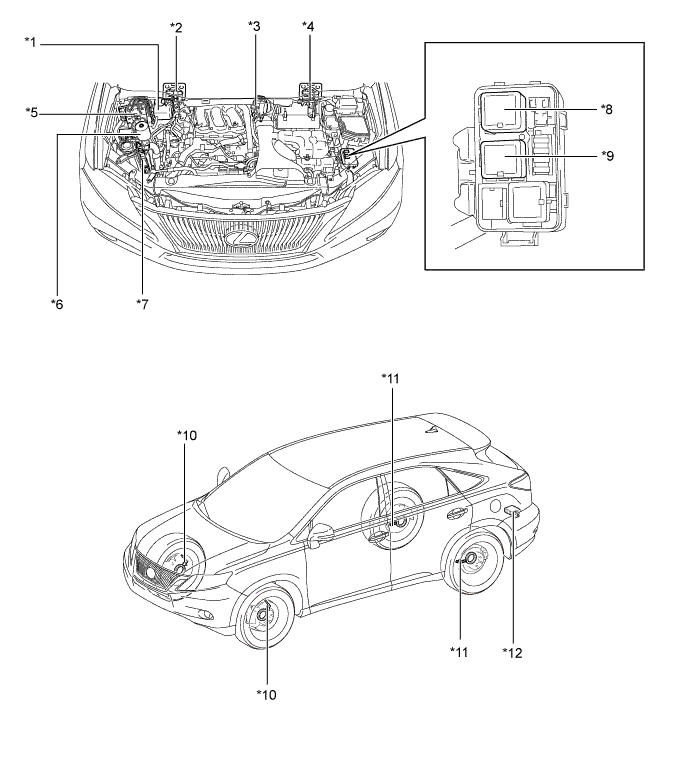

*1

  • Reservoir Tank


    • Brake Fluid Level Warning Switch

 *2 Brake Stroke Simulator Cylinder Assembly (For RHD)
*3

  • Throttle Body


    • Throttle Position Sensor


    • Throttle Control Motor

 *4 Brake Stroke Simulator Cylinder Assembly (For LHD)
*5 Brake Actuator *6

  • Brake Booster Pump Assembly


    • Accumulator


    • Pump Motor
*7 ECM *8 ECB MTR 1 Relay
*9 ECB MTR 2 Relay *10 Speed Sensor (For front)
*11 Speed Sensor (For rear) *12 Brake Control Power Supply Assembly

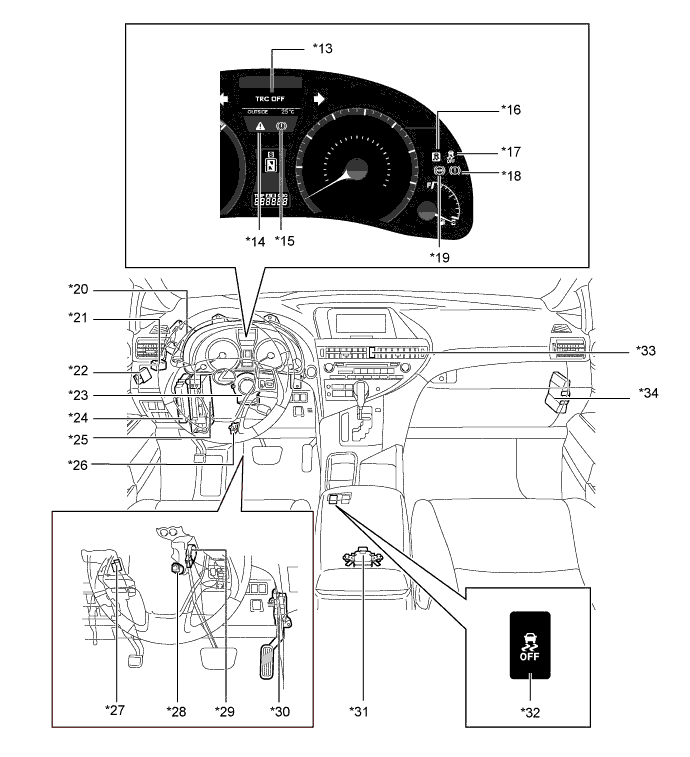

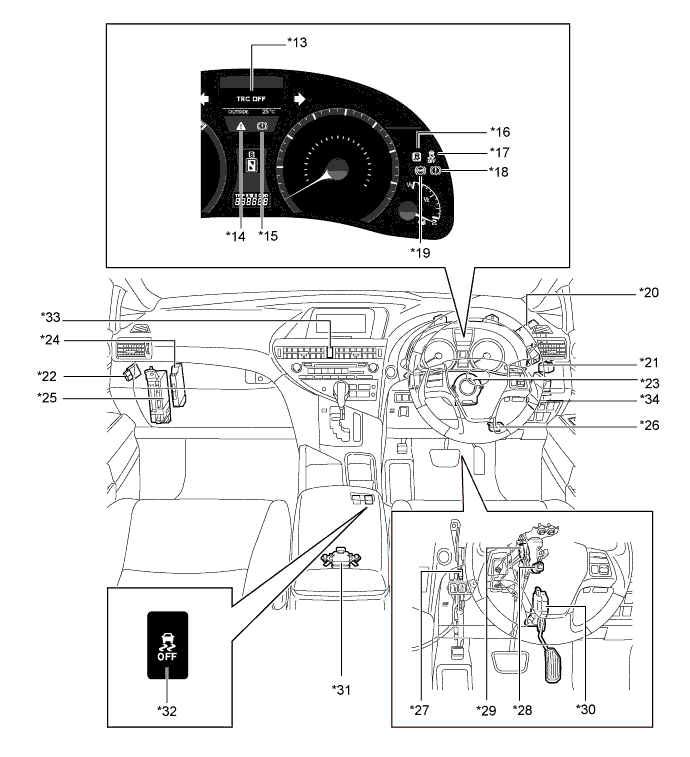

*13 Multi-information Display *14 Master Warning Light
*15 Brake Warning Light (Red Indicator) *16 Slip Indicator Light
*17 VSC OFF Indicator Light *18 Brake Warning Light (Yellow Indicator)
*19 ABS Warning Light *20 Power Steering ECU Assembly
*21 Skid Control Buzzer Assembly *22 Stop Light Control Relay Assembly
*23 Steering Angle Sensor *24 Power Management Control ECU
*25 Main Body ECU (Multiplex Network Body ECU) *26 DLC3
*27 Parking Brake Switch *28 Stop Light Switch
*29 Brake Pedal Stroke Sensor *30 Accelerator Pedal Position Sensor
*31 Yawrate Sensor *32 VSC OFF Switch
*33 Hazard Warning Switch *34 Skid Control ECU
