TIRE PRESSURE WARNING SYSTEM PARTS LOCATION

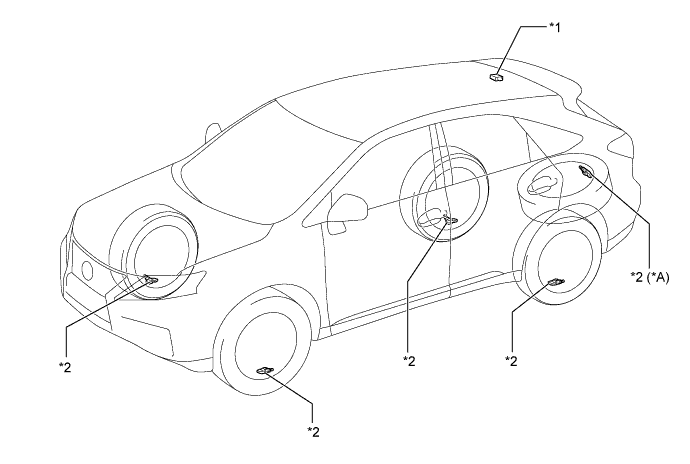

A019WDWE01
Text in Illustration
*A Models with Full Size Spare Tire - -
*1 Tire Pressure Monitor Receiver Assembly *2 Tire Pressure Monitor Valve Sub-assembly

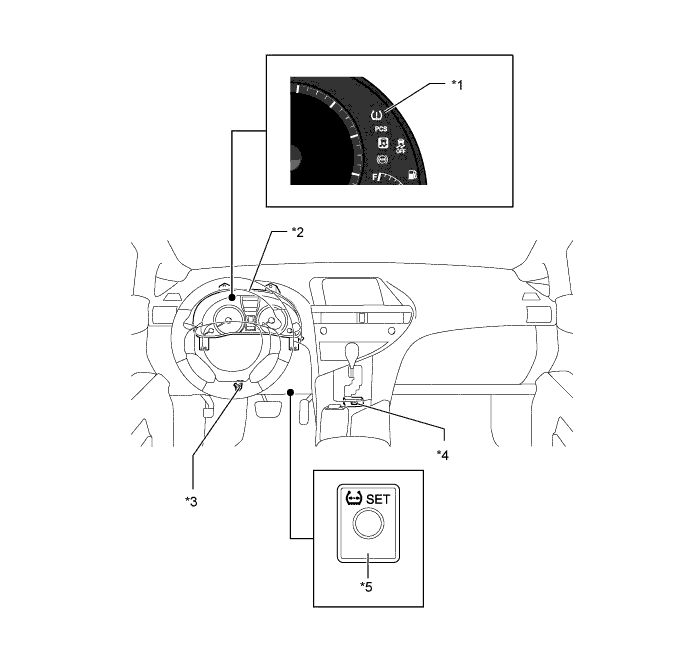

A019WP7E01
Text in Illustration (LHD Models:)
*1 Tire Pressure Warning Light *2

Combination Meter Assembly

- Multi-information Display
*3 DLC3 *4 Tire Pressure Warning ECU
*5 Tire Pressure Warning Reset Switch - -

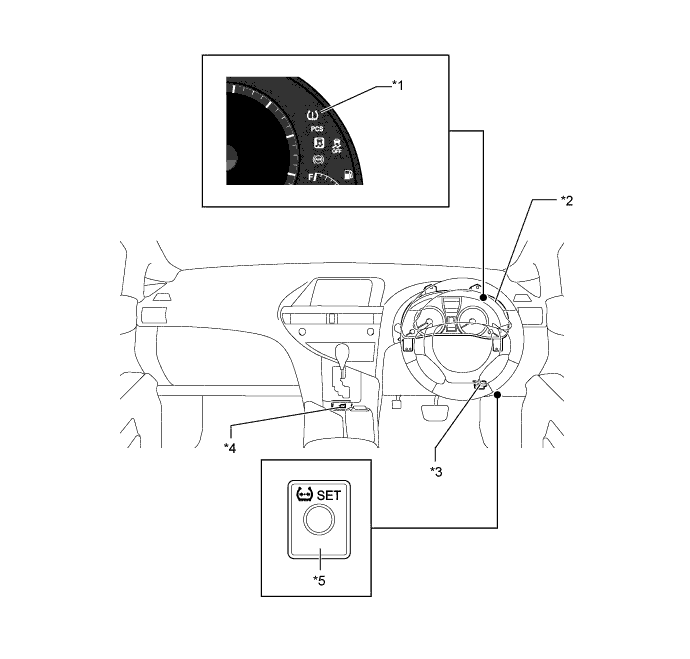

A019WH1E01
Text in Illustration (RHD Models:)
*1 Tire Pressure Warning Light *2

Combination Meter Assembly

- Multi-information Display
*3 DLC3 *4 Tire Pressure Warning ECU
*5 Tire Pressure Warning Reset Switch - -
