FEATURES PERFORMANCE


  1. OUTLINE


    1. LEXUS Hybrid Drive and E-Four System


      1. LEXUS Hybrid Drive optimally performs cooperative control of the high-output 2GR-FXE engine and high-speed, high-output Motor Generators (MG1 and MG2) in the P313 hybrid transaxle (hybrid vehicle transaxle assembly) that provides excellent transmission performance for the front wheel drive system.

      2. The E-Four system optimally controls the Motor Generator Rear (MGR) through a Q211 rear drive unit (rear traction motor with transaxle assembly) that provides excellent transmission performance for the rear wheel drive system.

      3. Furthermore, it uses a variable-voltage system consisting of a high-output HV battery assembly with a nominal voltage of DC 288 V, and a boost converter that boosts the operating voltage of the system to a maximum voltage of DC 650 V.

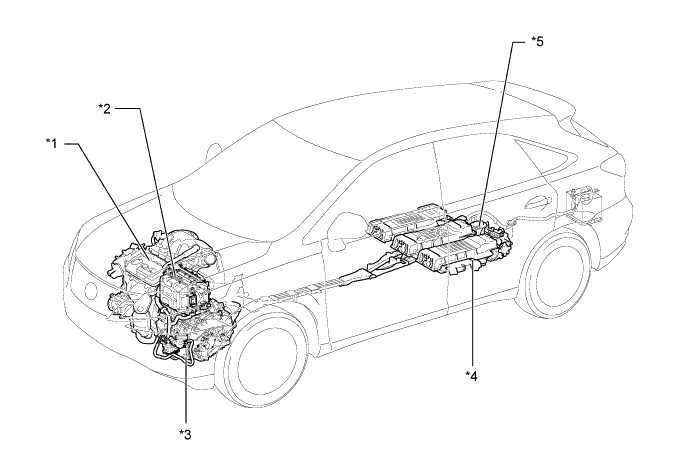

        A019WOTE01
        Text in Illustration
        *1 2GR-FXE Engine *2

        Inverter with Converter Assembly

        - Boost Converter
        *3

        P313 Hybrid Transaxle (Hybrid Vehicle Transaxle Assembly)

        - MG1 and MG2

        		 *4 HV Battery Assembly
        *5

        Q211 Rear Drive Unit (Rear Traction Motor with Transaxle Assembly)

        - MGR

        		 - -
        System Performance
        Maximum System Output* 220 kW (295 HP)

        *: Maximum system output is combined power of the engine and HV battery.

    2. 2GR-FXE Engine


      1. The 2GR-FXE engine is a 3.5-liter, 24-valve DOHC V6 engine. This engine uses the Variable Valve Timing-intelligent (VVT-i) system, Direct Ignition System (DIS), Electronic Throttle Control System-intelligent (ETCS-i) and cooled Exhaust Gas Recirculation (EGR) system. These control functions achieve improved engine performance, fuel economy, and clean emissions.

      2. The 2GR-FXE engine is a high-expansion ratio engine that uses the Atkinson cycle to achieve high thermal efficiency and support fuel economy.

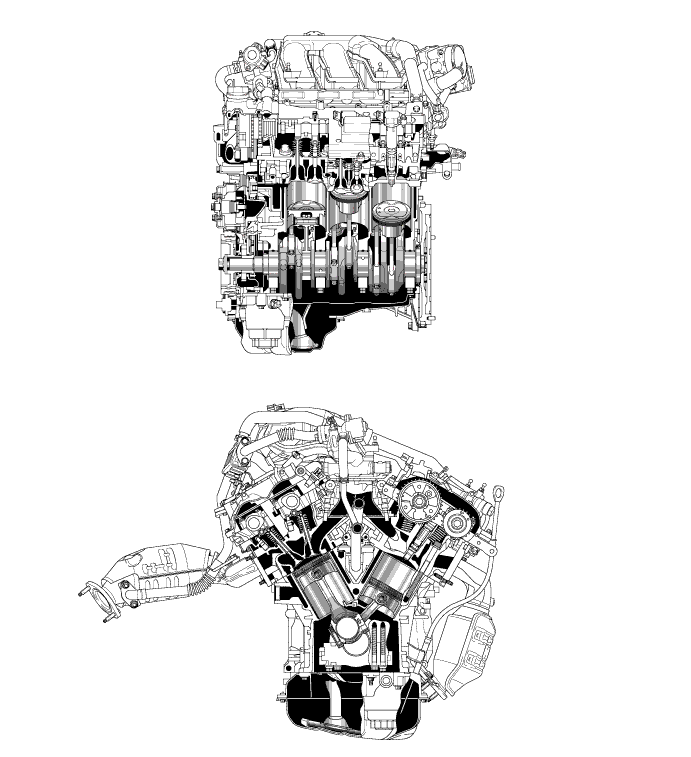

        A019WI7
        Item Specification
        No. of Cyls. & Arrangement 6-cylinder, V-Type
        Valve Mechanism 24-valve DOHC with VVT-i
        Fuel System SFI
        Displacement

        3456 cm3(210.9 cu. in.)
        Max. Output 183 kW@6000 rpm
        Max. Torque 317 N*m@4800 rpm

    3. P313 Hybrid Transaxle (Hybrid Vehicle Transaxle Assembly)


      1. The P313 hybrid transaxle (hybrid vehicle transaxle assembly) contains Motor Generator 1 (MG1) and Motor Generator 2 (MG2).

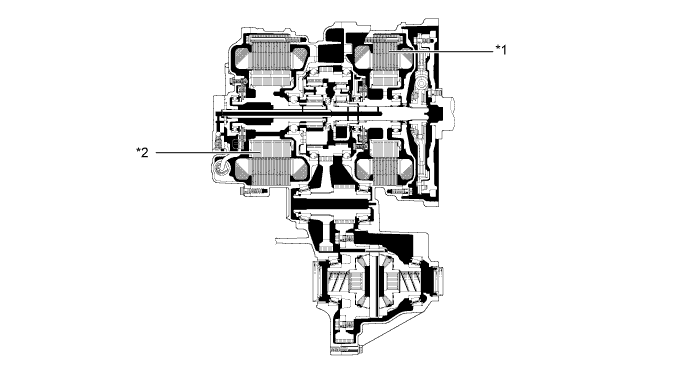

        A019WA6E01
        Text in Illustration
        *1 Motor Generator 1 (MG1) *2 Motor Generator 2 (MG2)
        Item Motor Generator 1 (MG1) Motor Generator 2 (MG2)
        Type Permanent Magnet Motor Permanent Magnet Motor
        Function Generate Electricity, Start Engine Generate Electricity, Drive Front Wheels
        Cooling System Oil-cooled Oil-cooled

    4. Q211 Rear Drive Unit (Rear Traction Motor with Transaxle Assembly) for AWD Models


      1. The Q211 rear drive unit (rear traction motor with transaxle assembly) contains Motor Generator Rear (MGR).

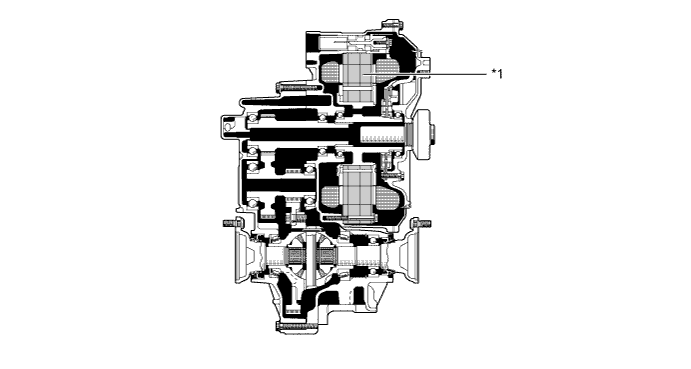

        A019WMBE01
        Text in Illustration
        *1 Motor Generator Rear (MGR) - -
        Item Motor Generator Rear (MGR)
        Type Permanent Magnet Motor
        Function Generate Electricity, Drive Rear Wheels
        Cooling System Air-cooled

    5. Suspension


      1. A MacPherson strut type independent suspension is used for the front.

      2. A trailing arm type double wishbone independent suspension is used for the rear.

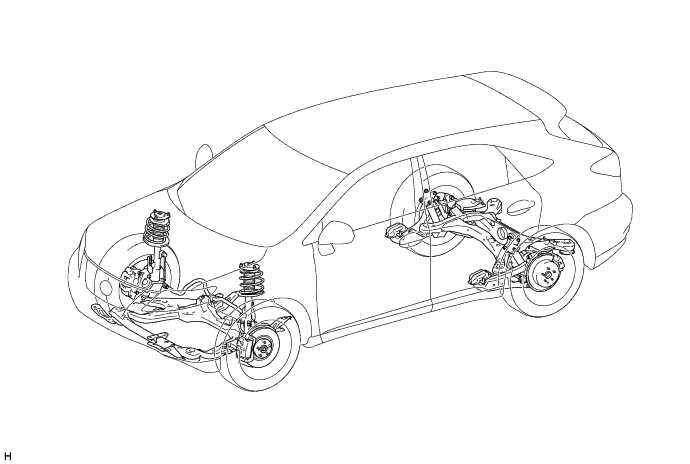

        A019W9V

    6. Air Suspension


      1. The air suspension uses pneumatic cylinders instead of the coil springs that are used in a conventional suspension.

      2. The pressures in the pneumatic cylinders are controlled by the height control compressor assembly, achieving both handling stability and improved vehicle accessibility.

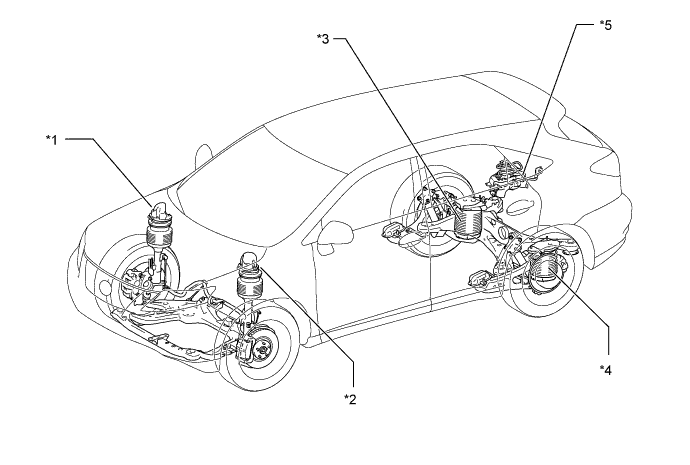

        A019WQ4E01
        Text in Illustration
        *1 Front Pneumatic Cylinder Assembly RH *2 Front Pneumatic Cylinder Assembly LH
        *3 Rear Pneumatic Cylinder Assembly RH *4 Rear Pneumatic Cylinder Assembly LH
        *5 Height Control Compressor Assembly - -

    7. Active Stabilizer Suspension System


      1. The active stabilizer suspension system controls the stabilizer electronically by using 2 active stabilizer control actuator assemblies to limit rolling when cornering.

      2. A pair of active stabilizer control actuator assemblies are provided, one each for the front and rear stabilizer bars for optimum control of the stabilizer force in accordance with vehicle posture. This reduces vehicle body roll when cornering, ensuring a stable turning position and high cornering performance.

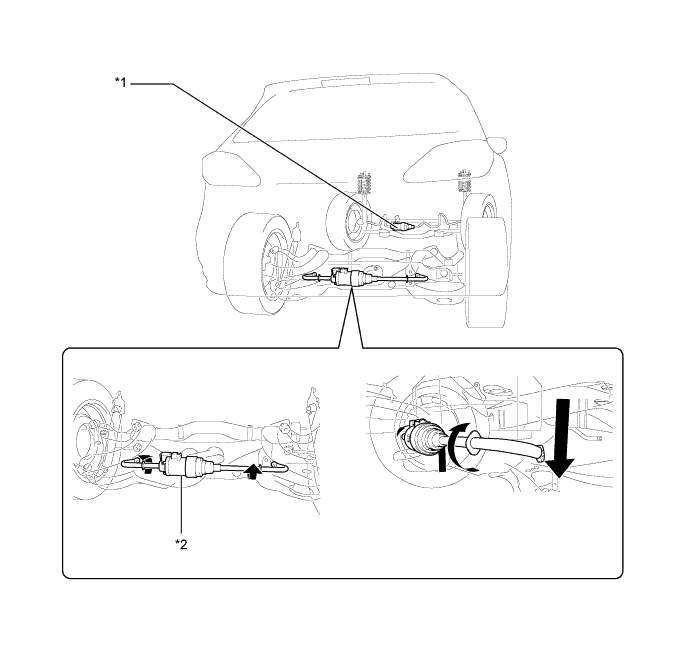

        A019WQ3E01
        Text in Illustration
        *1 Front Active Stabilizer Control Actuator Assembly *2 Rear Active Stabilizer Control Actuator Assembly

    8. Steering


      1. The Electric Power Steering (EPS) system uses a power steering motor, a power steering torque sensor and a reduction mechanism that are built into the steering column assembly to generate assist torque, in order to assist the driver's steering effort.

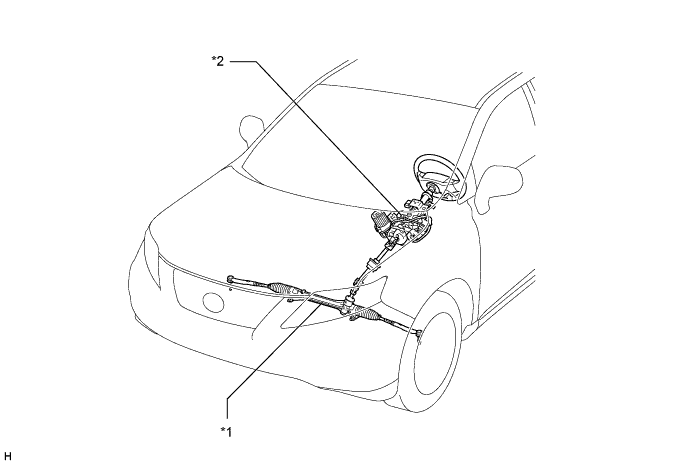

        A019WRSE01
        Text in Illustration
        *1 Steering Gear Assembly *2 Steering Column Assembly

    9. Brake

      Item Specification
      Front Brake Type Ventilated Disc
      Rotor Size (D X T)* Models for Europe 328 X 34 mm (12.9 X 1.3 in.)
      Destination Package for Australia, China and Others 328 X 28 mm (12.9 X 1.1 in.)
      Rear Brake Type Models for Europe Ventilated Disc
      Destination Package for Australia, China and Others Solid Disc
      Rotor Size (D X T)* Models for Europe 309 X 18 mm (12.2 X 0.7 in.)
      Destination Package for Australia, China and Others 309 X 10 mm (12.2 X 0.4 in.)
      Brake Control System

      • Electronically Controlled Brake System

      • Vehicle Dynamic Integrated Management (VDIM) and Hill-start Assist Control

      *: Diameter X Thickness
