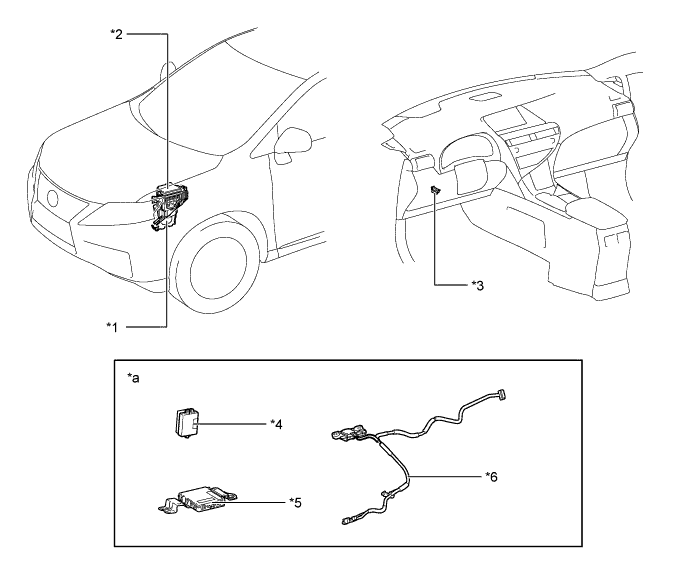

BLOCKING SYSTEM PARTS LOCATION
| *1 | ECM | *2 | Engine Room Junction Block Assembly |
| *3 | DLC3 | *4 | ID Code Box (Immobiliser Code ECU) |
| *5 | Telephone Transceiver Assembly - Mayday Battery |
*6 | Instrument Panel Integration Antenna Assembly - Telephone Antenna - GPS Antenna |
| *a | Refer to the Service Bulletin for the installation position of these parts. | - | - |
