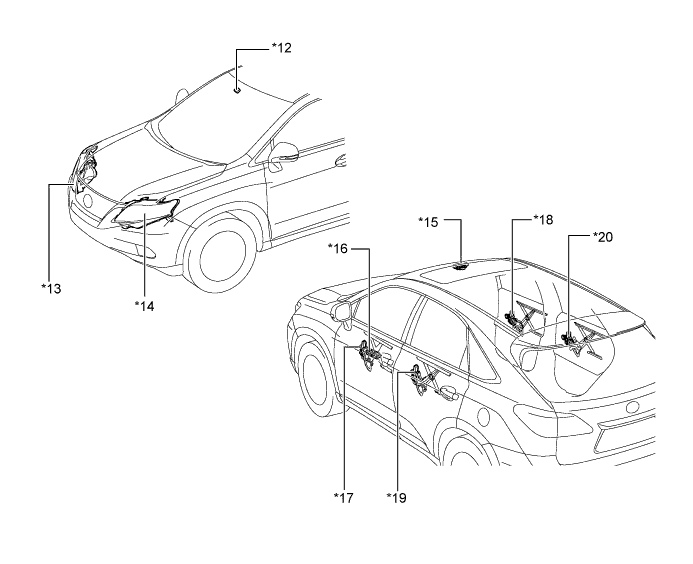

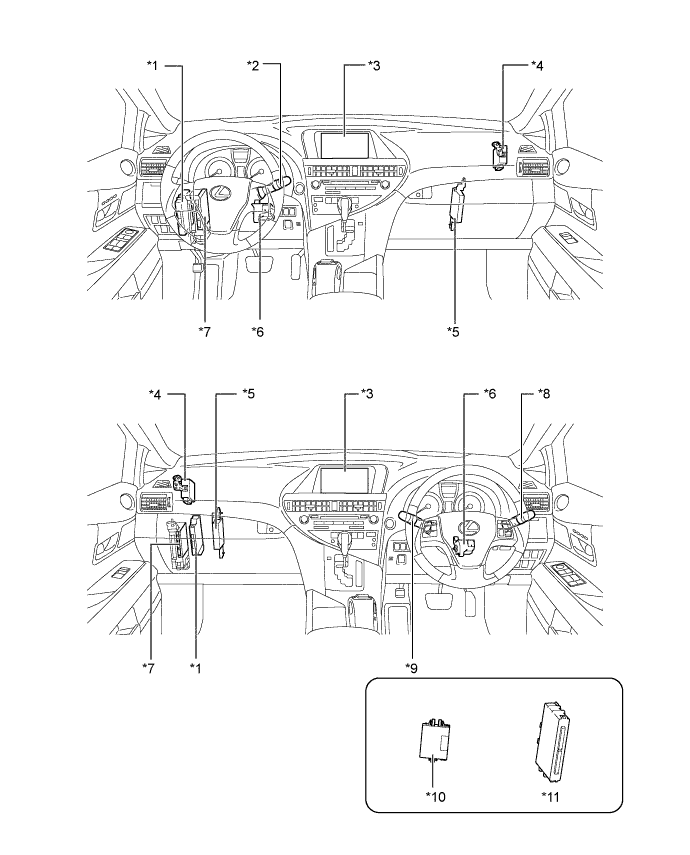

LIN COMMUNICATION SYSTEM PARTS LOCATION
| *1 | Power Management Control ECU | *2 | Windshield Wiper Switch Assembly |
| *3 | Accessory Meter Assembly | *4 | Double Lock Control ECU |
| *5 | Air Conditioning Amplifier | *6 | Steering Lock Actuator Assembly (Steering Lock ECU) |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | Windshield Wiper Switch Assembly (Except RHD Models for Europe) |
| *9 | Windshield Wiper Switch Assembly (RHD Models for Europe) | *10 | ID Code Box (Immobiliser Code ECU)* |
| *11 | Certification ECU (Smart Key ECU Assembly)* | *12 | Rain Sensor |
| *13 | Headlight Assembly RH - Headlight Swivel Motor - Headlight Leveling Motor |
*14 | Headlight Assembly LH - Headlight Swivel Motor - Headlight Leveling Motor |
| *15 | Sliding Roof Drive Gear Sub-assembly (Sliding Roof ECU) | *16 | Multiplex Network Master Switch Assembly |
| *17 | Power Window Regulator Motor Assembly (Front LH) | *18 | Power Window Regulator Motor Assembly (Front RH) |
| *19 | Power Window Regulator Motor Assembly (Rear LH) | *20 | Power Window Regulator Motor Assembly (Rear RH) |
*: Refer to the Service Bulletin for the installation position of the part.
