COOLING SYSTEM GENERAL


  1. OUTLINE


    1. The cooling system is a pressurized, forced-circulation type. The reservoir tank is not pressurized.

    2. A thermostat with a bypass valve is located in the water inlet housing to maintain suitable temperature distribution in the cooling system.

    3. A cooling fan control system in which the ECM optimally controls cooling fan speed is used. For details, Click here.

    4. TOYOTA genuine Super Long Life Coolant (SLLC) is used.

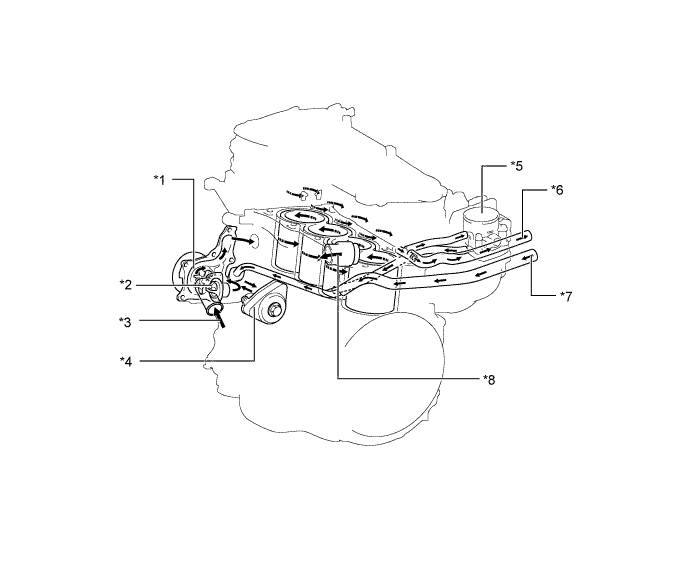

      A019Q87E01
      Text in Illustration
      *1 Water Pump *2 Thermostat
      *3 From Radiator *4 Oil Cooler Assembly (Optional Equipment)
      *5 Throttle with motor Body Assembly *6 To Heater Core
      *7 From Heater Core *8 To Radiator

  2. SPECIFICATION


    1. Engine Coolant


      1. TOYOTA genuine Super Long Life Coolant (SLLC) is used. The maintenance interval is as shown in the table below:

        Coolant Type TOYOTA Genuine SLLC or the Following
        Maintenance Intervals First Time 160000 km (100000 miles)
        Subsequent Every 80000 km (50000 miles)
        Color Pink

        Tech Tips

        Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non borate coolant with long-life hybrid organic acid technology. (Coolant with long-life hybrid organic acid technology consists of a combination of low phosphates and organic acids.)

      2. SLLC is pre-mixed (50 % coolant and 50 % deionized water), and therefore does not need to be diluted.

      3. If LLC (red-colored) is mixed with SLLC (pink-colored), the interval for LLC (every 40000 km (24000 miles) or 24 months whichever comes first) should be used.

    2. Thermostat

      Thermostat Opening Temperature 80 to 84 °C (176 to 183 °F)
