INTAKE SYSTEM DETAILS


  1. CONSTRUCTION


    1. Air Cleaner Assembly


      1. A paper type air cleaner filter element is used.

      2. Along with the use of the air intake control system, an air intake control valve is provided on the air cleaner case sub-assembly.

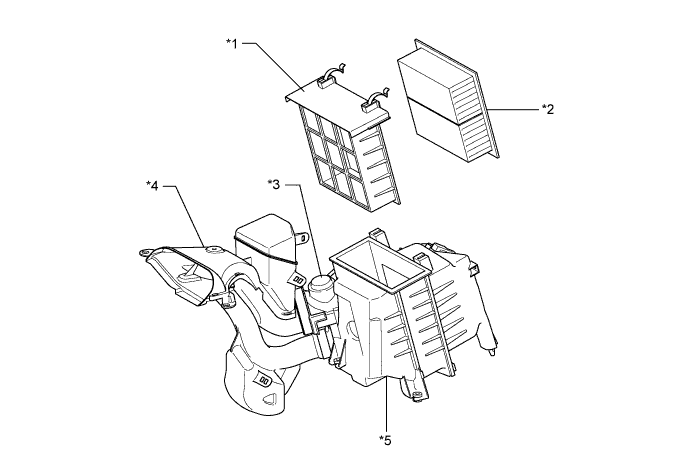

        A019PXWE01
        Text in Illustration
        *1 Air Cleaner Cap Sub-assembly *2 Air Cleaner Filter Element Sub-assembly (Paper Type)
        *3 Actuator (For Air Intake Control) *4 Air Cleaner Inlet Assembly
        *5 Air Cleaner Case Sub-assembly - -

    2. Throttle Body


      1. A cable-less type throttle body in which the throttle position sensor and the throttle control motor are integrated is used. It realizes excellent throttle valve control.

      2. The throttle control motor uses a DC motor with excellent response and minimal power consumption. The ECM performs duty ratio control of the direction and the amperage of the current that flows to the throttle control motor in order to regulate the throttle valve angle.

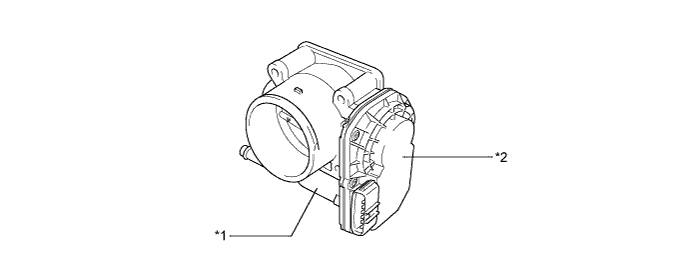

        A019PNXE01
        Text in Illustration
        *1 Throttle Control Motor *2 Throttle Position Sensor

    3. Intake Air Surge Tank


      1. The intake air surge tank is made of plastic to realize a lightweight construction.

      2. The intake air surge tank consists of an upper and lower section and contains an intake air control valve. This valve is activated by Acoustic Control Induction System (ACIS) and is used to alter the intake pipe length to improve the engine performance in all engine speed ranges.

      3. The ACIS actuator uses an electric actuator and is laser-welded onto the intake air surge tank. Many of the components are made of plastic for weight reduction.

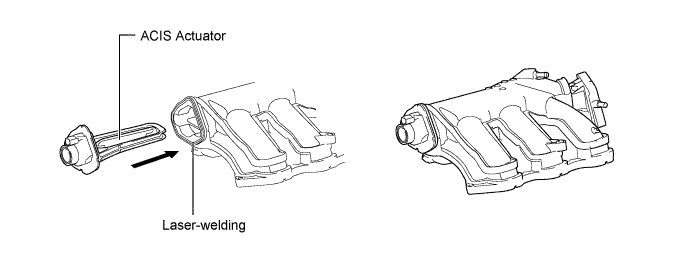

        A019Q9YE03

        Tech Tips

        Laser-welding: In laser-welding, a laser-absorbing material (intake air surge tank) is joined to a material that allows the laser light to pass through (ACIS actuator). Laser beams are then transmitted from the ACIS actuator side. The beams penetrate the ACIS actuator material to heat and melt the surface of the laser-absorbing material. Then, the heat of the laser-absorbing material melts the ACIS actuator material and causes both materials to become welded.

    4. Intake Manifold


      1. A light weight aluminum alloy is used for the intake manifold.

      2. The No. 1 and No. 2 intake manifold to head gaskets have a rubber coating applied to their surfaces. They provide superior durability.

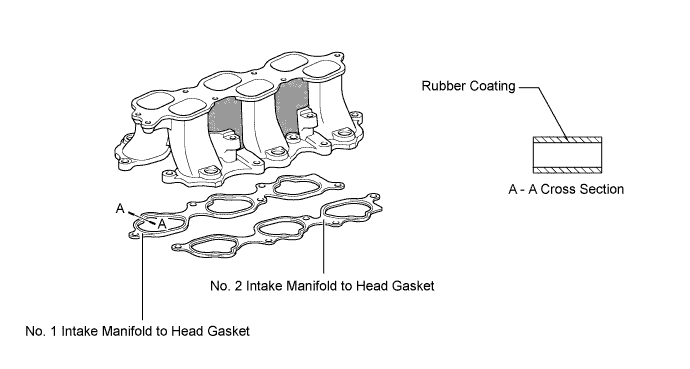

        A019PX5E03
