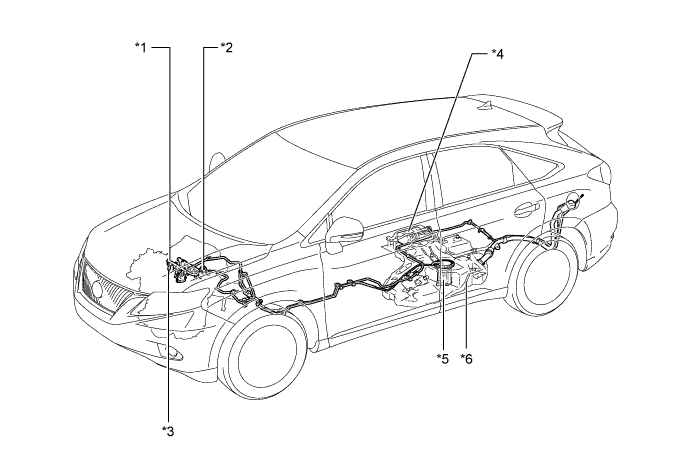

FUEL SYSTEM PARTS LOCATION

A019PN8E01
Text in Illustration
*1 Fuel Delivery Pipe Sub-assembly *2 Quick Connector
*3 Fuel Injector Assembly *4 Charcoal Canister Assembly
*5

  • Fuel Pump Module Assembly


    • Fuel Filter Assembly

    • Fuel Pressure Regulator Assembly

    • Fuel Sender Gauge Assembly

    • Fuel Pump

 *6 Fuel Tank Assembly
