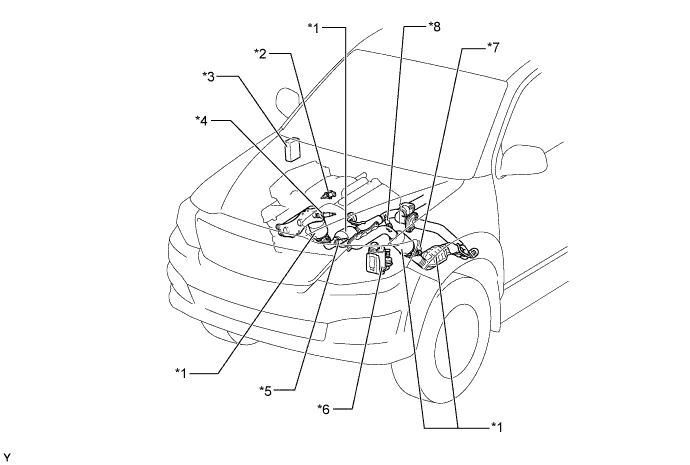

СИСТЕМА СНИЖЕНИЯ ТОКСИЧНОСТИ ОТРАБОТАВШИХ ГАЗОВ РАСПОЛОЖЕНИЕ ДЕТАЛЕЙ
| *1 | TWC | *2 | VSV (for EVAP) |
| *3 | ECM | *4 | Air Fuel Ratio Sensor (Bank 1, Sensor 1) |
| *5 | Oxygen Sensor (Bank 1, Sensor 2) | *6 | Canister |
| *7 | Oxygen Sensor (Bank 2, Sensor 2) | *8 | Air Fuel Ratio Sensor (Bank 2, Sensor 1) |
