NAVIGATION SYSTEM / MULTI INFORMATION SYSTEM PARTS LOCATION

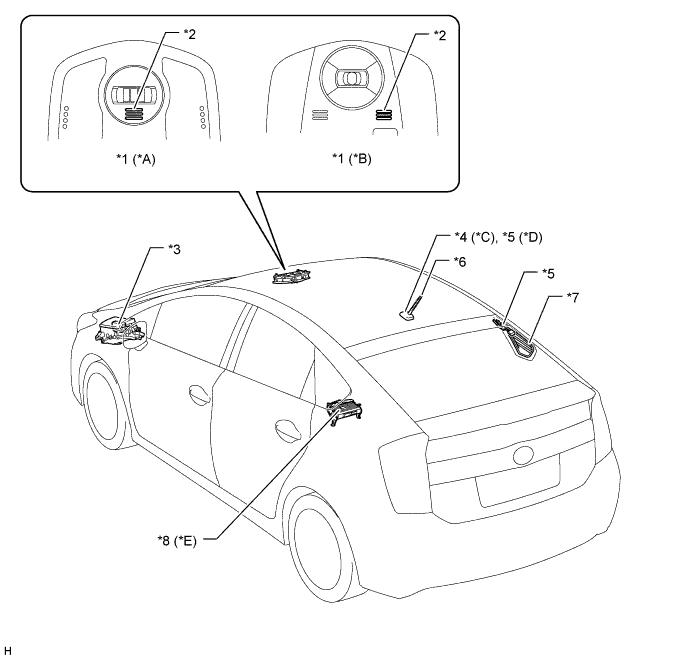

| *A | Models without Intrusion sensor | *B | Models with Intrusion sensor |
| *C | Models with HDD Navigation System for Europe or Australia | *D | Except Models with HDD Navigation System for Europe or Australia |
| *E | Models with 8-speaker System | - | - |
| *1 | Map Light Assembly | *2 | Telephone Microphone Assembly |
| *3 | No. 1 Integration Relay | *4 | Amplifier Antenna Assembly - Digital Audio Broadcasting Antenna |
| *5 | Amplifier Antenna Assembly | *6 | Roof Antenna Pole Sub-assembly - AM - FM |
| *7 | Window Glass Antenna - FM-sub |
*8 | Stereo Component Amplifier Assembly |

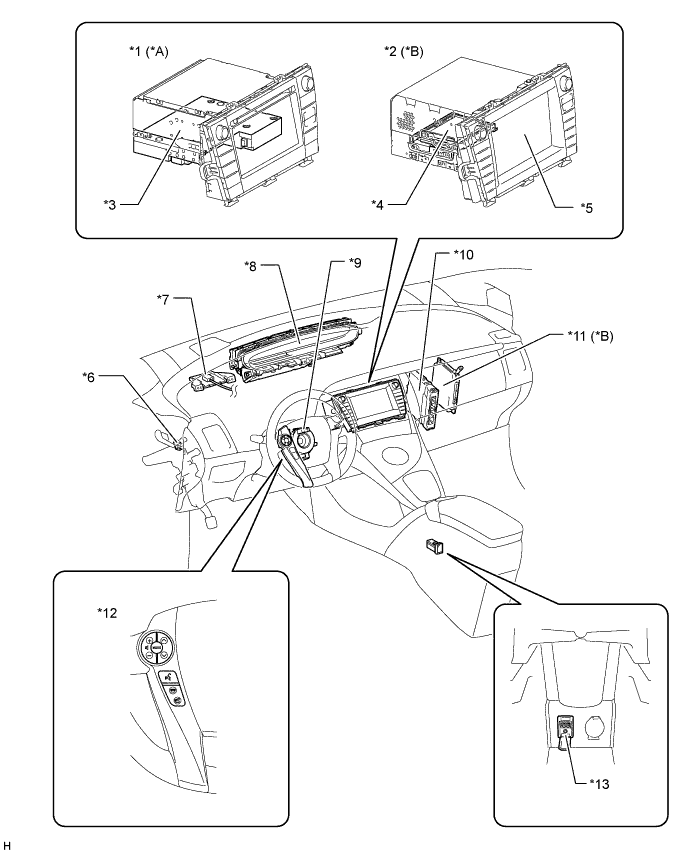

| *A | Models with Touch Screen System | *B | Models with HDD Navigation System |
| *1 | Radio and Display Receiver Assembly | *2 | Navigation Receiver Assembly |
| *3 | Extension Module | *4 | Hard Disk Drive (HDD) |
| *5 | Navigation ECU Sub-assembly | *6 | Parking Brake Switch Assembly |
| *7 | Navigation Antenna Assembly | *8 | Combination Meter Assembly |
| *9 | Spiral Cable with Sensor Sub-assembly | *10 | Power Management Control ECU |
| *11 | Parking Assist ECU | *12 | Steering Pad Switch Assembly - Volume - Seek - Mode - Voice (Models with Voice Recognition System) - Telephone |
| *13 | No. 1 Stereo Jack Adapter Assembly | - | - |
| *A | Models with Touch Screen System | *B | Models with HDD Navigation System |
| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode - Voice (Models with Voice Recognition System) - Telephone |
*2 | Power Management Control ECU |
| *3 | Combination Meter Assembly | *4 | Parking Brake Switch Assembly |
| *5 | Navigation Antenna Assembly | *6 | Parking Assist ECU |
| *7 | Spiral Cable with Sensor Sub-assembly | *8 | No. 1 Stereo Jack Adapter Assembly |
| *9 | Radio and Display Receiver Assembly | *10 | Extension Module |
| *11 | Navigation Receiver Assembly | *12 | Hard Disk Drive (HDD) |
| *13 | Navigation ECU Sub-assembly | - | - |
