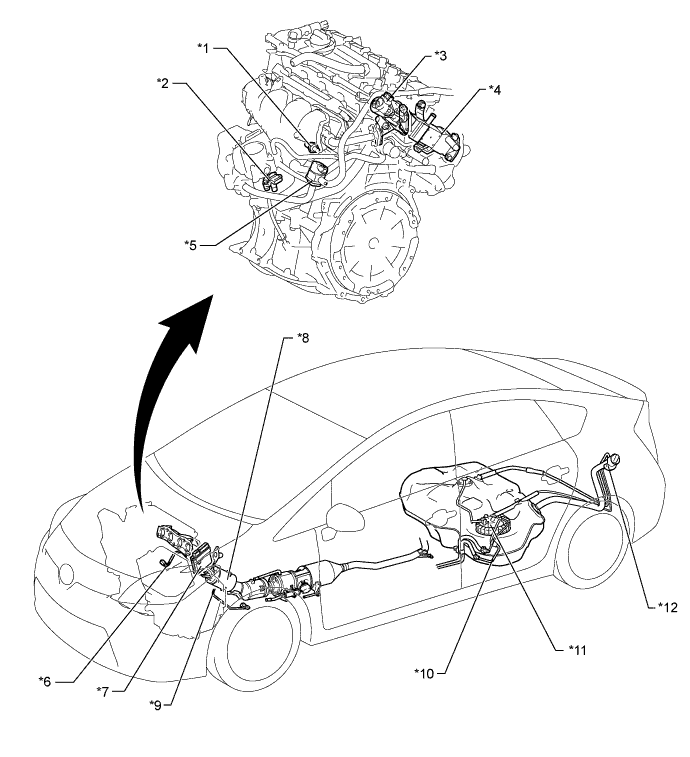

EMISSION CONTROL SYSTEM PARTS LOCATION
| *1 | PCV Valve | *2 | E. F. I. Vacuum Sensor Assembly |
| *3 | EGR Valve Assembly | *4 | EGR Cooler |
| *5 | Purge VSV | *6 | Air Fuel Ratio Sensor |
| *7 | ECM | *8 | Front Exhaust Pipe Assembly - TWC |
| *9 | Oxygen Sensor | *10 | Purge Air Line |
| *11 | Fuel Suction Tube with Pump and Gauge Assembly - Charcoal Canister |
*12 | Canister Filter |
