CAN COMMUNICATION SYSTEM

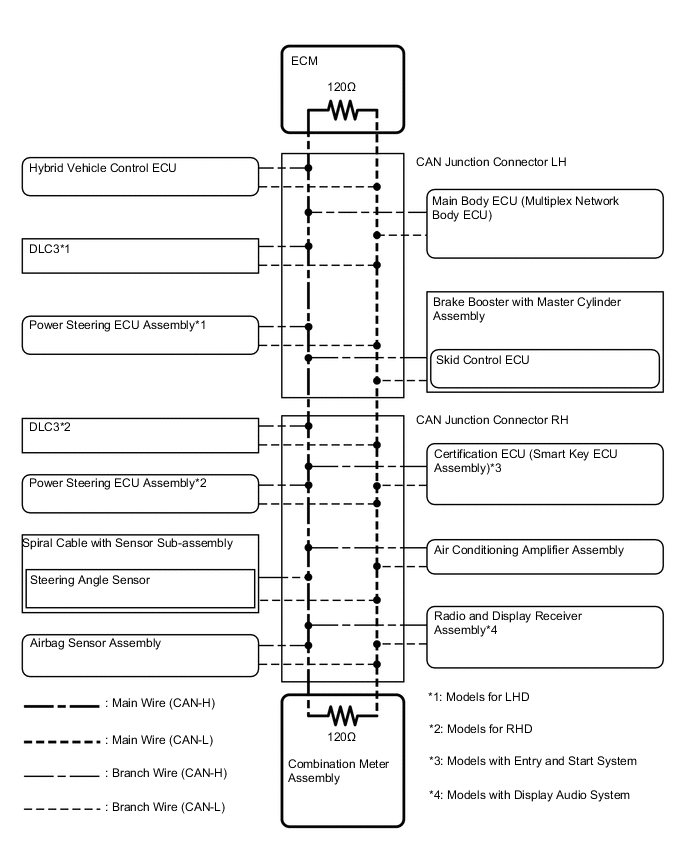

Figure 1. V Bus (Models without Toyota Safety Sense)

A0046HQE03

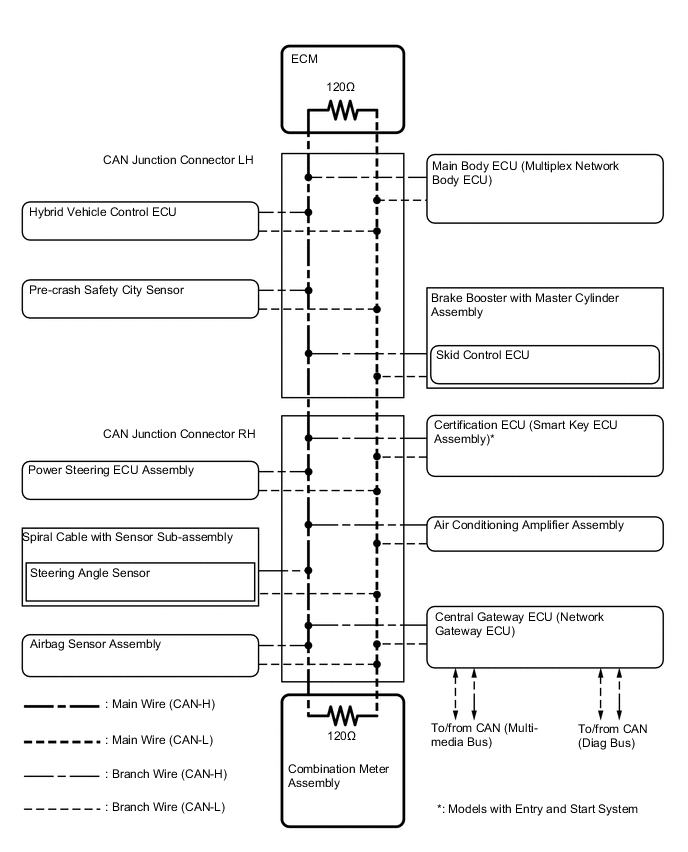

Figure 2. V Bus (Models with Toyota Safety Sense)

A0046M3E03

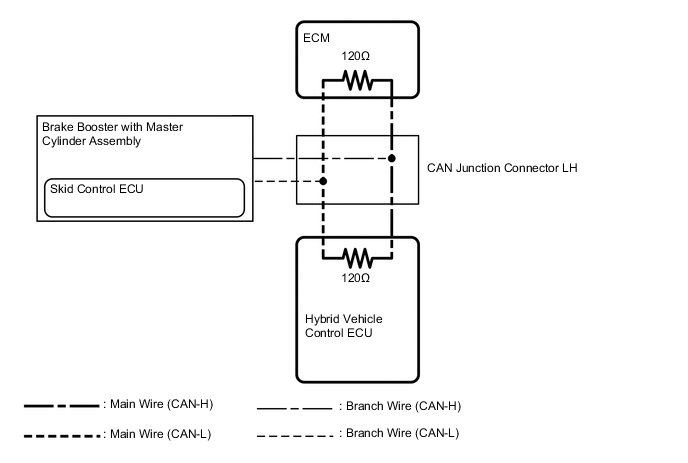

Figure 3. Sub Bus 15

A0046OIE03

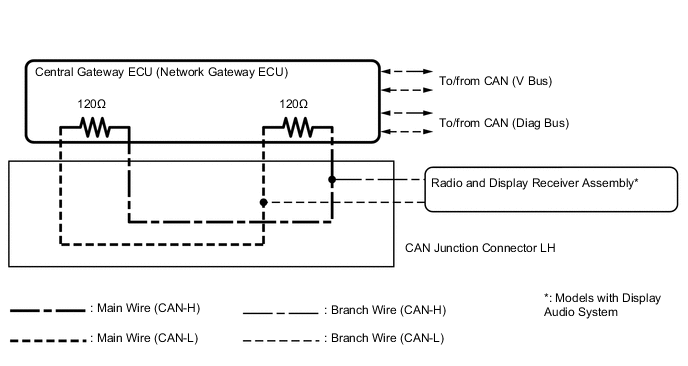

Figure 4. Multi-media Bus (Models with Toyota Safety Sense)

A0046B2E07

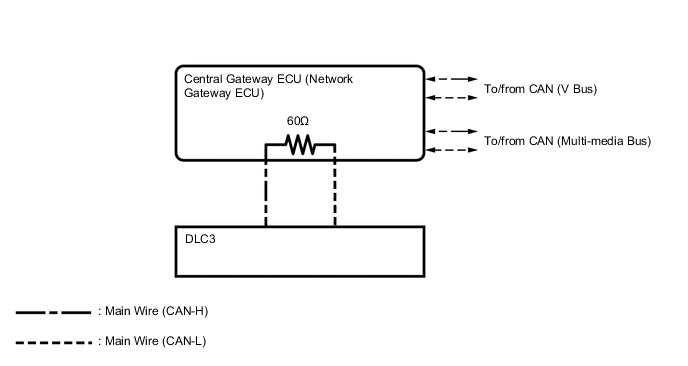

Figure 5. Diag Bus (Models with Toyota Safety Sense)

A0046JXE09

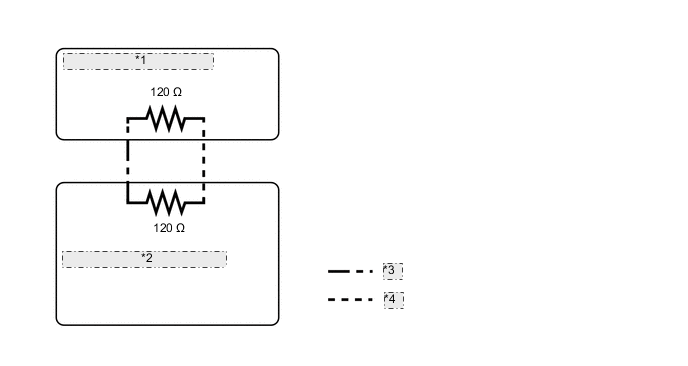

Figure 6. Multi-media Local Bus (Models with Color type Multi-information Display)

A0046O0E04
*1 Combination Meter Assembly
*2 Radio and Display Receiver Assembly
*3 Main Wire (CAN-H)
*4 Main Wire (CAN-L)
