AUDIO AND VISUAL SYSTEM

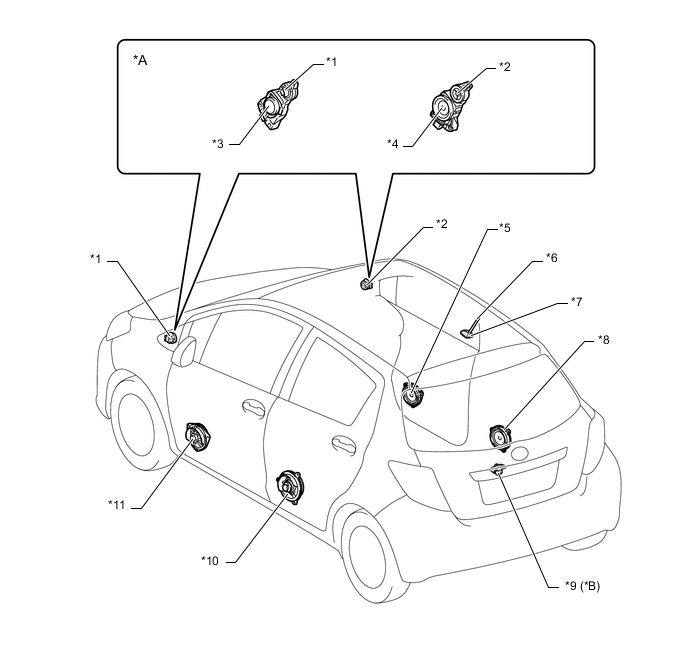

| *A | Models with 8-speaker System | *B | Models with Parking Assist Monitor System |
| *1 | No. 2 Front Speaker Assembly LH | *2 | No. 2 Front Speaker Assembly RH |
| *3 | No. 3 Front Speaker Assembly LH | *4 | No. 3 Front Speaker Assembly RH |
| *5 | No. 1 Front Speaker Assembly RH | *6 | Roof Antenna Pole Sub-assembly |
| *7 | Amplifier Antenna Assembly | *8 | No. 1 Rear Speaker Assembly RH |
| *9 | Rear Television Camera Assembly | *10 | No. 1 Rear Speaker Assembly LH |
| *11 | No. 1 Front Speaker Assembly LH | - | - |

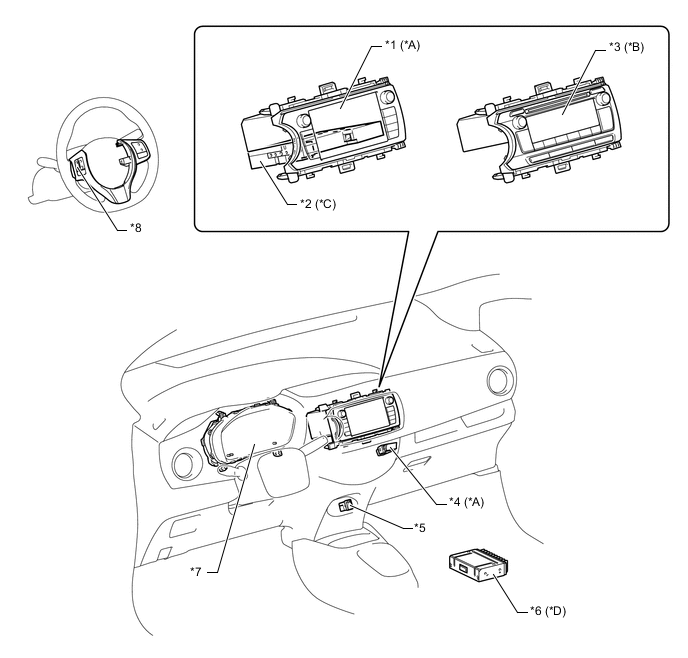

| *A | Models with Display Audio System or Navigation System | *B | Models with Base Audio System |
| *C | Models with Navigation ECU | *D | Models with 8-speaker System |
| *1 | Radio and Display Receiver Assembly | *2 | Extension Box (Navigation ECU) |
| *3 | Radio Receiver Assembly | *4 | Amplifier Microphone Assembly |
| *5 | No. 1 Stereo Jack Adapter Assembly | *6 | Stereo Component Amplifier Assembly |
| *7 | Combination Meter Assembly | *8 | Steering Pad Switch Assembly |
