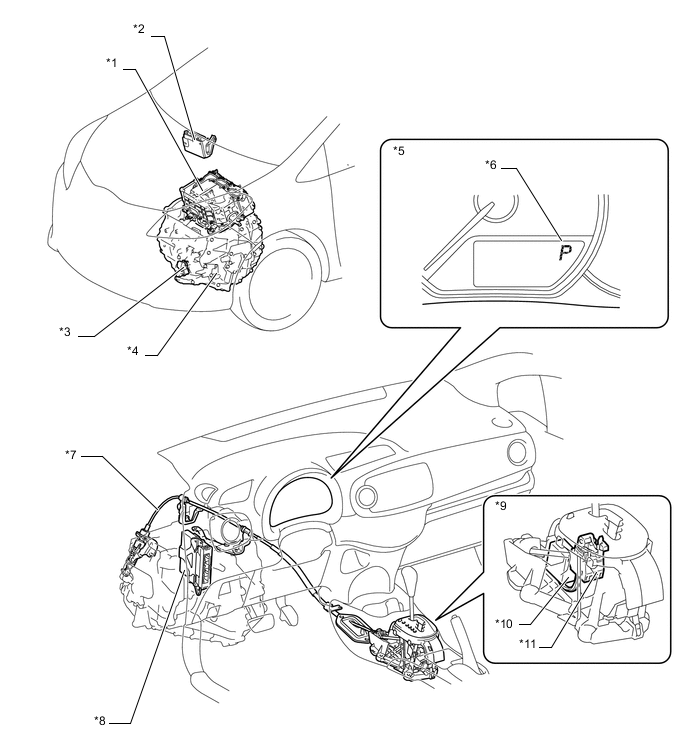

HYBRID TRANSAXLE SYSTEM
| *1 | ECM | *2 |
|
| *3 | Shift Lever Position Sensor | *4 | P510 Hybrid Vehicle Transaxle Assembly |
| *5 | Combination Meter Assembly | *6 | Shift Position Display |
| *7 | Transmission Control Cable Assembly | *8 | Power Management Control ECU |
| *9 | Shift Lock Control Unit Assembly | *10 | Shift Lock Control ECU Sub-assembly |
| *11 | Shift Lock Solenoid | - | - |
