СИСТЕМА СМАЗКИ ОБЩИЕ СВЕДЕНИЯ


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and all oil passes through an oil filter.

    2. A trochoid gear type oil pump is used.

    3. This engine has an oil return system in which the oil is force-fed to the upper cylinder head sub-assembly and returns to the oil pan sub-assembly through the oil return holes in the cylinder head sub-assembly.

    4. This engine uses a Dual Variable Valve Timing-intelligent (Dual VVT-i) system. This system is operated by the engine oil.

    5. An oil filter with a replaceable element is used.

      A01FPAWE01

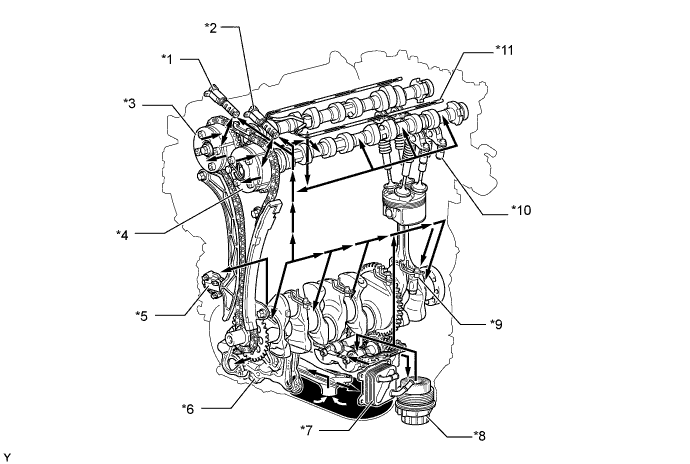

      Text in Illustration
      *1 Camshaft Timing Oil Control Valve Assembly (Intake) *2 Camshaft Timing Oil Control Valve Assembly (Exhaust)
      *3 Intake VVT-i Controller (Camshaft Timing Gear Assembly) *4 Exhaust VVT-i Controller (Camshaft Timing Exhaust Gear Assembly)
      *5 No. 1 Chain Tensioner Assembly *6 Oil Pump Assembly
      *7 Oil Cooler Assembly *8 Oil Filter Assembly
      *9 No. 2 Oil Nozzle Sub-assembly *10 Valve Lash Adjuster Assembly
      *11 Oil Delivery Pipe - -
