THEFT DETERRENT PARTS LOCATION

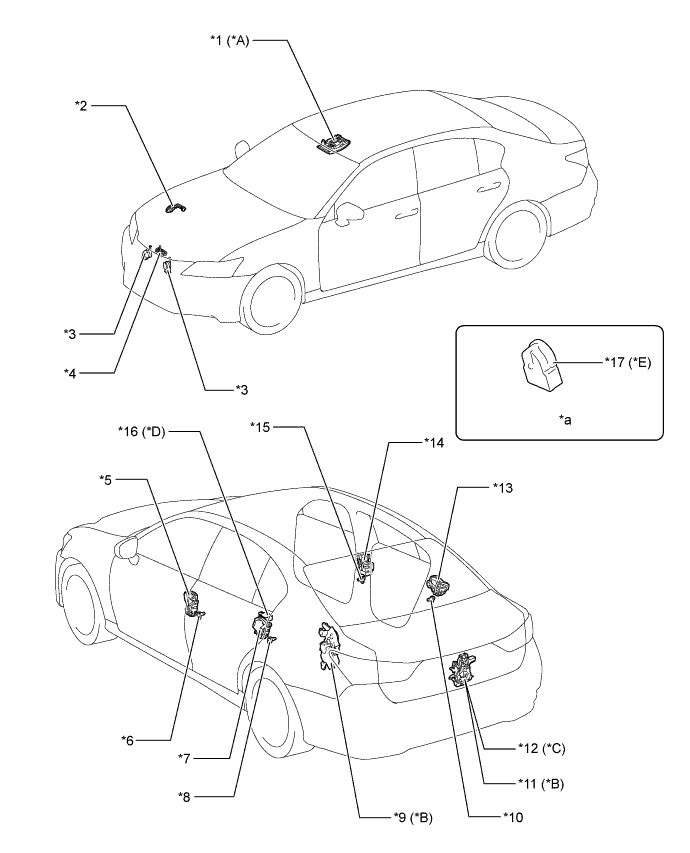

| *A | Models with Theft Warning Radar Sensor | *B | Models with Power Trunk Lid System |
| *C | Models without Power Trunk Lid System | *D | Models with Tilt Sensor |
| *E | Models with Theft Warning Siren Assembly | - | - |
| *1 | Map Light Assembly - Theft Warning Radar Sensor - Theft Warning Radar Sensor Cancel Switch |
*2 | Security Horn Assembly |
| *3 | Horn Assembly | *4 | Hood Lock Assembly - Courtesy Light Switch |
| *5 | Front Door Lock Assembly LH - Door Lock Motor - Door Unlock Detection Switch |
*6 | Front Door Courtesy Light Switch Assembly LH |
| *7 | Rear Door Lock Assembly LH - Door Lock Motor - Door Unlock Detection Switch |
*8 | Rear Door Courtesy Light Switch Assembly LH |
| *9 | Luggage Closer Motor Assembly - Multiplex Network Door ECU |
*10 | Rear Door Courtesy Light Switch Assembly RH |
| *11 | Luggage Door Closer Assembly - Luggage Door Closer Motor - Courtesy Light Switch |
*12 | Luggage Compartment Door Lock Assembly - Luggage Compartment Door Lock Motor - Courtesy Light Switch |
| *13 | Rear Door Lock Assembly RH - Door Lock Motor - Door Unlock Detection Switch |
*14 | Front Door Lock Assembly RH - Door Lock Motor - Door Unlock Detection Switch |
| *15 | Front Door Courtesy Light Switch Assembly RH | *16 | Yawrate Sensor - Tilt Sensor |
| *17 | Theft Warning Siren Assembly | - | - |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |

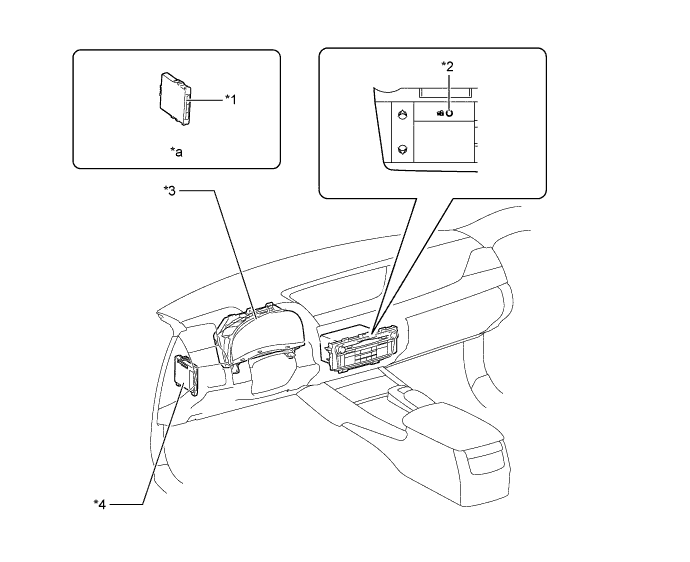

| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | Security Indicator Light |
| *3 | Combination Meter Assembly | *4 | Main Body ECU (Multiplex Network Body ECU) |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |
