DRIVE SHAFT SYSTEM GENERAL


  1. OUTLINE


    1. A cross groove type Constant-Velocity Joint (CVJ) is used. Also, a hollow shaft is used, thus simultaneously ensuring rigidity and achieving weight reduction.

    2. A type that couples directly to the differential is used for weight reduction.

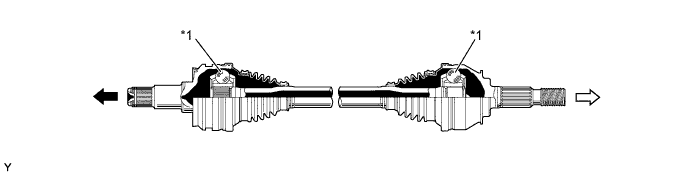

      A01FP40E01
      Text in Illustration
      *1 Cross Groove Type CVJ - -
      A01FPED Rear Differential Side A01FPJH Wheel Side
