HYBRID TRANSMISSION SYSTEM PARTS LOCATION
| *1 | Inverter with Converter Assembly - Inverter - Boost Converter - Motor Generator ECU (MG ECU) |
*2 | Oil Pump Motor Controller |
| *3 | ECM | *4 | Battery Smart Unit |
| *5 | L110 Hybrid Transmission (Hybrid Vehicle Transmission Assembly) - Motor Generator 1 (MG1) - Motor Generator 2 (MG2) - Compound Gear Unit |
*6 | Valve Body Unit - Solenoid Valves SL1/SL2 - Solenoid Valve SP - Oil Pressure Switch - ATF Temperature Sensor |
| *7 | Oil Pressure Sensor | *8 | Transmission Revolution Sensor |
| *9 | Resolver | *10 | Shift Lever Position Sensor |
| *11 | Oil Pump with Motor Assembly | - | - |

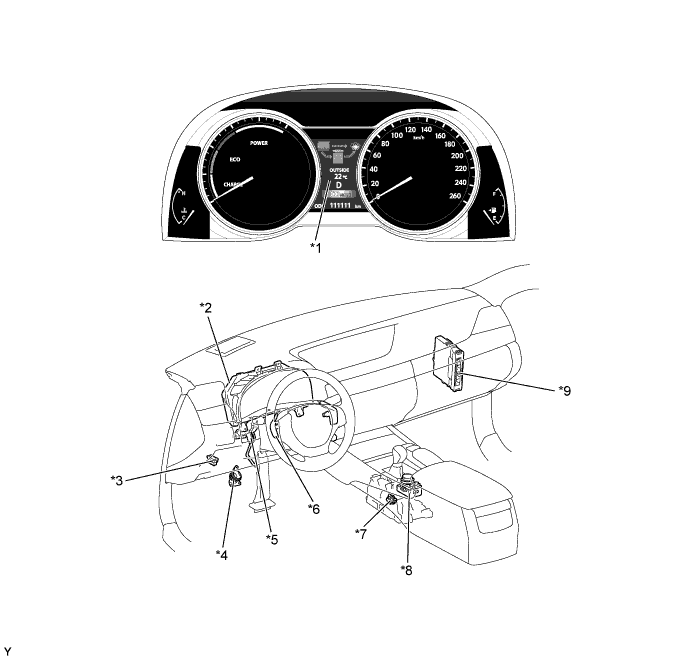

| *1 | Multi-information Display | *2 | Combination Meter Assembly - Meter Panel Illumination - Multi Buzzer |
| *3 | DLC3 | *4 | Kick Down Switch Assembly |
| *5 | Accelerator Pedal Position Sensor | *6 | Shift Paddle Switch (Transmission Shift Switch Assembly) |
| *7 | Transmission Control Switch | *8 | Combination Switch Assembly - Drive Mode Select - SNOW Mode Switch (except Models for G.C.C. Countries) |
| *9 | Power Management Control ECU | - | - |
