FUEL SYSTEM

A001YLEE02

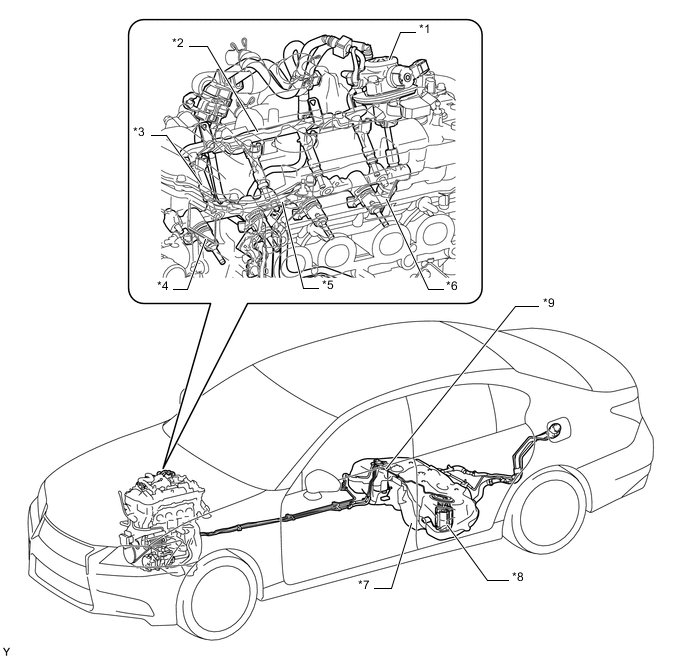

Text in Illustration
*1 Fuel Pump Assembly (for High Pressure) *2 Fuel Delivery Pipe Sub-assembly (for Port Injection)
*3 Fuel Injector Assembly (for Port Injection) *4 Fuel Injector Assembly (for Direct Injection)
*5 Fuel Delivery Pipe Sub-assembly (for Direct Injection) *6 Fuel Pressure Sensor
*7 Fuel Tank Assembly *8

Fuel Suction Tube with Pump and Gauge Assembly


  • Fuel Pump Assembly (for Low Pressure)

  • Fuel Filter Assembly

  • Fuel Pressure Regulator Assembly

  • Fuel Sender Gauge Assembly

  • Jet Pump
*9

Fuel Tank Vent Tube with Sender Gauge Assembly


  • Charcoal Canister Sub-assembly

  • Fuel Sender Gauge Assembly

 - -
