AIRBAG SYSTEM

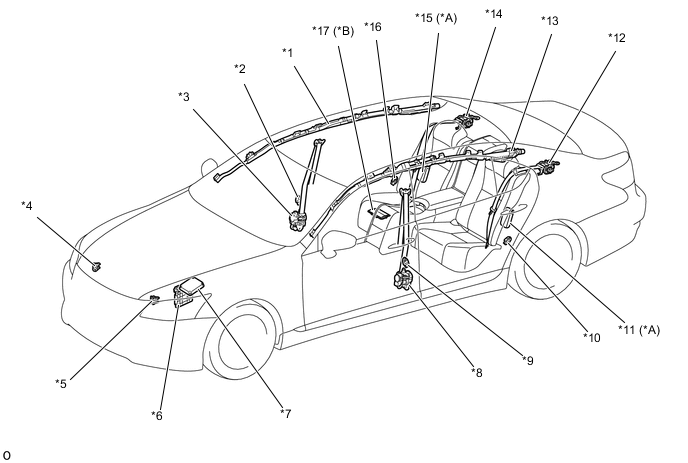

| *A | Models with SRS Rear Seat Airbag | *B | Models with SRS Rear Seat Cushion Airbag |
| *1 | Curtain Shield Airbag Assembly RH | *2 | Side Airbag Sensor Assembly RH |
| *3 | Front Seat Outer Belt Assembly RH | *4 | Front Airbag Sensor RH |
| *5 | Front Airbag Sensor RH | *6 | ECM |
| *7 | Hybrid Vehicle Control ECU | *8 | Front Seat Outer Belt Assembly LH |
| *9 | Side Airbag Sensor Assembly LH | *10 | Rear Airbag Sensor LH |
| *11 | Rear Seat Airbag Assembly LH | *12 | Rear Seat 3 Point Type Outer Belt Assembly LH |
| *13 | Curtain Shield Airbag Assembly LH | *14 | Rear Seat 3 Point Type Outer Belt Assembly RH |
| *15 | Rear Seat Airbag Assembly RH | *16 | Rear Airbag Sensor RH |
| *17 | Rear Seat Cushion Airbag | - | - |

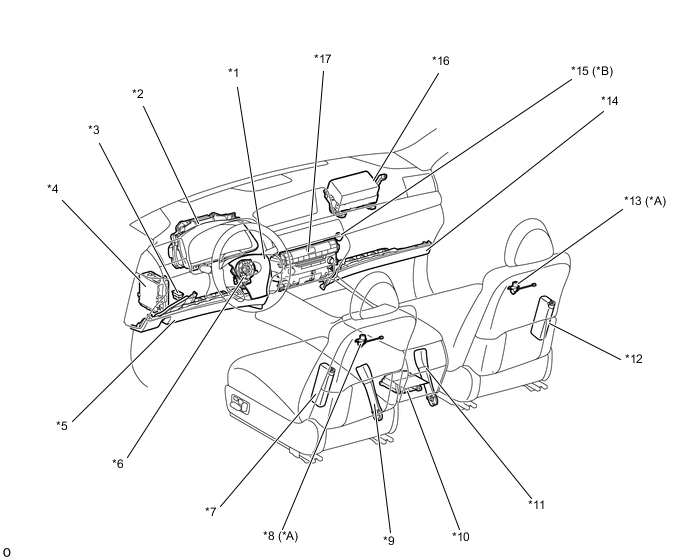

| *A | Models with Active Headrest System | *B | Models with Airbag Cut Off Switch Cylinder Sub-assembly |
| *1 | Horn Button Assembly | *2 | Combination Meter Assembly |
| *3 | DLC3 | *4 | Main Body ECU (Driver Side Junction Block) |
| *5 | Lower No. 1 Instrument Panel Airbag Assembly | *6 | Spiral Cable Assembly |
| *7 | Front Seat Airbag Assembly LH | *8 | Active Headrest Inflator LH |
| *9 | Front Seat Outer Belt Assembly LH | *10 | Center Airbag Sensor Assembly |
| *11 | Front Seat Outer Belt Assembly RH | *12 | Front Seat Airbag Assembly RH |
| *13 | Active Headrest Inflator RH | *14 | Lower No. 2 Instrument Panel Airbag Assembly |
| *15 | Airbag Cut Off Switch Cylinder Sub-assembly | *16 | Instrument Panel Passenger without Door Airbag Assembly |
| *17 | Multi-media Module Receiver Assembly - AIRBAG ON/OFF Indicator Lights |
- | - |
