THEFT DETERRENT

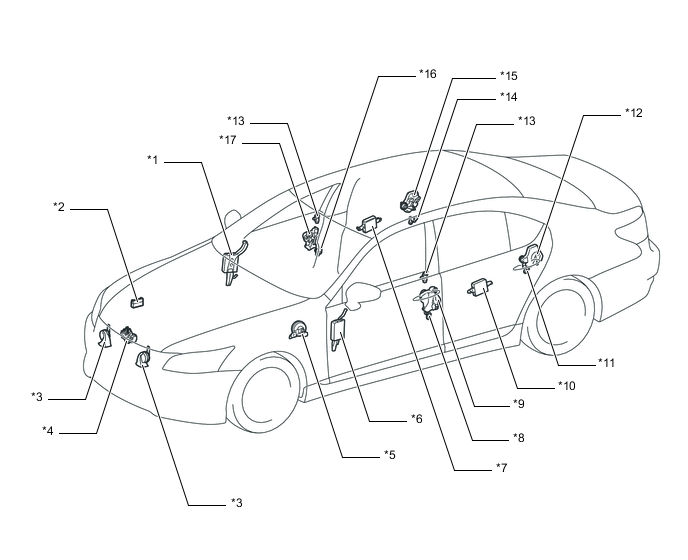

| *1 | Front Multiplex Network Door ECU RH | *2 | Front Controller (Multiplex Network Front Light ECU) |
| *3 | Horn Assembly | *4 | Engine Hood Courtesy Switch |
| *5 | Security Horn Assembly | *6 | Front Multiplex Network Door ECU LH |
| *7 | Rear Multiplex Network Door ECU RH | *8 | Front Door Courtesy Light Switch Assembly LH |
| *9 | Front Door Lock Assembly LH | *10 | Rear Multiplex Network Door ECU LH |
| *11 | Rear Door Courtesy Light Switch Assembly LH | *12 | Rear Door Lock Assembly LH |
| *13 | Security Indicator Light | *14 | Rear Door Courtesy Light Switch Assembly RH |
| *15 | Rear Door Lock Assembly RH | *16 | Front Door Courtesy Light Switch Assembly RH |
| *17 | Front Door Lock Assembly RH | - | - |
| *A | Models with Theft Warning Radar Sensor Assembly | *B | Models with Power Trunk Lid System |
| *C | Models without Power Trunk Lid System | *D | Models with Tilt Sensor |
| *E | Models with Theft Warning Siren Assembly | - | - |
| *1 | Map Light Assembly - Theft Warning Radar Sensor Assembly - Theft Warning Radar Sensor Cancel Switch |
*2 | Rear J/B ECU (Luggage Room Junction Block Assembly) |
| *3 | Luggage Door Closer Assembly | *4 | Luggage Closer Motor Assembly |
| *5 | Main Body ECU (Driver Side Junction Block) | *6 | Yawrate Sensor - Tilt Sensor |
| *7 | Certification ECU (Smart Key ECU Assembly) | *8 | Theft Warning Siren Assembly (Self-power Siren) |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |
